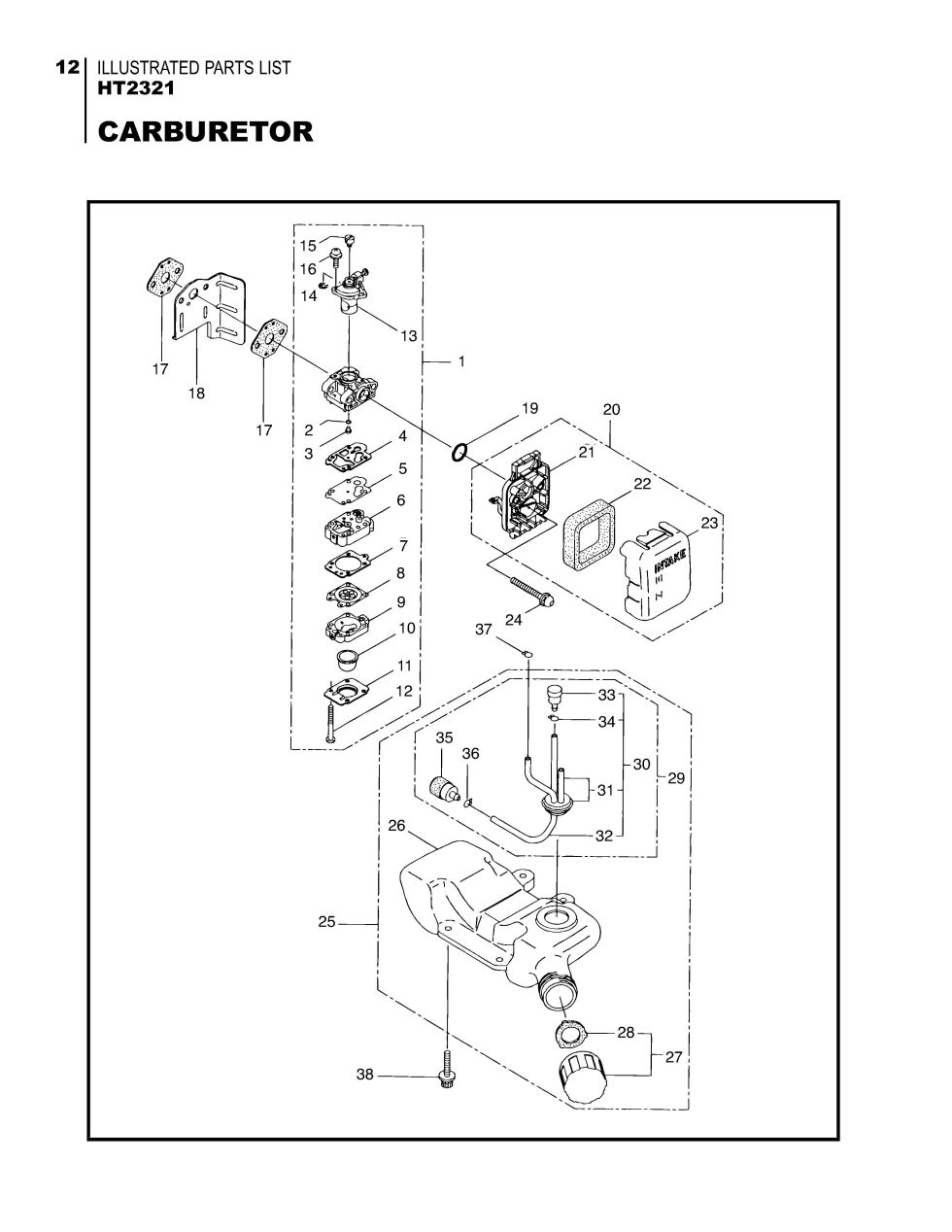

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2321. You have selected the Carburetor diagram for the Maruyama HT2321 Hedge Trimmers. Below you will find an interactive part diagram for the HT2321 Carburetor. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2321 parts not shown in this diagram you may select from one of the other HT2321 part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 268680 | 268680 - CARBURETOR ASSY |
$84.99
|
|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3 | 268953 | 268953 - MAIN JET #34.5 |
$24.99
|
|
| 4 | 262995 | 262995 - GASKET |
$13.99
|
|
| 5 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 6 | 268499 | 268499 - PUMP BODY |
$47.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 268501 | 268501 - USE: 283905 |
$11.99
|
|
| 9 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 10 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 11 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 12 | 262996 | 262996 - SCREW |
$2.99
|
|
| 13 | 264681 | 264681 - THROTTLE VALVE ASSY |
$36.99
|
|
| 14 | 261876 | 261876 - E-RING |
$2.99
|
|
| 15 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 16 | 264682 | 264682 - SCREW |
$5.99
|
|
| 17 | 261864 | 261864 - GASKET |
$2.99
|
|
| 18 | 268951 | 268951 - BAFFLE PLATE |
$8.99
|
|
| 19 | 264691 | 264691 - O-RING |
$2.99
|
|
| 20 | 266420 |
266420 - AIR FILTER ASSY. (obsolete) use part #277926 |
$16.99
|
|
| 21 | 266433 | 266433 - CASE ASSY |
$21.99
|
|
| 22 | 264695 | 264695 - FILTER |
$12.99
|
|
| 23 | 264709 |
264709 - CLEANER COVER (obsolete) use part #277554 |
$17.99
|
|
| 24 | 264016 | 264016 - CAP SCREW M5X60 |
$2.99
|
|
| 25 | 268683 | 268683 - FUEL TANK ASSY |
$48.99
|
|
| 26 | 268579 | 268579 - FUEL TANK |
$33.99
|
|
| 27 | 261584 | 261584 - FUEL TANK CAP ASSY |
$15.99
|
|
| 28 | 261105 | 261105 - PACKING |
$2.99
|
|
| 29 | 268062 | 268062 - FUEL PIPE PICK-UP AS |
$32.99
|
|
| 30 | 268185 |
268185 - FUEL PIPE ASSY (obsolete) use part #282539 |
$34.99
|
|
| 31 | 268497 | 268497 - FUEL PIPE & GROMMET |
$23.99
|
|
| 32 | 262649 | 262649 - FUEL PIPE |
$2.99
|
|
| 33 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 34 | 261117 | 261117 - CLIP |
$2.99
|
|
| 38 | 268940 | 268940 - SCREW |
$2.99
|
