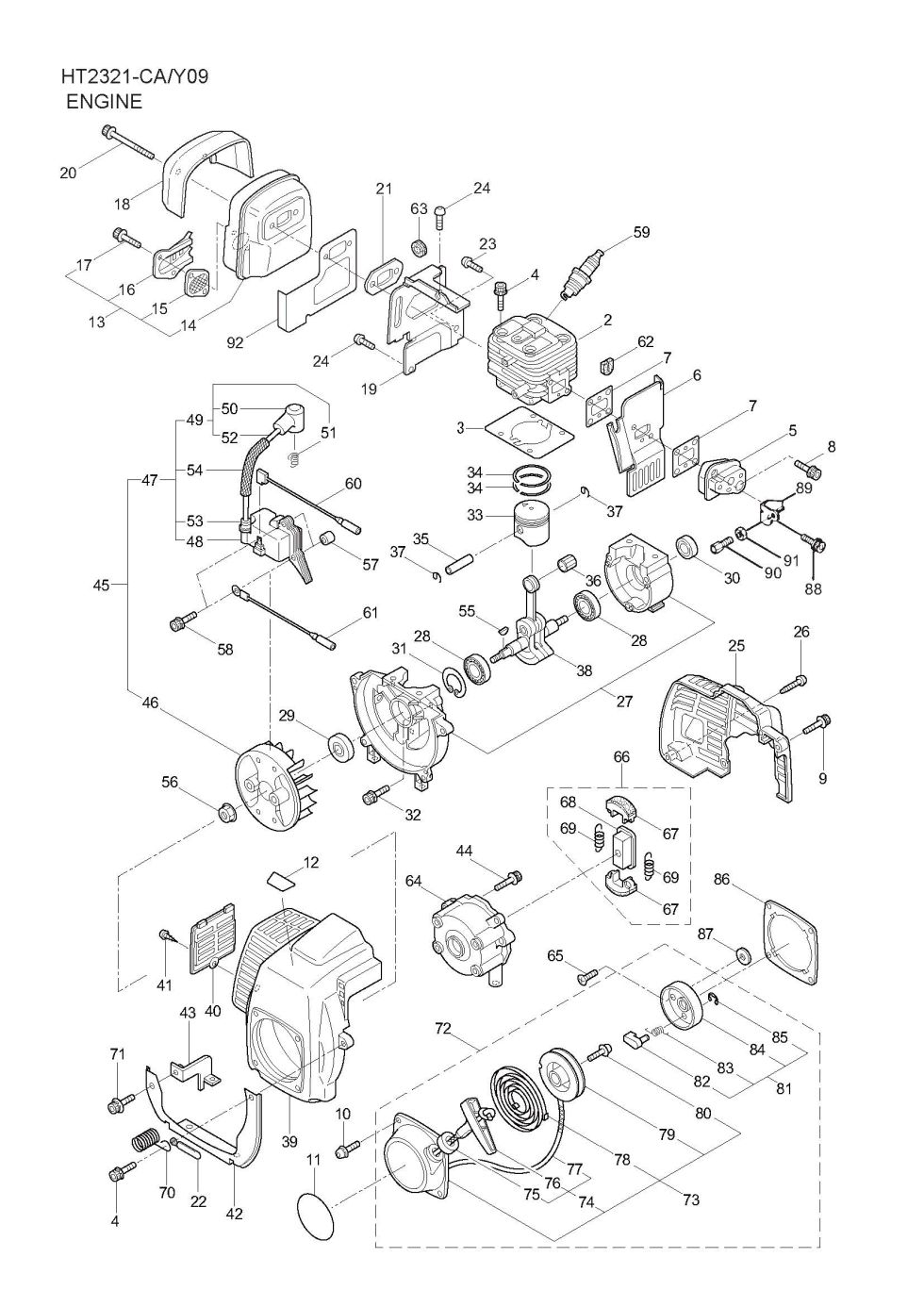

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2321-CA. You have selected the Engine diagram for the Maruyama HT2321-CA Hedge Trimmers. Below you will find an interactive part diagram for the HT2321-CA Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2321-CA parts not shown in this diagram you may select from one of the other HT2321-CA part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
3 282339 282339 - GASKET
$2.99
4 261250 261250 - BOLT M5X20
$2.99
5 267924 267924 - INSULATOR BLOCK
$19.99
6 268014 268014 - AIR DUCT
$14.99
7 261171 261171 - GASKET
$2.99
8 265924 265924 - CAP SCREW 5X25
$2.99
9 265107 265107 - BOLT
$2.99
10 264807 264807 - CAP SCREW M5X16
$2.99
12 282558 282558 - LABEL
$2.99
13 268016 268016 - MUFFLER ASSY
$99.99
14 268017 268017 - MUFFLER
$73.99
15 267056 267056 - SPARK ARRESTER
$7.99
16 268171 268171 - MUFFLER TAIL
$11.99
18 268461 268461 - HOLDER
$7.99
19 285650 285650 - PLATE
$19.99
20 266402 266402 - CAP SCREW
$5.99
21 268019 268019 - GASKET
$5.99
22 264588 264588 - CLAMP
$2.99
24 268195 268195 - USE: 285189
$2.99
25 268580 268580 - CYLINDER COVER
$21.99
26 266000 266000 - TAPPING SCREW
$2.99
27 268576 268576 - CRANKCASE
$60.99
28 280488 280488 - USE: 261491
$13.99
29 261492 261492 - OIL SEAL
$2.99
30 261386 261386 - OIL SEAL
$2.99
31 055185 055185 - SNAP RING
$2.99
32 261246 261246 - CAP SCREW M5X25
$2.99
33 268032 268032 - USE: 283379
$45.99
34 282177 282177 - PISTON RING
$16.99
35 261036 261036 - PISTON PIN
$16.99
36 263957 263957 - BEARING NEEDLE
$21.99
37 261576 261576 - CIRCLIP
$2.99
38 268585 268585 - CRANKSHAFT/CONN. ROD
$85.99
39 268474 268474 - FAN COVER
$30.99
40 268388 268388 - COVER
$11.99
41 268390 268390 - SCREW
$2.99
42 268590 268590 - PLATE
$13.99
43 268591 268591 - STAY
$8.99
44 261607 261607 - BOLT M5X16
$2.99
45 268038 268038 - NLA MAGNETO ASSY (NO
$93.99
46 268039 268039 - ROTOR/FAN
$46.99
47 268041 268041 - NLA IGNITION COIL AS (obsolete)
use part #287278
$50.99
48 268040 268040 - NLA CAN USE ASSY 287
$65.99
49 268042 268042 - SPARK PLUG WIRE ASSY
$30.99
50 261074 261074 - PLUG CAP
$13.99
51 261075 261075 - CONNECTOR
$2.99
52 268043 268043 - SPARK PLUG WIRE
$2.99
53 261072 261072 - CAP
$2.99
54 268584 268584 - COIL WIRE INSULATOR
$2.99
55 261076 261076 - WOODRUFF KEY
$2.99
56 261417 261417 - ROTOR NUT
$8.99
57 280381 280381 - SPACER
$2.99
58 261256 261256 - BOLT M4X25
$2.99
59 261200 261200 - SPARK PLUG
$20.99
60 261772 261772 - LEAD
$2.99
61 268044 268044 - LEAD
$5.99
62 261202 261202 - GROMMET
$2.99
63 268036 268036 - GROMMET
$2.99
64 268581 268581 - CLUTCH CASE
$21.99
65 264535 264535 - SCREW(M6X20)
$2.99
66 280404 280404 - CLUTCH ASSY
$36.99
67 280568 280568 - CLUTCH SHOE
$18.99
68 280569 280569 - CLUTCH BOSS
$13.99
69 280570 280570 - SPRING
$5.99
70 268592 268592 - CLAMP
$5.99
71 268940 268940 - SCREW
$2.99
72 268668 268668 - RECOIL STARTER ASSY
$27.99
73 268669 268669 - STARTER ASSY
$33.99
74 268813 268813 - ROPE ASSY
$20.99
75 268670 268670 - DAMPER
$2.99
76 267219 267219 - STARTER GRIP
$2.99
77 281817 281817 - STARTER ROPE
$5.99
78 261622 261622 - SPIRAL SPRING
$19.99
79 261621 261621 - REEL
$14.99
80 262922 262922 - SCREW
$2.99
81 264085 264085 - STARTER PAWL ASSY
$17.99
82 261630 261630 - PAWL
$10.99
83 261631 261631 - RETURN SPRING
$2.99
84 264086 264086 - PAWL CASE
$18.99
85 020299 020299 - E-SHAPED SNAP RING
$2.99
86 268671 268671 - PLATE
$5.99
87 261189 261189 - WASHER
$2.99
88 265925 265925 - CAP SCREW M5X25
$2.99
89 268593 268593 - STAY
$8.99
90 264736 264736 - ADAPTER
$10.99
91 261878 261878 - NUT
$2.99
92 285482 285482 - GASKET
$6.99
