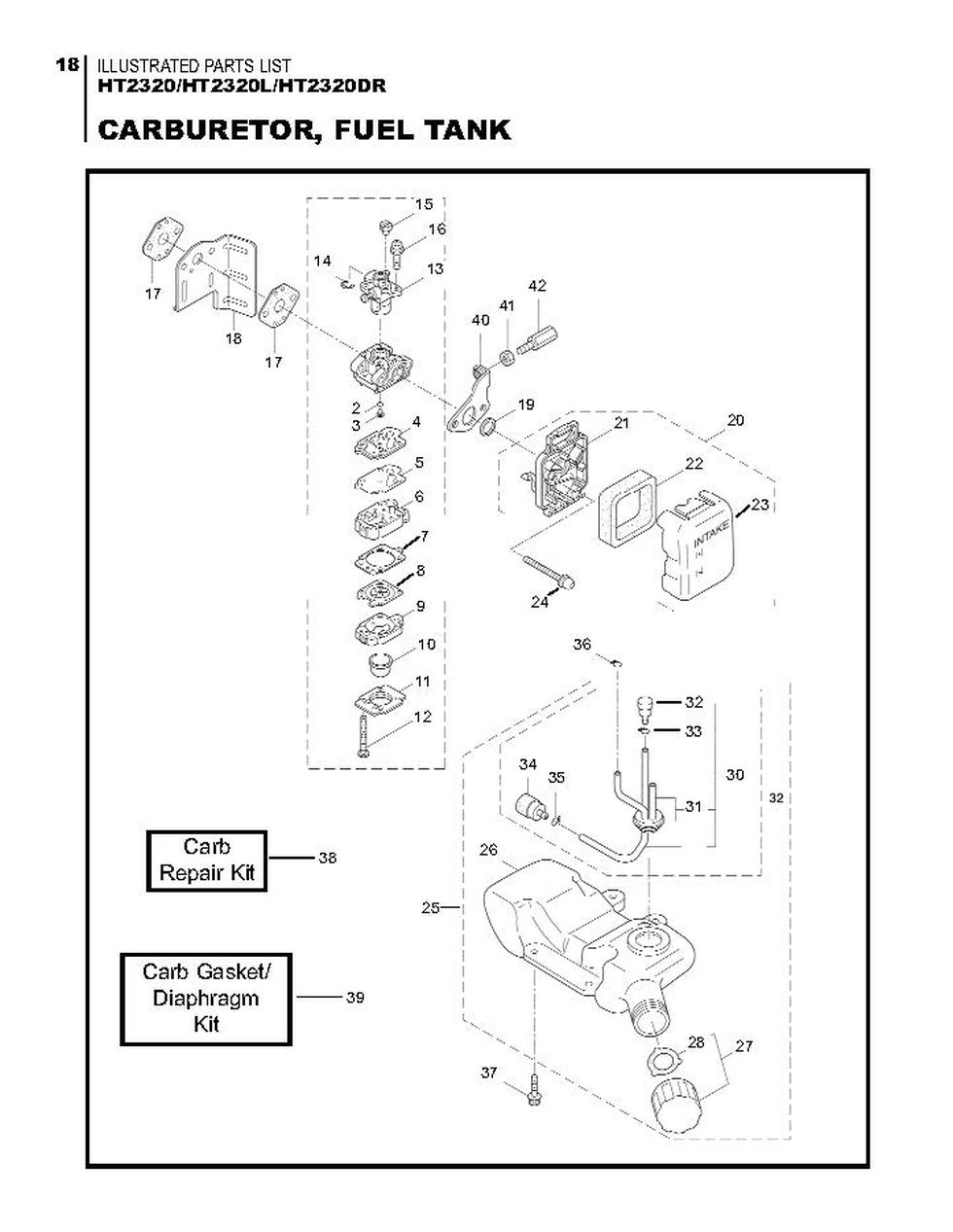

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2320, HT2320L, HT2320DR. You have selected the Carburetor and Fuel Tank diagram for the Maruyama HT2320, HT2320L, HT2320DR Hedge Trimmers. Below you will find an interactive part diagram for the HT2320, HT2320L, HT2320DR Carburetor and Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2320, HT2320L, HT2320DR parts not shown in this diagram you may select from one of the other HT2320, HT2320L, HT2320DR part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1(a) | 268680 | 268680 - CARBURETOR ASSY |
$84.99
|
|
| 1(b)(HT2320DR) | 269056 | 269056 - CARBURETOR ASSY. |
$61.99
|
|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3 | 268953 | 268953 - MAIN JET #34.5 |
$24.99
|
|
| 4 | 262995 | 262995 - GASKET |
$13.99
|
|
| 5 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 6 | 268499 | 268499 - PUMP BODY |
$47.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 268501 | 268501 - USE: 283905 |
$11.99
|
|
| 9 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 10 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 11 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 12 | 262996 | 262996 - SCREW |
$2.99
|
|
| 13 | 264681 | 264681 - THROTTLE VALVE ASSY |
$36.99
|
|
| 14 | 261876 | 261876 - E-RING |
$2.99
|
|
| 15 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 16 | 264682 | 264682 - SCREW |
$5.99
|
|
| 17 | 261864 | 261864 - GASKET |
$2.99
|
|
| 18 | 268951 | 268951 - BAFFLE PLATE |
$8.99
|
|
| 19(b)(HT2320DR) | 268963 | 268963 - GASKET |
$2.99
|
|
| 20 | 266420 |
266420 - AIR FILTER ASSY. (obsolete) use part #277926 |
$16.99
|
|
| 21 | 266433 | 266433 - CASE ASSY |
$21.99
|
|
| 22 | 264695 | 264695 - FILTER |
$12.99
|
|
| 23 | 264709 |
264709 - CLEANER COVER (obsolete) use part #277554 |
$17.99
|
|
| 24 | 264016 | 264016 - CAP SCREW M5X60 |
$2.99
|
|
| 25 | 268683 | 268683 - FUEL TANK ASSY |
$48.99
|
|
| 26 | 268579 | 268579 - FUEL TANK |
$33.99
|
|
| 27 | 261584 | 261584 - FUEL TANK CAP ASSY |
$15.99
|
|
| 28 | 261105 | 261105 - PACKING |
$2.99
|
|
| 29 | 268062 | 268062 - FUEL PIPE PICK-UP AS |
$32.99
|
|
| 30 | 261117 | 261117 - CLIP |
$2.99
|
|
| 31 | 268497 | 268497 - FUEL PIPE & GROMMET |
$23.99
|
|
| 32 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 37 | 268940 | 268940 - SCREW |
$2.99
|
|
| 38 | 840295 | 840295 - CARB. REPAIR KIT WYL |
$35.99
|
|
| 39 | 840298 | 840298 - CARB. GASKET/DIAPHRA |
$19.99
|
|
| 40 | 268535 | 268535 - BRACKET |
$8.99
|
|
| 41 | 261878 | 261878 - NUT |
$2.99
|
|
| 42 | 265410 | 265410 - ADAPTER |
$2.99
|
