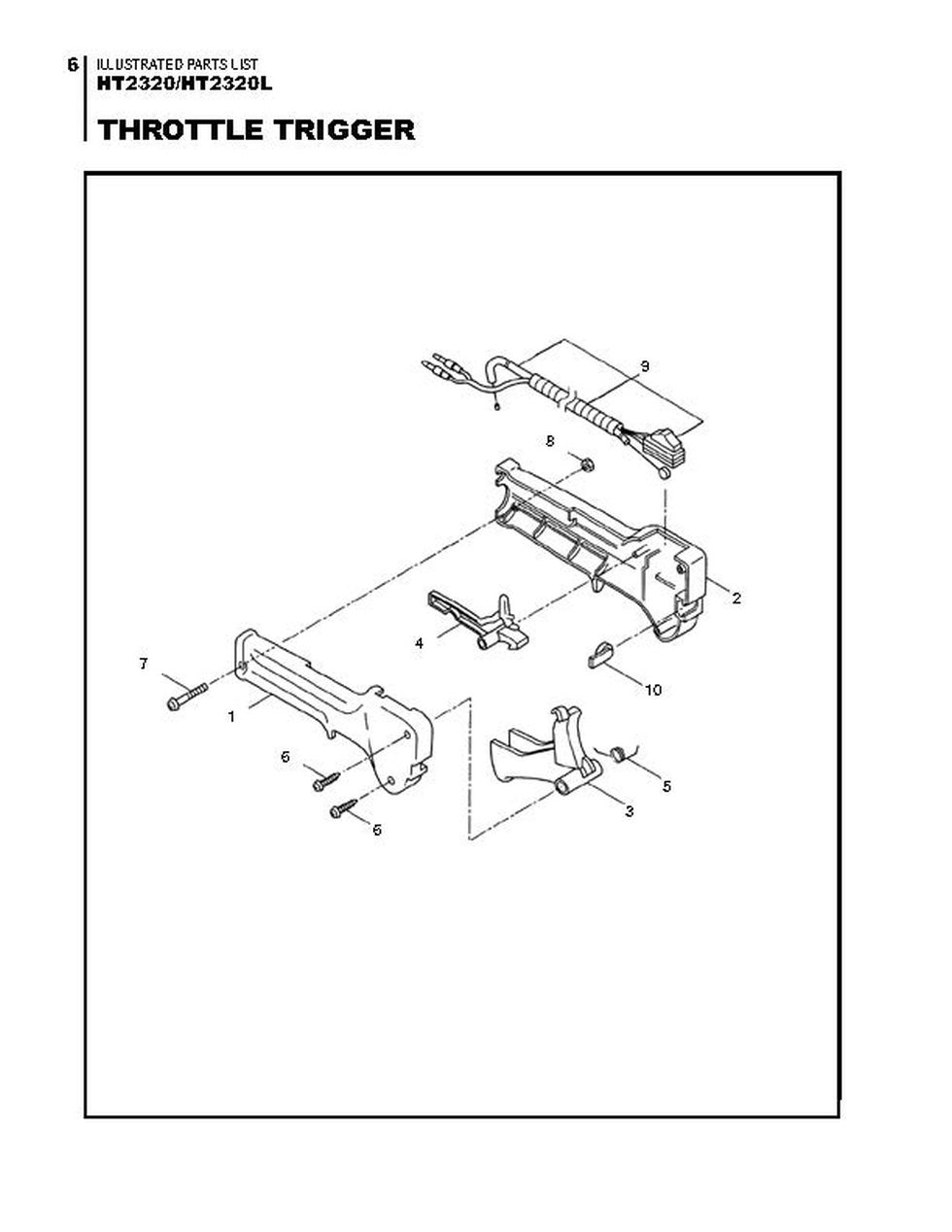

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2320, HT2320L, HT2320D(L)(R). You have selected the Throttle Trigger diagram for the Maruyama HT2320, HT2320L, HT2320D(L)(R) Hedge Trimmers. Below you will find an interactive part diagram for the HT2320, HT2320L, HT2320D(L)(R) Throttle Trigger. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2320, HT2320L, HT2320D(L)(R) parts not shown in this diagram you may select from one of the other HT2320, HT2320L, HT2320D(L)(R) part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 270730 | 270730 - STAY ( R ) |
$19.99
|
|
| 2 | 270731 | 270731 - STAY ( L ) |
$20.99
|
|
| 3 | 270732 | 270732 - THROTTLE LEVER |
$14.99
|
|
| 4 | 270733 | 270733 - STOP LEVER |
$9.99
|
|
| 5 | 270734 | 270734 - SPRING |
$2.99
|
|
| 6 | 270735 | 270735 - SCREW |
$2.99
|
|
| 7 | 270736 | 270736 - SCREW |
$2.99
|
|
| 8 | 270737 | 270737 - NUT |
$2.99
|
|
| 9 | 270738 | 270738 - THROTTLE CABLE/KILL |
$71.99
|
|
| 10 | 270742 | 270742 - TOP |
$2.99
|
