Main Body (HT2300, HT2300L)

Main Body (HT2300, HT2300L)

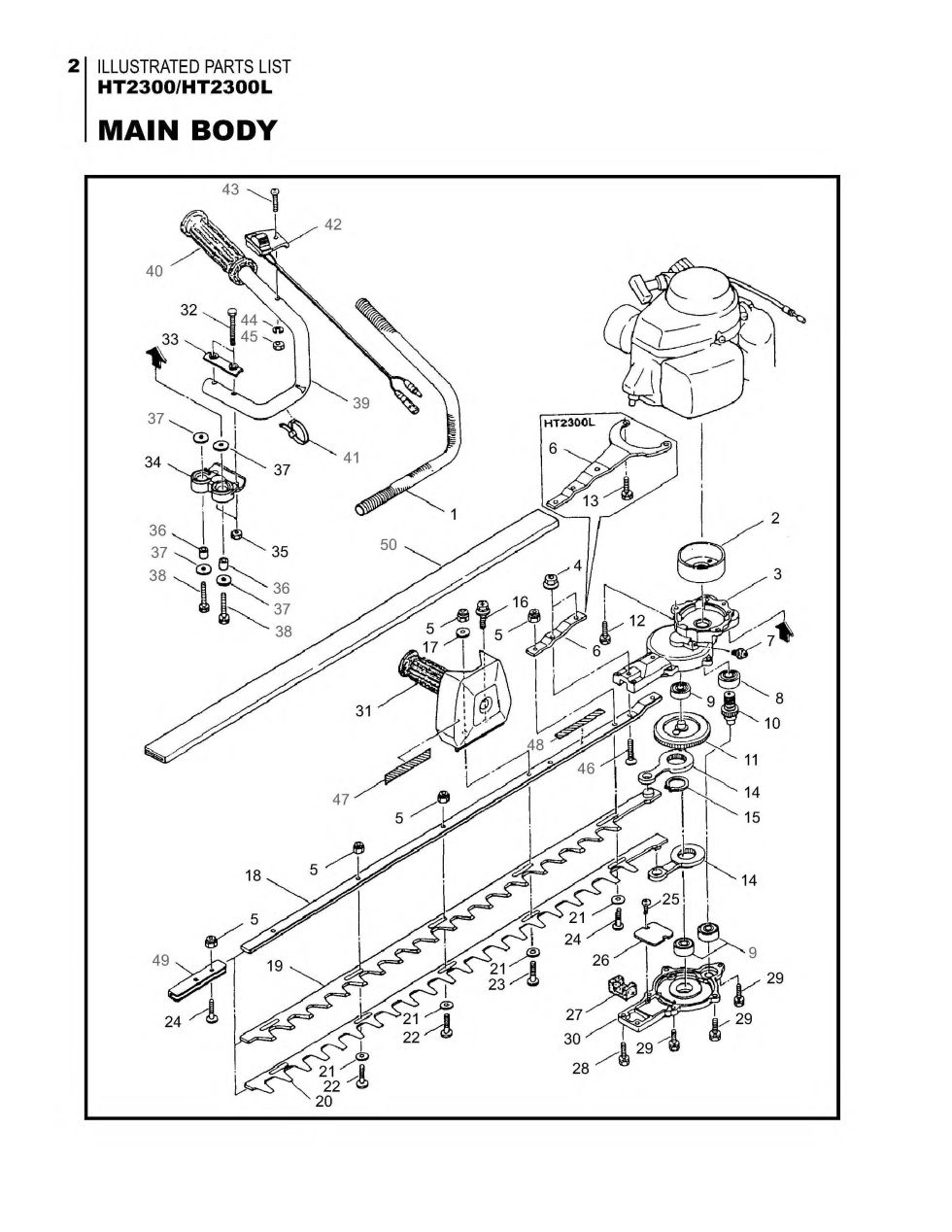

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2300, HT2300L, HT2300D(L)(R). You have selected the Main Body (HT2300, HT2300L) diagram for the Maruyama HT2300, HT2300L, HT2300D(L)(R) Hedge Trimmers. Below you will find an interactive part diagram for the HT2300, HT2300L, HT2300D(L)(R) Main Body (HT2300, HT2300L). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2300, HT2300L, HT2300D(L)(R) parts not shown in this diagram you may select from one of the other HT2300, HT2300L, HT2300D(L)(R) part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 580812 580812 - CORRUGATED TUBE
$15.99
2 270021 270021 - DRUM
$45.99
3 591444 591444 - UPPER CASE
$135.99
4 997244 997244 - USE: 127226
$2.99
5 991941 991941 - USE: 290560
$2.99
6(HT2300) 991973 991973 - REINFORCING PLATE
$22.99
6(HT2300L) 587304 587304 - REINFORCING PLATE
$40.99
7 991937 991937 - NIPPLE, GREASE
$6.99
8 580767 580767 - BALL BEARING (#6001-
$29.99
9 580768 580768 - BALL BEARING
$33.99
10 584666 584666 - PINION GEAR
$88.99
11 591443 591443 - CRANK COMPLETE
$148.99
12 270030 270030 - BOLT(M6X20)
$2.99
13 270031 270031 - BOLT
$2.99
14 997282 997282 - USE: 271466
$62.99
15 580777 580777 - SNAP RING
$7.99
16 270121 270121 - SCREW
$2.99
17 991964 991964 - WASHER, PLAIN
$2.99
18(HT2300) 577131 577131 - GUIDE PLATE-30
$67.99
18(HT2300L) 580815 580815 - GUIDE BAR 40
$61.99
19(HT2300) 991916 991916 - UPPER BLADE 30 INCH
$72.99
19(HT2300L) 591445 591445 - UPPER BLADE 40 INCH
$105.99
20(HT2300L) 591446 591446 - LOWER BLADE 40 INCH
$105.99
21 991913 991913 - WASHER
$2.99
22 991914 991914 - SCREW
$10.99
23(HT2300) 991917 991917 - LOWER BLADE 30 INCH
$75.99
23 991918 991918 - SCREW FOR FITTING BL
$10.99
24 991912 991912 - SCREW FOR FITTING BL
$5.99
25 991924 991924 - SCREW
$2.99
26 991919 991919 - PLATE ROD SLIDE
$19.99
27 997286 997286 - FELT
$19.99
28 580790 580790 - HEX HEAD BOLT
$2.99
29 580791 580791 - HEX HEAD BOLT
$2.99
30 997288 997288 - LOWER CASE
$47.99
31 591463 591463 - RIGHT HANDLE ASSY
$62.99
32 580796 580796 - HEX HEAD BOLT
$2.99
33 577133 577133 - HANDLE FITTING
$9.99
34 577136 577136 - HANDLE BRACKET
$17.99
35 991938 991938 - HEXEGON NUT
$2.99
36 270028 270028 - COLLAR
$27.99
37 270027 270027 - WASHER
$2.99
39 591447 591447 - LEFT HANDLE
$46.99
40 577134 577134 - HANDLE RUBBER
$23.99
41 580808 580808 - CORD BAND
$2.99
42 270068 270068 - SWITCH ASSY
$42.99
43 991954 991954 - SCREW
$2.99
44 012501 012501 - SPRING WASHER
$2.99
46 991931 991931 - SCREW
$2.99
47 591449 591449 - NLA LABEL
$5.99
48 591450 591450 - LABEL
$5.99
49 591464 591464 - PLATE
$19.99
50(HT2300) 580782 580782 - BLADE COVER
$21.99
50(HT2300L) 270069 270069 - BLADE COVER
$40.99
