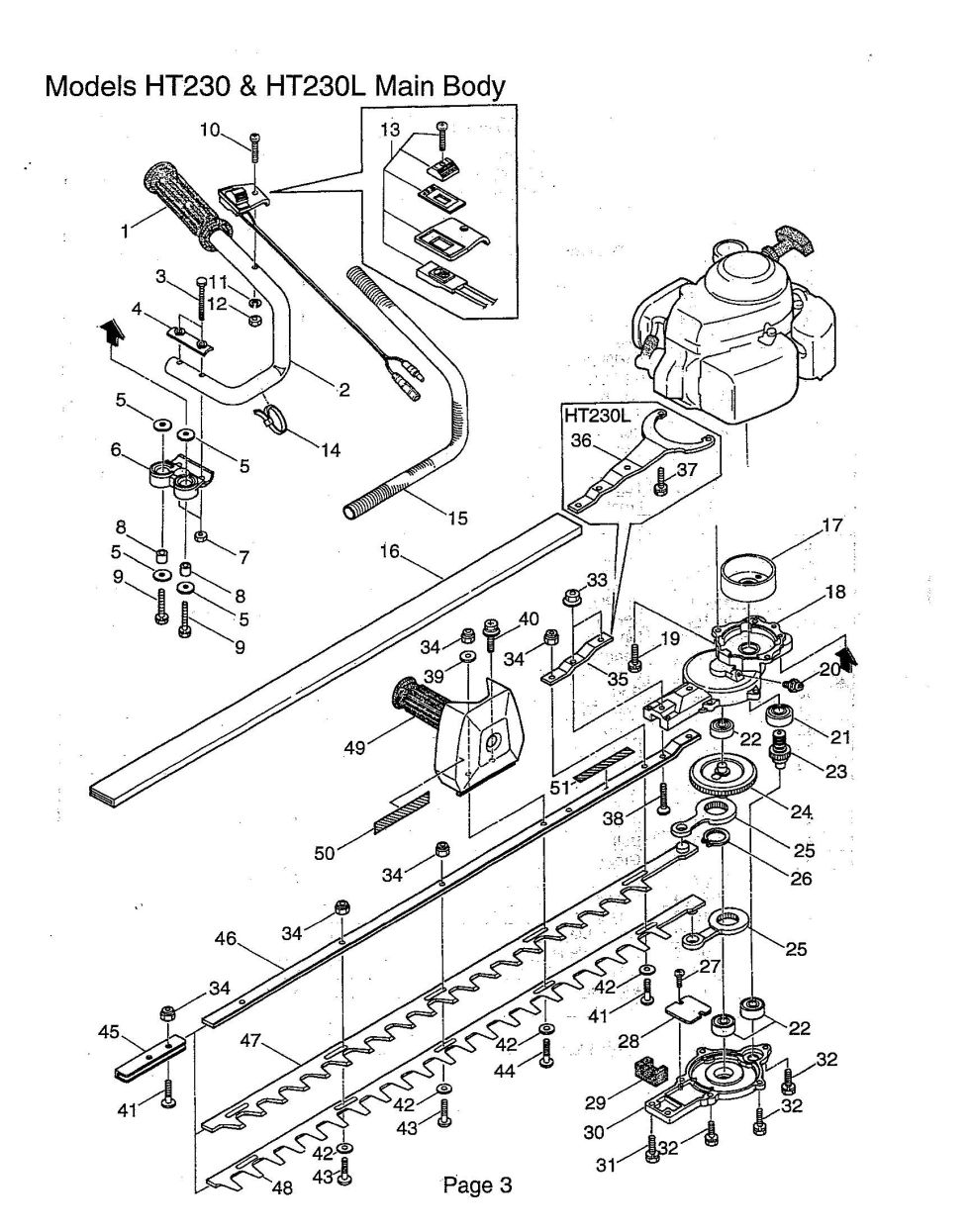

Main Body (HT230, HT230L)

Main Body (HT230, HT230L)

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT230, HT230D, HT230L. You have selected the Main Body (HT230, HT230L) diagram for the Maruyama HT230, HT230D, HT230L Hedge Trimmers. Below you will find an interactive part diagram for the HT230, HT230D, HT230L Main Body (HT230, HT230L). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT230, HT230D, HT230L parts not shown in this diagram you may select from one of the other HT230, HT230D, HT230L part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 577134 577134 - HANDLE RUBBER
$23.99
2 591447 591447 - LEFT HANDLE
$46.99
3 580796 580796 - HEX HEAD BOLT
$2.99
4 577133 577133 - HANDLE FITTING
$9.99
5 270027 270027 - WASHER
$2.99
6 577136 577136 - HANDLE BRACKET
$17.99
7 991938 991938 - HEXEGON NUT
$2.99
8 270028 270028 - COLLAR
$27.99
9 270031 270031 - BOLT
$2.99
10 991954 991954 - SCREW
$2.99
11 012501 012501 - SPRING WASHER
$2.99
13 270068 270068 - SWITCH ASSY
$42.99
14 580808 580808 - CORD BAND
$2.99
15 580812 580812 - CORRUGATED TUBE
$15.99
16(HT230) 580782 580782 - BLADE COVER
$21.99
16(HT230L) 580816 580816 - NLA BLADE COVER
$21.99
17 270021 270021 - DRUM
$45.99
18 591444 591444 - UPPER CASE
$135.99
19 270030 270030 - BOLT(M6X20)
$2.99
20 991937 991937 - NIPPLE, GREASE
$6.99
21 580767 580767 - BALL BEARING (#6001-
$29.99
22 580768 580768 - BALL BEARING
$33.99
23 270020 270020 - USE: 584666
$64.99
24 591443 591443 - CRANK COMPLETE
$148.99
25 997282 997282 - USE: 271466
$62.99
26 580777 580777 - SNAP RING
$7.99
27 991924 991924 - SCREW
$2.99
28 991919 991919 - PLATE ROD SLIDE
$19.99
29 997286 997286 - FELT
$19.99
30 997288 997288 - LOWER CASE
$47.99
31 580790 580790 - HEX HEAD BOLT
$2.99
32 580791 580791 - HEX HEAD BOLT
$2.99
33 997244 997244 - USE: 127226
$2.99
34 991941 991941 - USE: 290560
$2.99
35 991973 991973 - REINFORCING PLATE
$22.99
36 587304 587304 - REINFORCING PLATE
$40.99
38 991931 991931 - SCREW
$2.99
39 991964 991964 - WASHER, PLAIN
$2.99
40 580776 580776 - HEX HEAD BOLT
$2.99
41 991912 991912 - SCREW FOR FITTING BL
$5.99
42 991913 991913 - WASHER
$2.99
43 991914 991914 - SCREW
$10.99
44 991918 991918 - SCREW FOR FITTING BL
$10.99
45(HT230) 991911 991911 - PLATE
$24.99
45(HT230L) 591464 591464 - PLATE
$19.99
46(HT230) 577131 577131 - GUIDE PLATE-30
$67.99
46(HT230L) 580815 580815 - GUIDE BAR 40
$61.99
47(HT230) 991916 991916 - UPPER BLADE 30 INCH
$72.99
47(HT230L) 591445 591445 - UPPER BLADE 40 INCH
$105.99
48(HT230) 991917 991917 - LOWER BLADE 30 INCH
$75.99
48(HT230L) 591446 591446 - LOWER BLADE 40 INCH
$105.99
49 591463 591463 - RIGHT HANDLE ASSY
$62.99
50 591449 591449 - NLA LABEL
$5.99
51 591450 591450 - LABEL
$5.99
