Carburetor (HT2200)

Carburetor (HT2200)

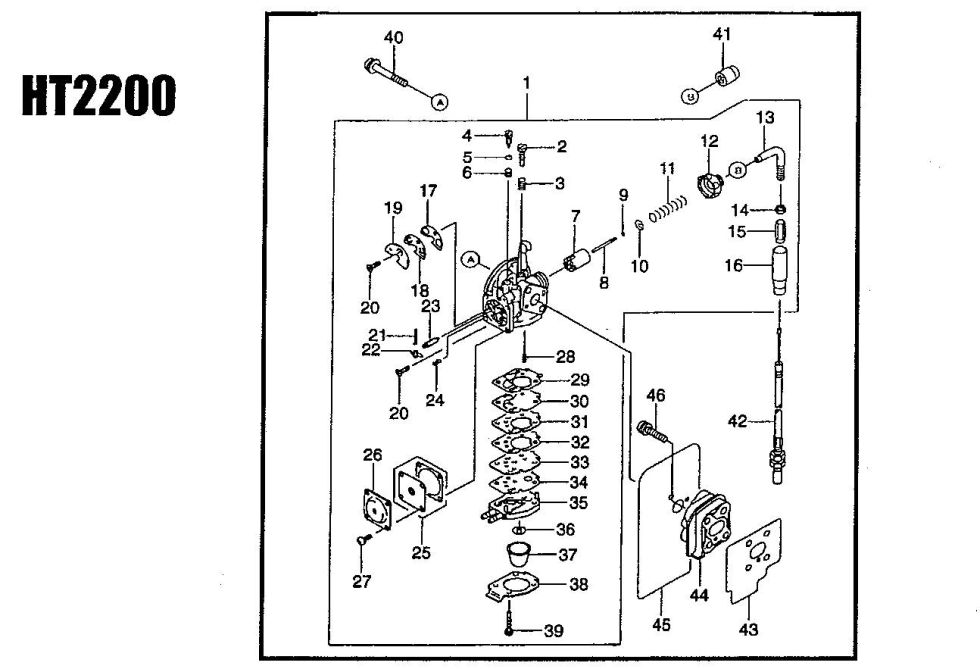

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2200, HT2210. You have selected the Carburetor (HT2200) diagram for the Maruyama HT2200, HT2210 Hedge Trimmers. Below you will find an interactive part diagram for the HT2200, HT2210 Carburetor (HT2200). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2200, HT2210 parts not shown in this diagram you may select from one of the other HT2200, HT2210 part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 624256 624256 - NLA CARBURETOR ASSY
$94.99
2 591552 591552 - THROTTLE STOP SCREW
$13.99
3 943192 943192 - NLA SPRING
$7.99
4 624388 624388 - NLA SCREW
$31.99
5 591568 591568 - O-RING
$8.99
6 594604 594604 - SPRING
$2.99
7 584655 584655 - NLA THROTTLE, MACHIN
$38.99
8 597374 597374 - JET NEEDLE
$27.99
9 591566 591566 - NLA SNAP RING
$2.99
10 591547 591547 - NLA VALVE RETAINER
$2.99
11 591570 591570 - NLA THROTTLE SPRING
$5.99
12 591545 591545 - NLA CAP
$6.99
13 591557 591557 - NLA PIPE
$30.99
14 591564 591564 - NUT
$2.99
15 591550 591550 - NLA CABLE ADJUSTER
$20.99
16 591544 591544 - NLA CAP
$19.99
17 597375 597375 - GASKET
$16.99
18 597376 597376 - CHECK VALVE
$30.99
19 597377 597377 - PLATE
$11.99
20 591560 591560 - SCREW
$2.99
21 591567 591567 - NLA PIN
$6.99
22 591554 591554 - FLOAT ARM
$23.99
23 594603 594603 - FLOAT VALVE
$30.99
24 591573 591573 - SPRING
$8.99
25 597378 597378 - NLA DIAPHRAGM
$23.99
26 591602 591602 - NLA CLUTCH ASSY
$50.99
27 591562 591562 - NLA SCREW
$2.99
28 572952 572952 - NLA SPRING
$2.99
29 597379 597379 - NLA GASKET
$7.99
30 597380 597380 - NLA DIAPHRAGM
$42.99
31 597381 597381 - NLA PLATE
$9.99
32 597382 597382 - NLA GASKET
$7.99
33 597383 597383 - NLA PLATE
$9.99
34 597384 597384 - NLA GASKET
$7.99
35 597385 597385 - COVER
$89.99
36 597386 597386 - CHECK VALVE
$19.99
37 597387 597387 - NLA PRIMING PUMP
$34.99
38 597388 597388 - PLATE
$15.99
39 597389 597389 - SCREW
$2.99
40 943463 943463 - SCREW
$2.99
41 591543 591543 - CAP
$6.99
42 622920 622920 - NLA THROTTLE CABLE
$29.99
43 591540 591540 - NLA INSULATOR GASKET
$6.99
44 591555 591555 - NLA INSULATOR
$32.99
45 624387 624387 - NLA GASKET
$11.99
46 577361 577361 - SCREW
$2.99
