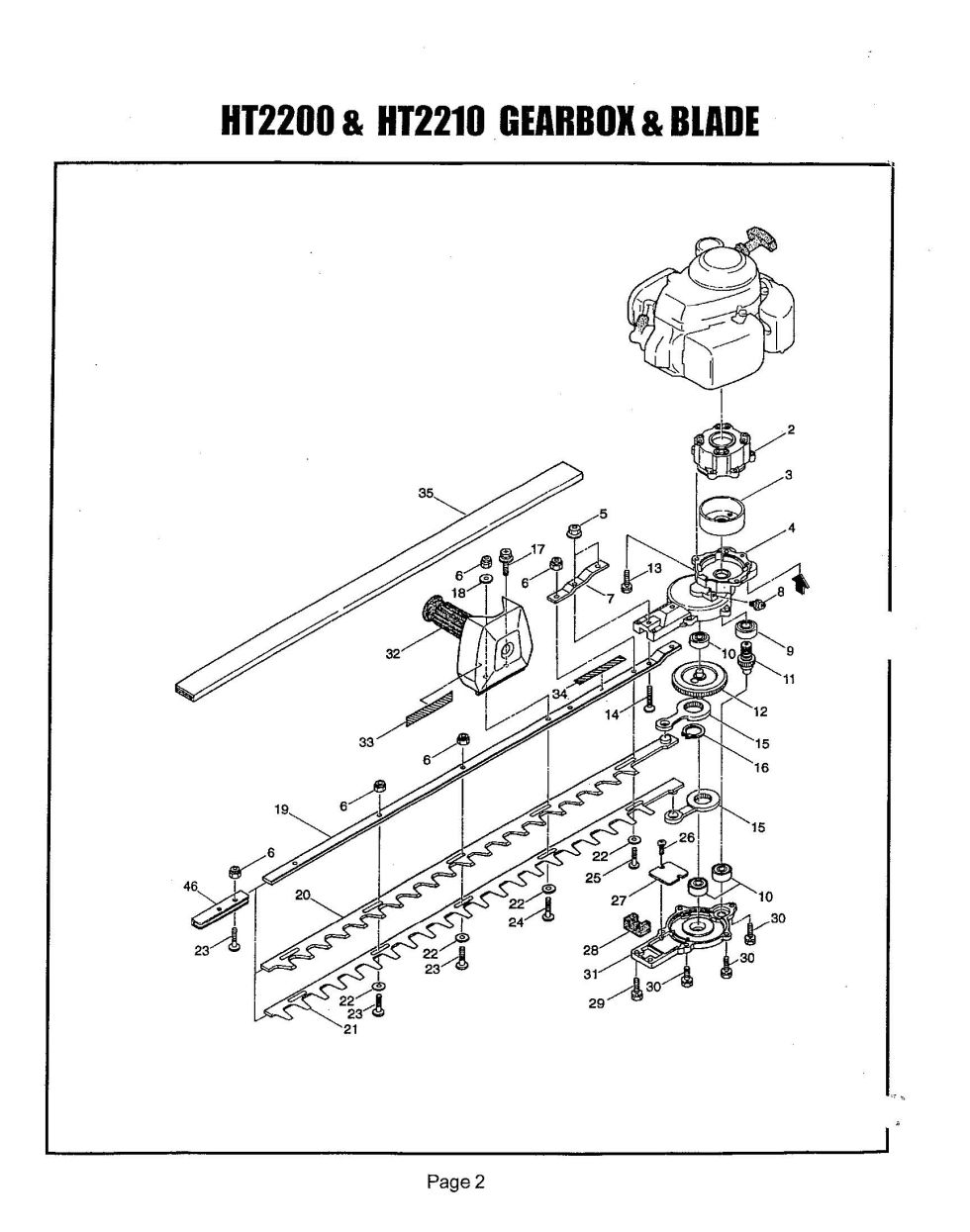

Gearbox and Blade

Gearbox and Blade

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2200, HT2210. You have selected the Gearbox and Blade diagram for the Maruyama HT2200, HT2210 Hedge Trimmers. Below you will find an interactive part diagram for the HT2200, HT2210 Gearbox and Blade. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2200, HT2210 parts not shown in this diagram you may select from one of the other HT2200, HT2210 part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
2 577127 577127 - NLA SPACER
$27.99
3 580761 580761 - DRUM
$28.99
4 591444 591444 - UPPER CASE
$135.99
5 997244 997244 - USE: 127226
$2.99
6 991941 991941 - USE: 290560
$2.99
7 991973 991973 - REINFORCING PLATE
$22.99
8 991937 991937 - NIPPLE, GREASE
$6.99
9 580767 580767 - BALL BEARING (#6001-
$29.99
10 580768 580768 - BALL BEARING
$33.99
11 580769 580769 - NLA GEAR (SMALL)
$47.99
12 591443 591443 - CRANK COMPLETE
$148.99
13 991971 991971 - BOLT (W/SW)
$2.99
14 991931 991931 - SCREW
$2.99
15 997282 997282 - USE: 271466
$62.99
16 580777 580777 - SNAP RING
$7.99
17 580776 580776 - HEX HEAD BOLT
$2.99
18 991964 991964 - WASHER, PLAIN
$2.99
19 577131 577131 - GUIDE PLATE-30
$67.99
20 991916 991916 - UPPER BLADE 30 INCH
$72.99
21 991917 991917 - LOWER BLADE 30 INCH
$75.99
22 991913 991913 - WASHER
$2.99
23 991914 991914 - SCREW
$10.99
24 991918 991918 - SCREW FOR FITTING BL
$10.99
25 991912 991912 - SCREW FOR FITTING BL
$5.99
26 991924 991924 - SCREW
$2.99
27 991919 991919 - PLATE ROD SLIDE
$19.99
28 997286 997286 - FELT
$19.99
29 580790 580790 - HEX HEAD BOLT
$2.99
30 580791 580791 - HEX HEAD BOLT
$2.99
31 997288 997288 - LOWER CASE
$47.99
32 591463 591463 - RIGHT HANDLE ASSY
$62.99
33 591449 591449 - NLA LABEL
$5.99
34 591450 591450 - LABEL
$5.99
35 580782 580782 - BLADE COVER
$21.99
