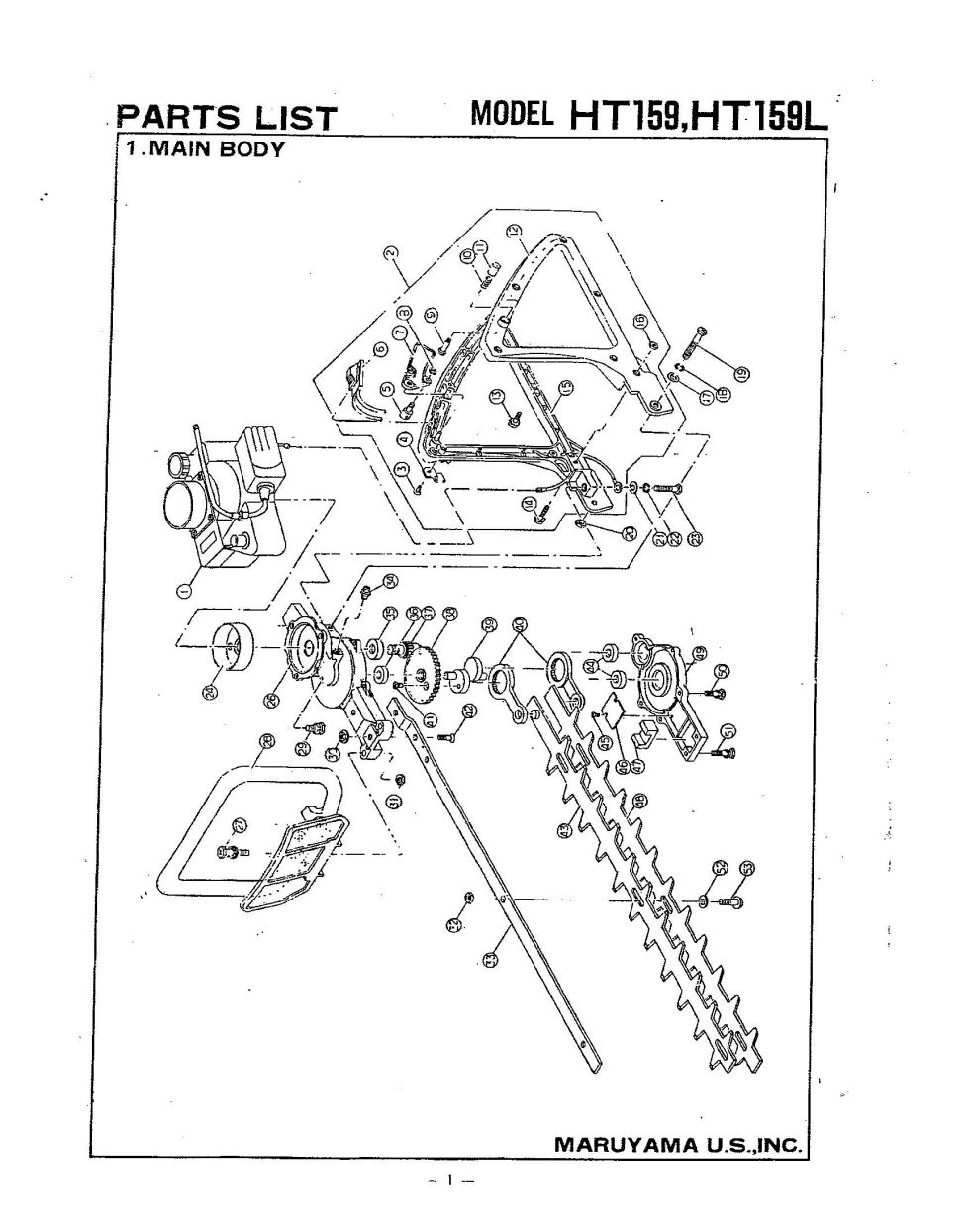

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT159, HT159L. You have selected the Main Body diagram for the Maruyama HT159, HT159L Hedge Trimmers. Below you will find an interactive part diagram for the HT159, HT159L Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT159, HT159L parts not shown in this diagram you may select from one of the other HT159, HT159L part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
2 997257 997257 - NLA REAR HANDLE ASSY
$72.99
3 997258 997258 - SCREW(M4X10)
$2.99
4 997259 997259 - CABLE HOLDER
$2.99
5 997260 997260 - SWIVEL
$24.99
6 997261 997261 - STOP SWITCH
$20.99
7 997262 997262 - THROTTLE LEVER
$13.99
8 997263 997263 - RING SNAP
$2.99
9 997264 997264 - PIN, LEVER
$16.99
10 997265 997265 - SPRING
$6.99
11 997266 997266 - FIXING KNOB
$8.99
12 997267 997267 - NS REAR HANDLE (L)
$18.99
13 997268 997268 - SCREW(M4X16)
$2.99
14 997269 997269 - SCREW(M4X30)
$2.99
15 997270 997270 - NS REAR HANDLE R
$20.99
16 997271 997271 - NLA HEX NUT(M4)
$2.99
19 581909 581909 - NLA BOLT
$2.99
20 997253 997253 - HEX NUT(M6)
$2.99
24 581911 581911 - NLA CLUTCH DRUM
$31.99
26 997274 997274 - NLA UPPER CASE
$75.99
28 997276 997276 - NLA FRONT HANDLE
$46.99
29 991971 991971 - BOLT (W/SW)
$2.99
30 997244 997244 - USE: 127226
$2.99
32 991941 991941 - USE: 290560
$2.99
33(HT159) 997277 997277 - NLA GUIDE PLATE-16
$70.99
33(HT159L) 581912 581912 - BLADE GUIDE - 24IN
$57.99
34 991937 991937 - NIPPLE, GREASE
$6.99
35 991933 991933 - USE: 14490
$9.99
36 580768 580768 - BALL BEARING
$33.99
37 997279 997279 - NLA PINION
$32.99
38 997280 997280 - NLA CRANK GEAR
$72.99
39 997281 997281 - CRANK
$131.99
40 997282 997282 - USE: 271466
$62.99
41 580770 580770 - SCREW
$2.99
42 997284 997284 - SCREW M5X16
$2.99
43(HT159) 997285 997285 - NLA UPPER BLADE 16 I
$40.99
43(HT159L) 581913 581913 - UPPER BLADE 24 INCH
$86.99
45 991924 991924 - SCREW
$2.99
46 991919 991919 - PLATE ROD SLIDE
$19.99
47 997286 997286 - FELT
$19.99
48(HT159) 997287 997287 - NLA LOWER BLADE 16 I
$40.99
48(HT159L) 581914 581914 - USE: 570688
$145.99
49 997288 997288 - LOWER CASE
$47.99
50 580791 580791 - HEX HEAD BOLT
$2.99
51 580790 580790 - HEX HEAD BOLT
$2.99
52 991913 991913 - WASHER
$2.99
53 991914 991914 - SCREW
$10.99
