Engine (Carburetor, Recoil Starter)

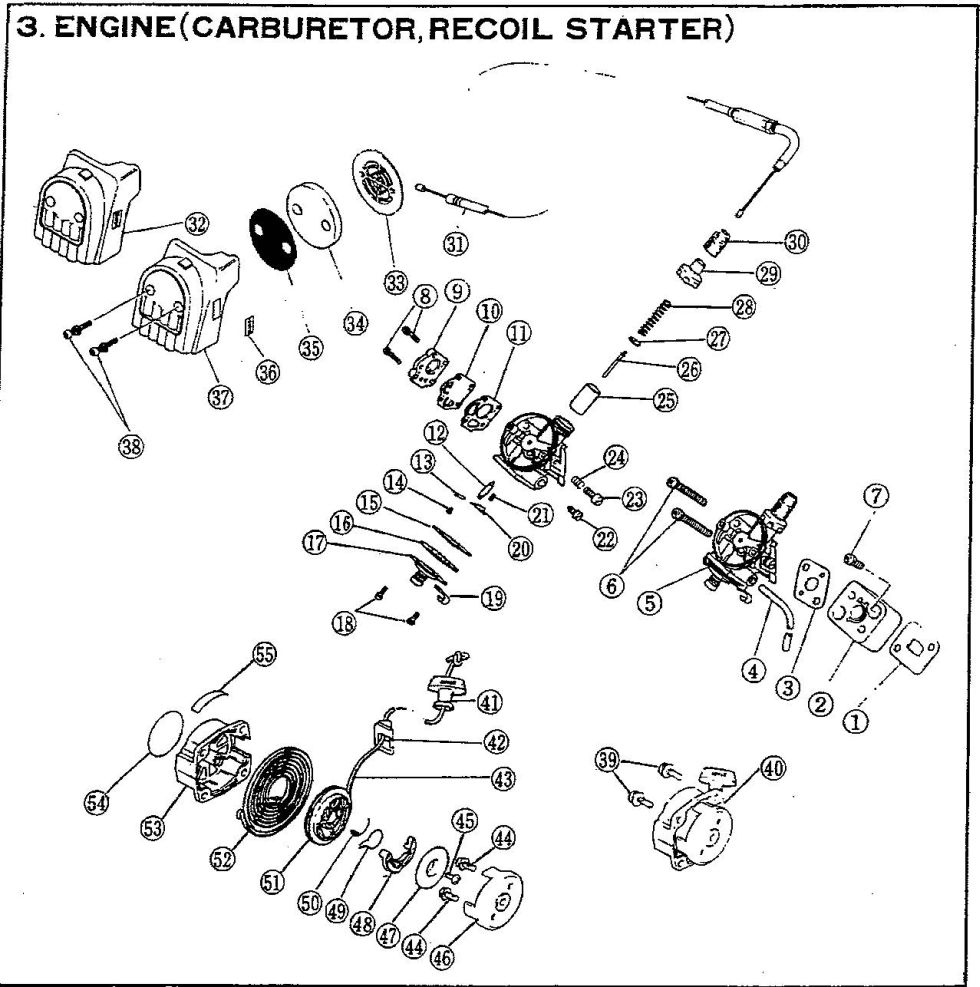

Engine (Carburetor, Recoil Starter)

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT159, HT159L. You have selected the Engine (Carburetor, Recoil Starter) diagram for the Maruyama HT159, HT159L Hedge Trimmers. Below you will find an interactive part diagram for the HT159, HT159L Engine (Carburetor, Recoil Starter). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT159, HT159L parts not shown in this diagram you may select from one of the other HT159, HT159L part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 997305 997305 - NLA CARBURETOR GASKE
$2.99
2 997306 997306 - INSULATOR
$31.99
3 997307 997307 - NLA CARBURETOR GASKE
$2.99
4 972815 972815 - USE: 971739
$2.99
5 997308 997308 - NLA CARBURETOR (NO S
$195.99
6 977534 977534 - NLA SCREW
$2.99
7 971817 971817 - NLA SCREW
$2.99
8 972887 972887 - SCREW
$2.99
9 972863 972863 - NLA PUMP COVER ASSY
$21.99
10 972864 972864 - USE: 990324 No Longer Available
Obsolete.
11 972865 972865 - USE: 990325
$2.99
12 972858 972858 - NLA FLOAT VALVE NEED
$27.99
13 972856 972856 - NLA FLOAT PIN
$11.99
14 972860 972860 - NLA FLOAT PIN SET SC
$2.99
15 977533 977533 - USE: 979680
$2.99
16 972861 972861 - DIAPHRAGM No Longer Available
Obsolete.
17 972866 972866 - NLA MAIN DIAPHRAGM C
$38.99
18 971814 971814 - SCREW
$2.99
19 972876 972876 - NLA CLAMP
$2.99
20 972857 972857 - NLA FLOAT ARM
$10.99
21 972859 972859 - INLET VALVE SPRING
$10.99
22 977567 977567 - NLA MAIN ADJUSTING N
$19.99
23 991096 991096 - NLA THROTTLE ADJ SCR
$14.99
24 991097 991097 - NLA SPRING
$8.99
25 996235 996235 - THROTTLE VALVE
$27.99
26 996236 996236 - NLA JET NEEDLE ASSY
$23.99
27 972850 972850 - NLA SPRING RETAINER
$5.99
28 996237 996237 - NLA SPRING
$10.99
29 977566 977566 - NLA MIXING CHAMBER C
$17.99
30 977568 977568 - USE: 260058 No Longer Available
Obsolete.
31 997365 997365 - NLA THROTTLE WIRE
$42.99
33 991098 991098 - NLA ELEMENT HOLDER
$10.99
34 972844 972844 - ELEMENT
$15.99
35 972842 972842 - NLA STEEL NET
$17.99
36 997309 997309 - LABEL, NAME
$9.99
37 997310 997310 - NLA CASE CLEANER
$23.99
38 990125 990125 - NLA SCREW
$2.99
39 996229 996229 - NLA SCREW
$2.99
40 997311 997311 - NLA RECOIL STARTER
$109.99
41 972833 972833 - NLA STARTER KNOB
$21.99
42 997312 997312 - NLA PART, INNER
$13.99
43 972832 972832 - USE: 261724
$16.99
44 976742 976742 - USE: 92055
$2.99
45 977441 977441 - SCREW
$10.99
46 997313 997313 - NLA STARTER PULLEY
$20.99
47 993293 993293 - NLA PLATE
$15.99
48 997314 997314 - USE: 591588 No Longer Available
Obsolete.
49 972831 972831 - NLA FRICTION SPRING
$6.99
50 972834 972834 - NLA RETURN SPRING
$15.99
51 972830 972830 - NLA REEL
$45.99
52 972829 972829 - SPIRAL SPRING
$22.99
53 997315 997315 - NLA CASE, CLEANER
$78.99
54 997316 997316 - NLA LABEL, NAME
$19.99
55 997317 997317 - LABEL
$16.99
