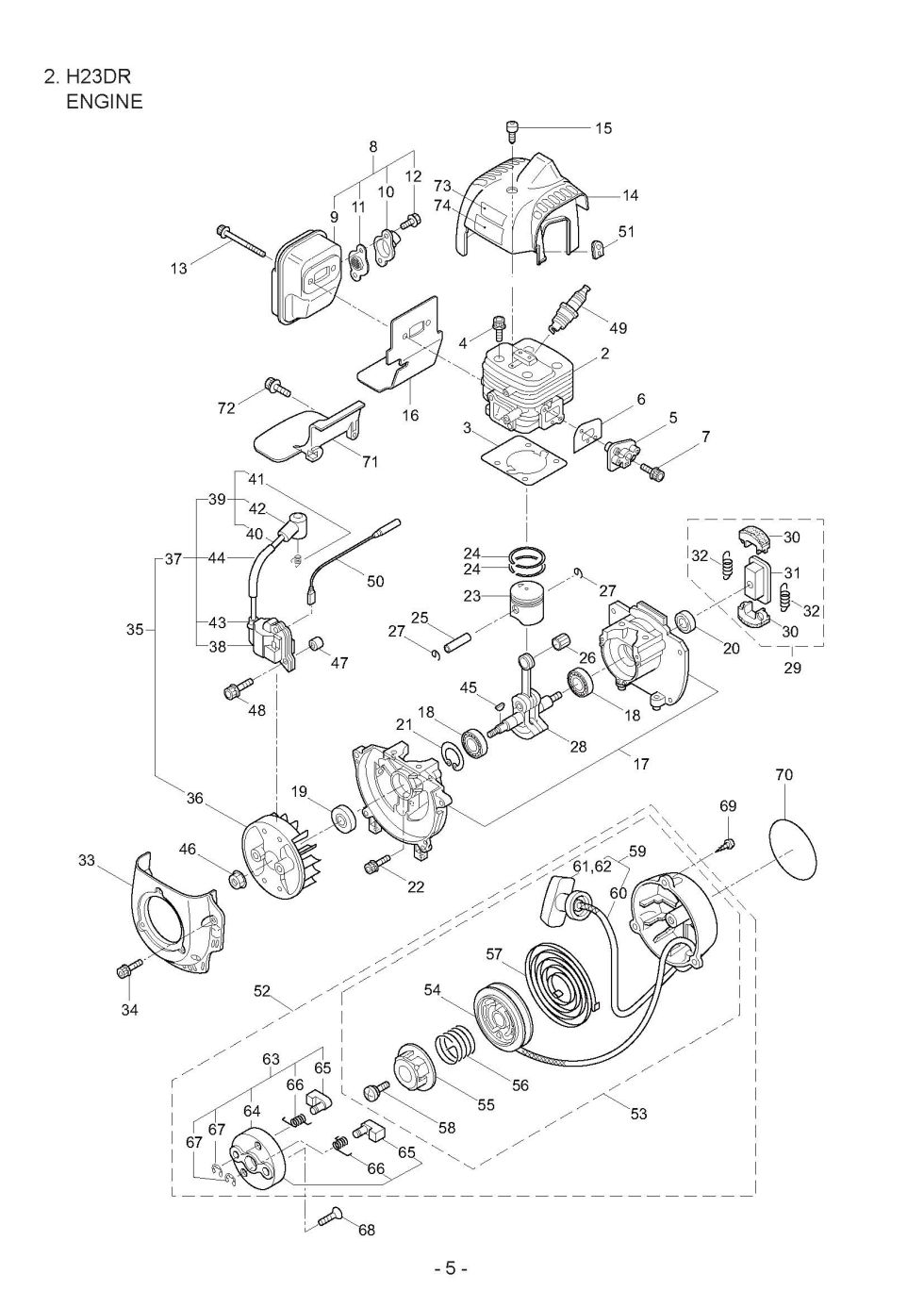

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your H23DR. You have selected the Engine diagram for the Maruyama H23DR Hedge Trimmers. Below you will find an interactive part diagram for the H23DR Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the H23DR parts not shown in this diagram you may select from one of the other H23DR part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
2 288499 288499 - CYLINDER COMPLETE
$131.99
3 286074 286074 - GASKET
$13.99
4 261250 261250 - BOLT M5X20
$2.99
5 265802 265802 - INSULATOR
$27.99
6 267049 267049 - GASKET
$2.99
7 265924 265924 - CAP SCREW 5X25
$2.99
8 288501 288501 - MUFFLER ASS'Y
$116.99
9 288502 288502 - USE: 288501
$103.99
10 288503 288503 - MUFFLER TAIL
$5.99
11 288504 288504 - SPARK ARRESTOR
$7.99
12 288542 288542 - SCREW
$2.99
13 266402 266402 - CAP SCREW
$5.99
14 289402 289402 - TOP COVER
$31.99
15 286399 286399 - BOLT
$2.99
16 288506 288506 - GASKET
$9.99
17 288537 288537 - CRANKCASE
$47.99
18 280488 280488 - USE: 261491
$13.99
19 261492 261492 - OIL SEAL
$2.99
20 261386 261386 - OIL SEAL
$2.99
21 280569 280569 - CLUTCH BOSS
$13.99
22 261246 261246 - CAP SCREW M5X25
$2.99
23 268032 268032 - USE: 283379
$45.99
24 282177 282177 - PISTON RING
$16.99
25 261036 261036 - PISTON PIN
$16.99
26 263957 263957 - BEARING NEEDLE
$21.99
27 261576 261576 - CIRCLIP
$2.99
28 288511 288511 - CRANKSHAFT/CONN.ROD
$86.99
29 280404 280404 - CLUTCH ASSY
$36.99
30 280568 280568 - CLUTCH SHOE
$18.99
32 280570 280570 - SPRING
$5.99
33 288508 288508 - FAN COVER
$24.99
35 288514 288514 - MAGNETO ASS'Y
$122.99
36 288515 288515 - ROTOR/FAN
$41.99
37 288516 288516 - IGNITION COIL ASS'Y
$80.99
38 289483 289483 - COIL
$54.99
39 289484 289484 - SPARK PLUG WIRE ASS'
$23.99
40 289485 289485 - SPARK PLUG WIRE
$2.99
41 283270 283270 - CONNECTOR
$6.99
42 283178 283178 - PLUG BOOT
$21.99
43 283271 283271 - CAP
$10.99
44 289486 289486 - INSULATOR
$2.99
45 261076 261076 - WOODRUFF KEY
$2.99
46 261417 261417 - ROTOR NUT
$8.99
47 280381 280381 - SPACER
$2.99
48 261256 261256 - BOLT M4X25
$2.99
50 261772 261772 - LEAD
$2.99
51 283140 283140 - GROMMET
$2.99
52 283171 283171 - RECOIL STARTER ASS'Y
$53.99
53 283172 283172 - STARTER ASS'Y
$41.99
54 286363 286363 - REEL
$15.99
55 286364 286364 - CAM PLATE
$14.99
56 283290 283290 - SPRING
$14.99
57 280931 280931 - USE: 261721
$14.99
58 267213 267213 - SCREW
$2.99
59 283291 283291 - ROPE ASS'Y
$17.99
60 283292 283292 - STARTER ROPE
$7.99
61 261725 261725 - STARTER GRIP
$9.99
62 283293 283293 - ROPE STOPPER
$2.99
63 283173 283173 - STARTER PULLEY ASS'Y
$23.99
64 283294 283294 - STARTER PULLEY
$23.99
65 280936 280936 - RACHET
$7.99
66 283295 283295 - SPRING
$2.99
67 020299 020299 - E-SHAPED SNAP RING
$2.99
68 264535 264535 - SCREW(M6X20)
$2.99
69 280144 280144 - SCREW FOR MS073W
$2.99
70 289411 289411 - LABEL
$8.99
71 288505 288505 - UNDER COVER
$9.99
72 267191 267191 - CAP SCREW
$2.99
73 289465 289465 - LABEL
$9.99
74 272103 272103 - LABEL
$2.99
