 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

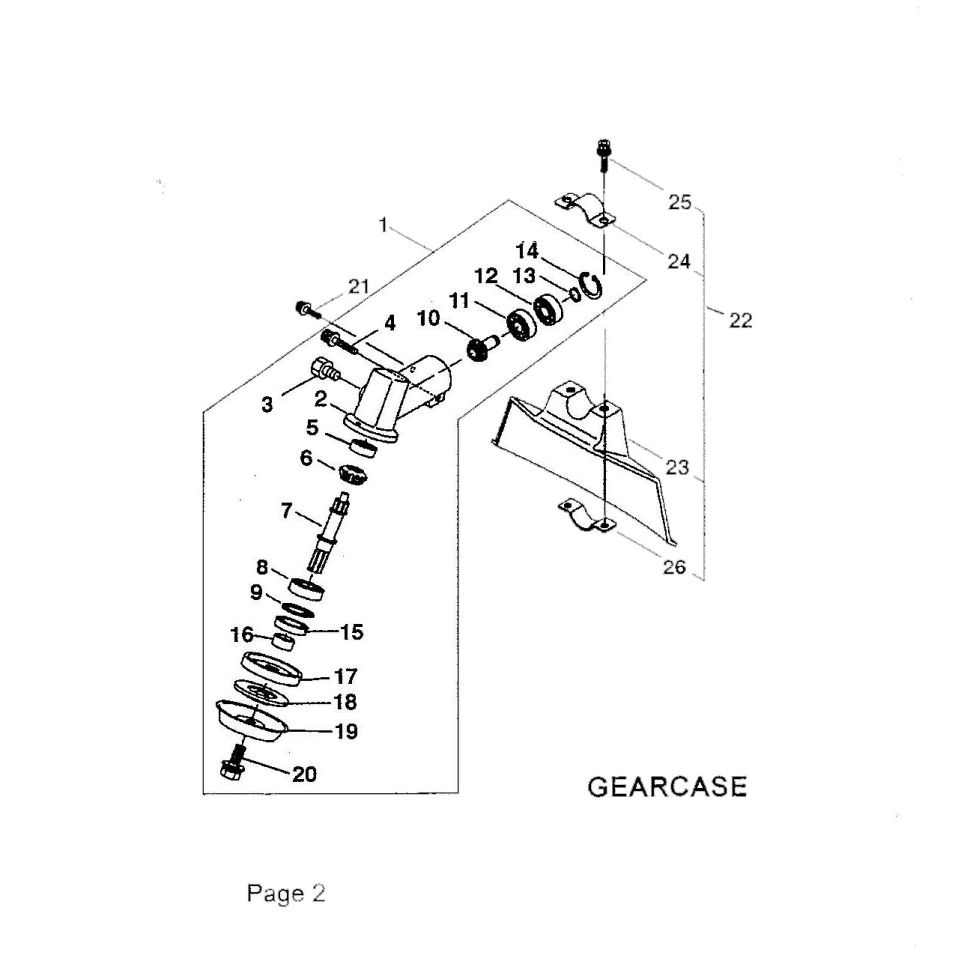

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 218757 |
218757 - NLA GEARCASE ASSY (obsolete) use part #221458 |
$154.99
|
|
| 2 | 215937 | 215937 - NLA GEARCASE |
$45.99
|
|
| 3 | 089845 | 089845 - BOLT |
$2.99
|
|
| 4 | 261246 | 261246 - CAP SCREW M5X25 |
$2.99
|
|
| 5 | 210554 | 210554 - BEARING |
$9.99
|
|
| 7 | 210556 | 210556 - BLADE AXIS |
$38.99
|
|
| 8 | 972893 | 972893 - NLA BALL BEARING (NO |
$14.99
|
|
| 9 | 055185 | 055185 - SNAP RING |
$2.99
|
|
| 10 | 215544 |
215544 - USE: 227103 (obsolete) use part #227103 |
$40.99
|
|
| 11 | 210560 | 210560 - BEARING |
$10.99
|
|
| 12 | 140268 | 140268 - BEARING |
$12.99
|
|
| 13 | 140269 | 140269 - USE: 228477 |
$2.99
|
|
| 14 | 140270 | 140270 - SNAP RING |
$2.99
|
|
| 15 | 215641 | 215641 - OIL SEAL |
$8.99
|
|
| 16 | 217844 | 217844 - NLA COLLAR (NO SUPER |
$10.99
|
|
| 17 | 217845 | 217845 - BOSS ADAPTER |
$30.99
|
|
| 18 | 215546 | 215546 - BOSS B |
$14.99
|
|
| 19 | 215547 | 215547 - STABILIZER |
$16.99
|
|
| 20 | 215610 | 215610 - BOLT |
$5.99
|
|
| 21 | 261762 | 261762 - SCREW |
$2.99
|
|
| 22 | 215941 | 215941 - NLA SAFETY COVER ASS |
$20.99
|
|
| 23 | 213843 | 213843 - NLA SAFETY COVER |
$21.99
|
|
| 24 | 215943 | 215943 - NLA BRACKET |
$7.99
|
|
| 26 | 215942 | 215942 - USE: 212994 |
$2.99
|
