 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

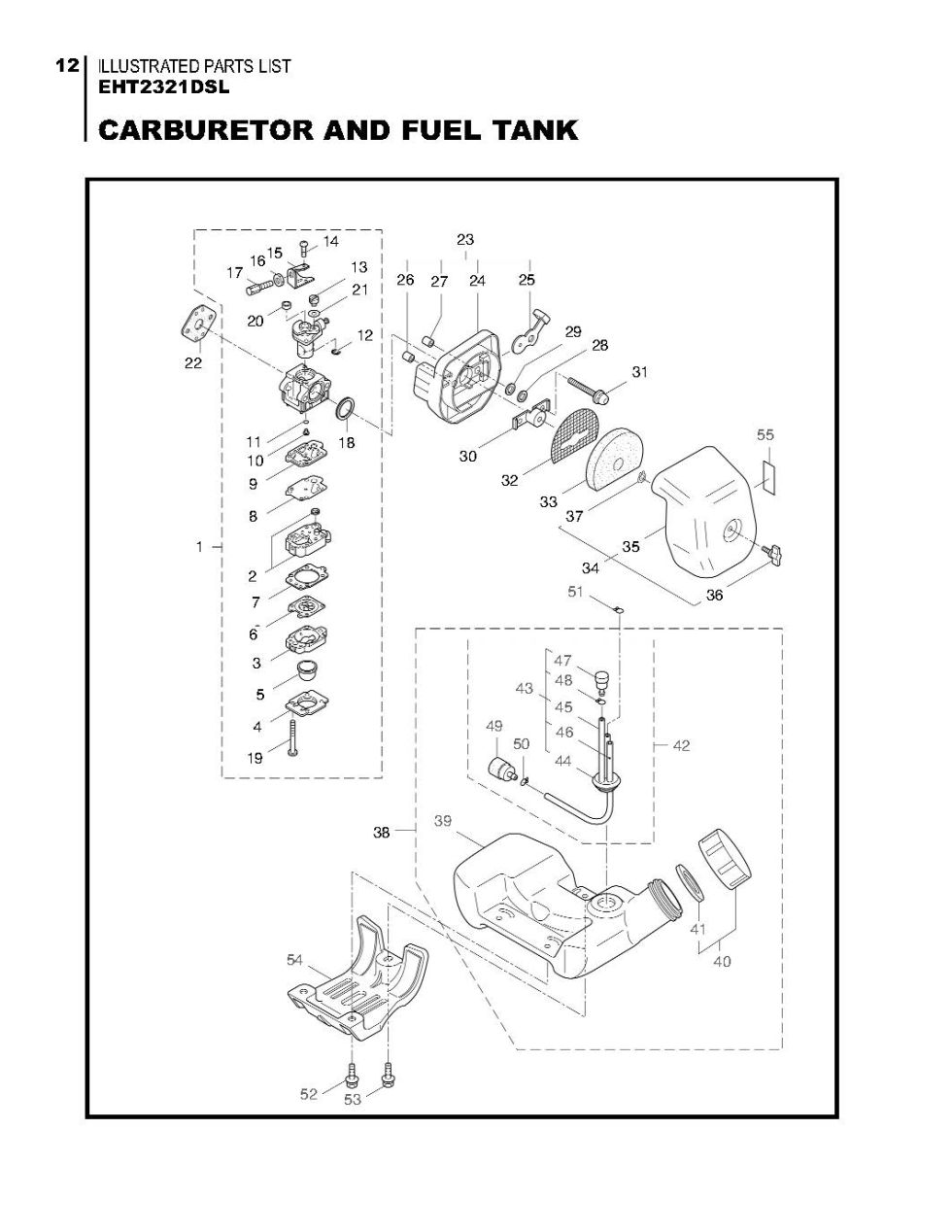

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 282331 | 282331 - CARBURETOR ASSY |
$158.99
|
|
| 2 | 264155 | 264155 - PUMP BODY |
$80.99
|
|
| 3 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 4 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 5 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 6 | 268501 | 268501 - USE: 283905 |
$11.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 9 | 282576 | 282576 - GASKET |
$8.99
|
|
| 10 | 268798 | 268798 - MAIN JET #37.5 |
$24.99
|
|
| 11 | 261871 | 261871 - O-RING |
$2.99
|
|
| 12 | 261876 | 261876 - E-RING |
$2.99
|
|
| 13 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 14 | 261875 | 261875 - SCREW |
$2.99
|
|
| 15 | 264677 | 264677 - BRACKET |
$20.99
|
|
| 16 | 261878 | 261878 - NUT |
$2.99
|
|
| 17 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 18 | 261657 | 261657 - PACKING |
$10.99
|
|
| 19 | 262996 | 262996 - SCREW |
$2.99
|
|
| 20 | 280730 | 280730 - LIMITER CAP |
$2.99
|
|
| 21 | 264678 | 264678 - WASHER |
$2.99
|
|
| 22 | 261864 | 261864 - GASKET |
$2.99
|
|
| 23 | 268055 | 268055 - AIR FILTER CASE ASSY |
$19.99
|
|
| 24 | 268056 | 268056 - AIR FILTER CASE |
$12.99
|
|
| 25 | 268057 | 268057 - VALVE |
$11.99
|
|
| 26 | 268157 | 268157 - SLEEVE |
$2.99
|
|
| 27 | 268412 | 268412 - SLEEVE |
$2.99
|
|
| 28 | 263345 | 263345 - PACKING |
$2.99
|
|
| 29 | 263942 | 263942 - WASHER |
$2.99
|
|
| 30 | 263815 | 263815 - STAY |
$8.99
|
|
| 31 | 264016 | 264016 - CAP SCREW M5X60 |
$2.99
|
|
| 32 | 265026 | 265026 - SCREEN |
$2.99
|
|
| 33 | 265027 | 265027 - FOAM ELEMENT |
$5.99
|
|
| 34 | 268058 | 268058 - AIR FILTER COVER ASS |
$24.99
|
|
| 35 | 268059 | 268059 - AIR FILTER COVER |
$12.99
|
|
| 36 | 281438 | 281438 - KNOB |
$7.99
|
|
| 37 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 38 | 281711 | 281711 - FUEL TANK ASSY |
$48.99
|
|
| 39 | 281445 | 281445 - FUEL TANK |
$21.99
|
|
| 40 | 269201 |
269201 - USE: 281565 (obsolete) use part #281565 |
$8.99
|
|
| 42 | 282334 | 282334 - FUEL PIPE ASSY |
$31.99
|
|
| 43 | 282335 | 282335 - FUEL PIPE ASSY |
$34.99
|
|
| 44 | 268065 | 268065 - GROMMET |
$8.99
|
|
| 45 | 282337 | 282337 - RETURN PIPE |
$15.99
|
|
| 46 | 282501 | 282501 - FUEL PIPE |
$2.99
|
|
| 47 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 48 | 261117 | 261117 - CLIP |
$2.99
|
|
| 52 | 281714 | 281714 - SCREW |
$2.99
|
|
| 53 | 281715 | 281715 - CAP SCREW |
$2.99
|
|
| 54 | 281447 | 281447 - STAND |
$9.99
|
|
| 55 | 261352 | 261352 - DECAL |
$2.99
|
