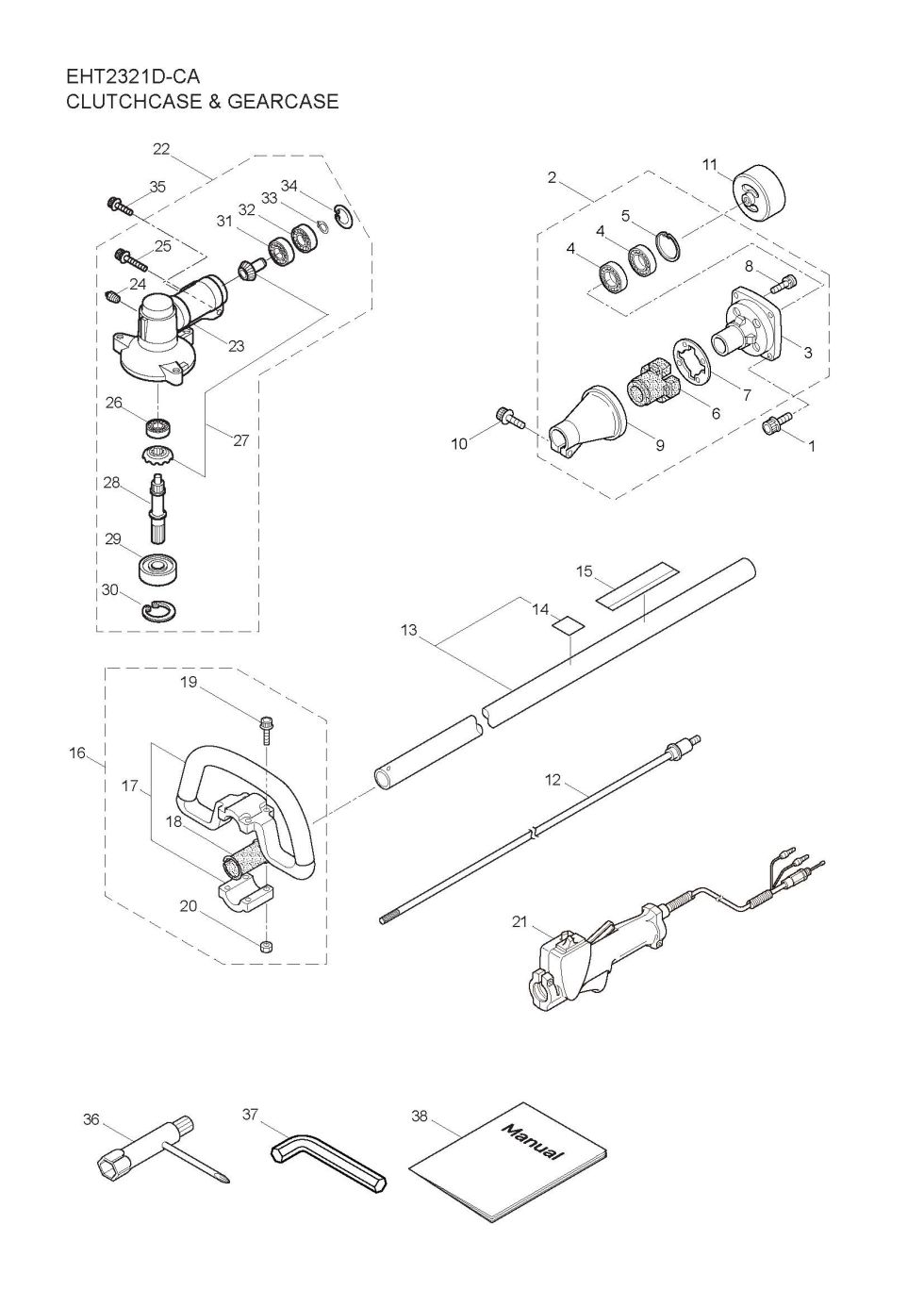

Clutchcase, Gearcase

Clutchcase, Gearcase

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT2321D-CA. You have selected the Clutchcase, Gearcase diagram for the Maruyama EHT2321D-CA Hedge Trimmers. Below you will find an interactive part diagram for the EHT2321D-CA Clutchcase, Gearcase. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT2321D-CA parts not shown in this diagram you may select from one of the other EHT2321D-CA part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 261250 261250 - BOLT M5X20
$2.99
2 215512 215512 - CLUTCH CASE ASSY
$150.99
3 214592 214592 - BEARING CASE
$39.99
4 214161 214161 - USE: 102680
$13.99
5 054676 054676 - SNAP RING
$2.99
6 214162 214162 - BUFFER
$28.99
7 214163 214163 - WASHER
$11.99
8 092033 092033 - SCREW(M5X15)
$2.99
9 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
10 261246 261246 - CAP SCREW M5X25
$2.99
11 054677 054677 - CLUTCH DRUM
$32.99
12 220357 220357 - DRIVESHAFT
$42.99
13 223994 223994 - OUTER TRANSMISSION A
$48.99
14 217879 217879 - LABEL
$6.99
16 215601 215601 - LOOP HANDLE ASSY
$27.99
17 214982 214982 - HANDLE ASSY
$28.99
18 213171 213171 - PACKING
$8.99
19 215608 215608 - CAP SCREW
$2.99
20 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
21 229001 229001 - THROTTLE TRIGGER ASS
$45.99
22 217655 217655 - GEARCASE ASSY
$114.99
23 217656 217656 - GEARCASE
$50.99
24 069553 069553 - GREASE FITTING
$2.99
26 210554 210554 - BEARING
$9.99
27 227104 227104 - GEAR SET
$39.99
28 210556 210556 - BLADE AXIS
$38.99
29 217659 217659 - BEARING #6201 2RK
$21.99
30 016732 016732 - C SHAPED SNAP RING 3
$2.99
31 210560 210560 - BEARING
$10.99
32 140268 140268 - BEARING
$12.99
33 140269 140269 - USE: 228477
$2.99
34 140270 140270 - SNAP RING
$2.99
35 215993 215993 - CAP SCREW, ALIGNMENT
$2.99
36 210418 210418 - BOX WRENCH/DRIVER
$16.99
37 219432 219432 - 4MM HEX WRENCH
$2.99
