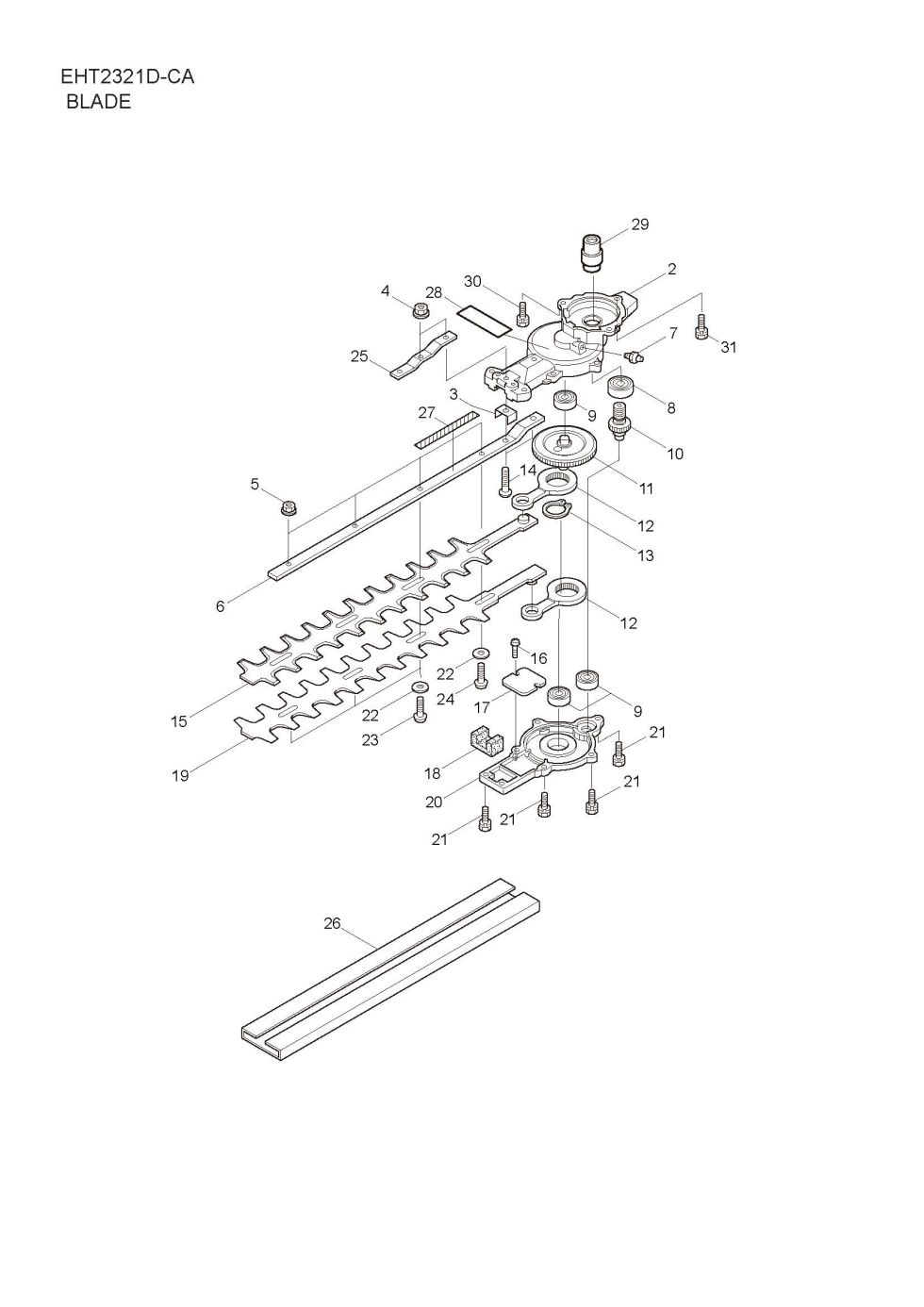

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT2321D-CA. You have selected the Blade diagram for the Maruyama EHT2321D-CA Hedge Trimmers. Below you will find an interactive part diagram for the EHT2321D-CA Blade. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT2321D-CA parts not shown in this diagram you may select from one of the other EHT2321D-CA part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
2 270760 270760 - UPPER CASE
$126.99
3 270757 270757 - PLATE
$14.99
4 997244 997244 - USE: 127226
$2.99
5 991941 991941 - USE: 290560
$2.99
6 581912 581912 - BLADE GUIDE - 24IN
$57.99
7 991937 991937 - NIPPLE, GREASE
$6.99
8 580767 580767 - BALL BEARING (#6001-
$29.99
9 270423 270423 - BEARING
$22.99
10 584666 584666 - PINION GEAR
$88.99
11 591443 591443 - CRANK COMPLETE
$148.99
12 271466 271466 - ROD
$58.99
13 580777 580777 - SNAP RING
$7.99
14 991931 991931 - SCREW
$2.99
15 570687 570687 - USE: 581913
$140.99
16 991924 991924 - SCREW
$2.99
17 991919 991919 - PLATE ROD SLIDE
$19.99
18 270758 270758 - FELT
$14.99
19 570688 570688 - LOWER BLADE 24 INCH
$86.99
20 270756 270756 - LOWER CASE
$44.99
21 580791 580791 - HEX HEAD BOLT
$2.99
22 991913 991913 - WASHER
$2.99
23 991914 991914 - SCREW
$10.99
24 991912 991912 - SCREW FOR FITTING BL
$5.99
26 217677 217677 - BLADE SHIELD
$39.99
27 591450 591450 - LABEL
$5.99
28 223925 223925 - LABEL
$2.99
29 217663 217663 - SLEEVE
$30.99
30 092552 092552 - BOLT (M6X20)
$2.99
31 092555 092555 - BOLT(M6X30)
$2.99
