Home :: Parts Lookup :: Hedge Trimmers :: EHT2321D Blade breadcrumb_end

Model Type:

Model:

Assembly:

All Diagrams for this Model

Blade

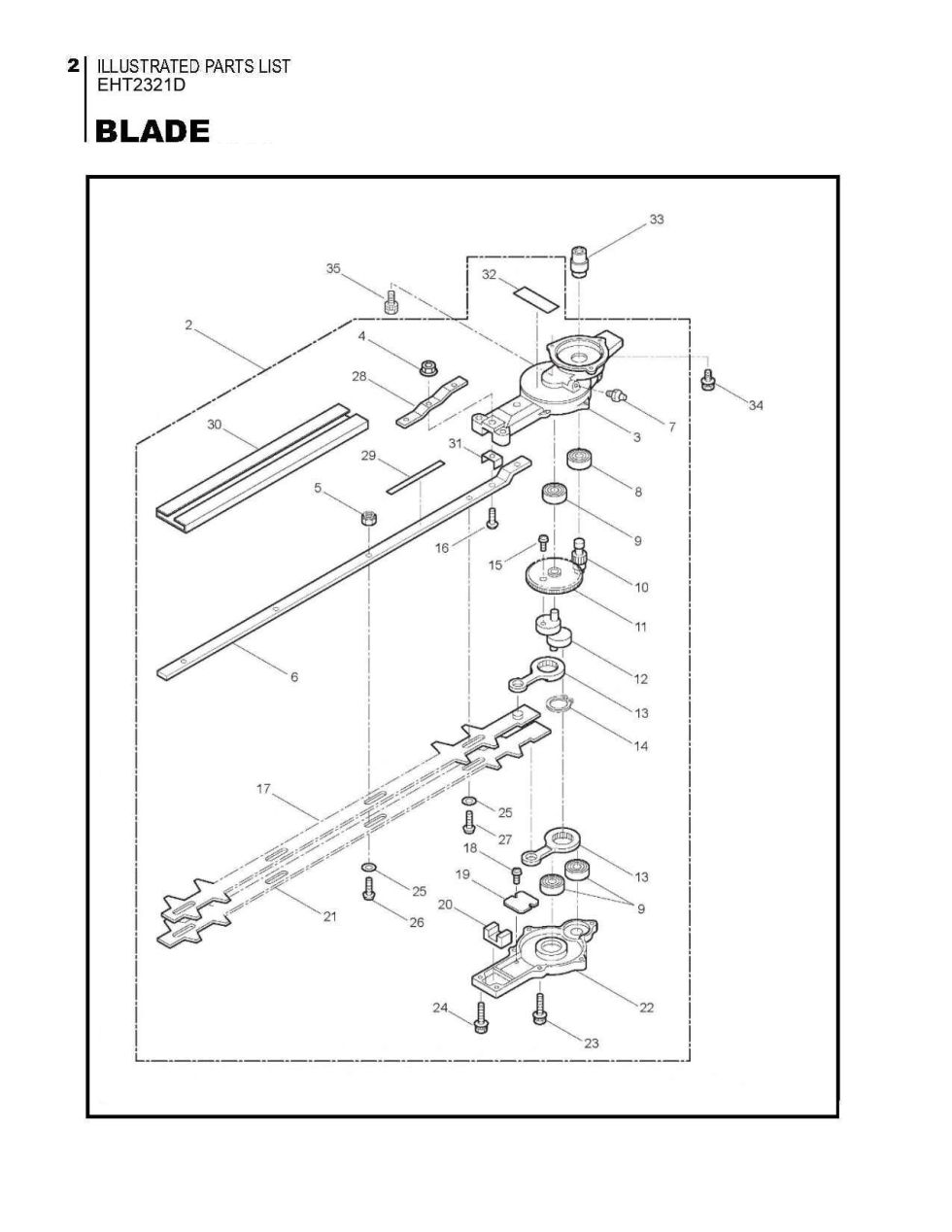

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT2321D. You have selected the Blade diagram for the Maruyama EHT2321D Hedge Trimmers. Below you will find an interactive part diagram for the EHT2321D Blade. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT2321D parts not shown in this diagram you may select from one of the other EHT2321D part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number	SKU	Product title	Price
2	270760	270760 - UPPER CASE	$126.99
4	997244	997244 - USE: 127226	$2.99
5	991941	991941 - USE: 290560	$2.99
6	581912	581912 - BLADE GUIDE - 24IN	$57.99
7	991937	991937 - NIPPLE, GREASE	$6.99
8	580767	580767 - BALL BEARING (#6001-	$29.99
9	580768	580768 - BALL BEARING	$33.99
10	584666	584666 - PINION GEAR	$88.99
11	580771	580771 - GEAR LARGE	$104.99
12	582445	582445 - CRANK	$158.99
13	997282	997282 - USE: 271466	$62.99
14	580777	580777 - SNAP RING	$7.99
15	580770	580770 - SCREW	$2.99
16	991931	991931 - SCREW	$2.99
17	581913	581913 - UPPER BLADE 24 INCH	$86.99
18	991924	991924 - SCREW	$2.99
19	991919	991919 - PLATE ROD SLIDE	$19.99
20	270758	270758 - FELT	$14.99
21	581914	581914 - USE: 570688	$145.99
22	270756	270756 - LOWER CASE	$44.99
23	580791	580791 - HEX HEAD BOLT	$2.99
24	580790	580790 - HEX HEAD BOLT	$2.99
25	991913	991913 - WASHER	$2.99
26	991914	991914 - SCREW	$10.99
27	991912	991912 - SCREW FOR FITTING BL	$5.99
28	270759	270759 - PLATE	$17.99
29	591450	591450 - LABEL	$5.99
30	217677	217677 - BLADE SHIELD	$39.99
31	270757	270757 - PLATE	$14.99
32	223925	223925 - LABEL	$2.99
33	217663	217663 - SLEEVE	$30.99
34	092555	092555 - BOLT(M6X30)	$2.99
35	092552	092552 - BOLT (M6X20)	$2.99
