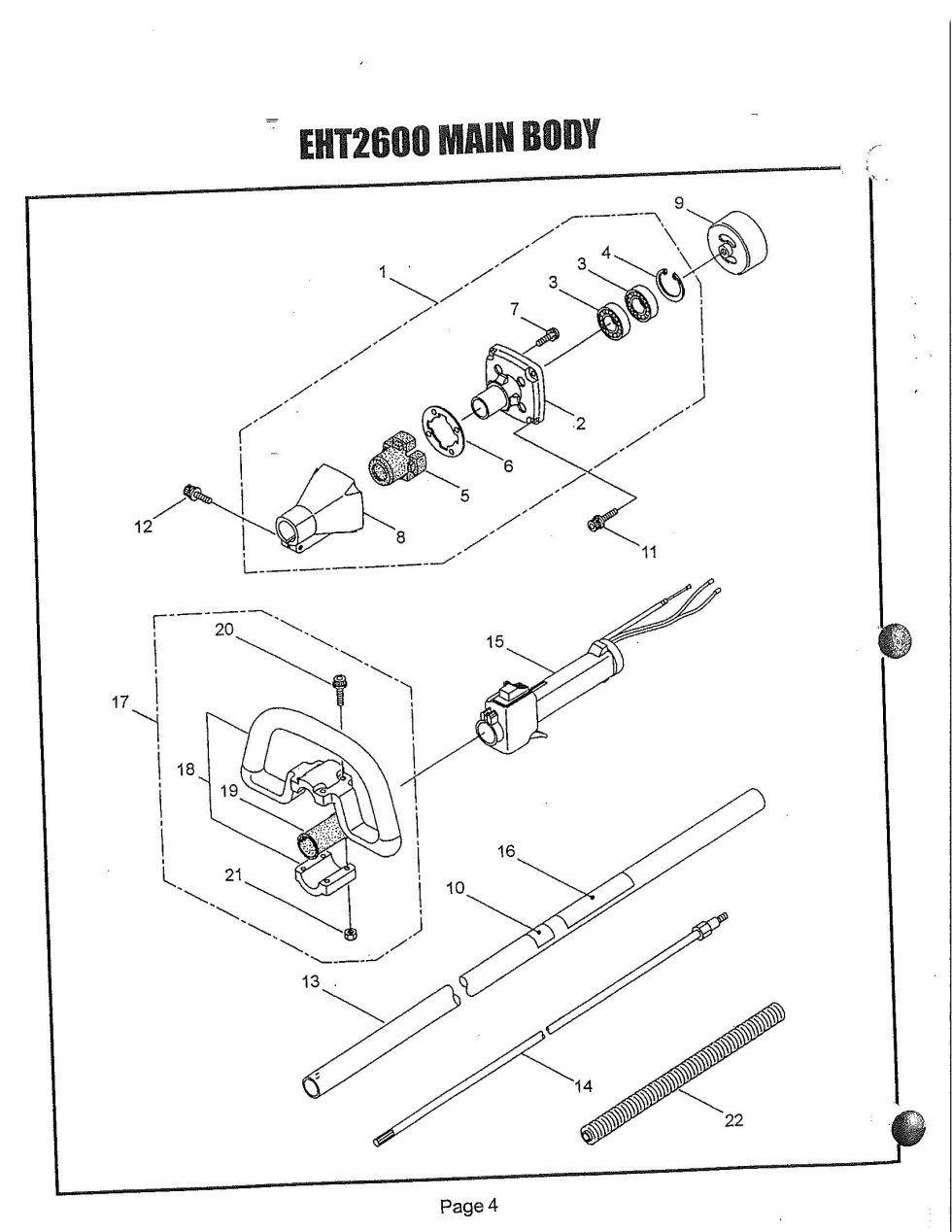

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT2300, EHT2600. You have selected the Main Body (EHT2600) diagram for the Maruyama EHT2300, EHT2600 Hedge Trimmers. Below you will find an interactive part diagram for the EHT2300, EHT2600 Main Body (EHT2600). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT2300, EHT2600 parts not shown in this diagram you may select from one of the other EHT2300, EHT2600 part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.
.jpg) |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 219469 | 219469 - CLUTCH CASE ASSY |
$136.99
|
|
| 2 | 218879 | 218879 - BEARING CASE |
$29.99
|
|
| 3 | 991925 | 991925 - USE: 261743 |
$12.99
|
|
| 4 | 054676 | 054676 - SNAP RING |
$2.99
|
|
| 5 | 214162 | 214162 - BUFFER |
$28.99
|
|
| 6 | 214163 | 214163 - WASHER |
$11.99
|
|
| 7 | 092033 | 092033 - SCREW(M5X15) |
$2.99
|
|
| 8 | 218880 | 218880 - DRIVESHAFT TUBE ADAP |
$36.99
|
|
| 9 | 219083 | 219083 - CLUTCH DRUM |
$28.99
|
|
| 10 | 217879 | 217879 - LABEL |
$6.99
|
|
| 11 | 261250 | 261250 - BOLT M5X20 |
$2.99
|
|
| 12 | 261246 | 261246 - CAP SCREW M5X25 |
$2.99
|
|
| 13 | 217648 | 217648 - DRIVESHAFT TUBE |
$56.99
|
|
| 14 | 220357 | 220357 - DRIVESHAFT |
$42.99
|
|
| 15 | 217658 | 217658 - NLA THROTTLE & GRIP |
$59.99
|
|
| 16 | 222250 | 222250 - NLA LABEL |
$7.99
|
|
| 17 | 215601 | 215601 - LOOP HANDLE ASSY |
$27.99
|
|
| 18 | 214982 | 214982 - HANDLE ASSY |
$28.99
|
|
| 19 | 213171 | 213171 - PACKING |
$8.99
|
|
| 20 | 215608 | 215608 - CAP SCREW |
$2.99
|
|
| 21 | 089846 |
089846 - NUT M5 (obsolete) use part #081027 |
$2.99
|
|
| 22 | 213548 | 213548 - PLASTIC TUBE |
$2.99
|
