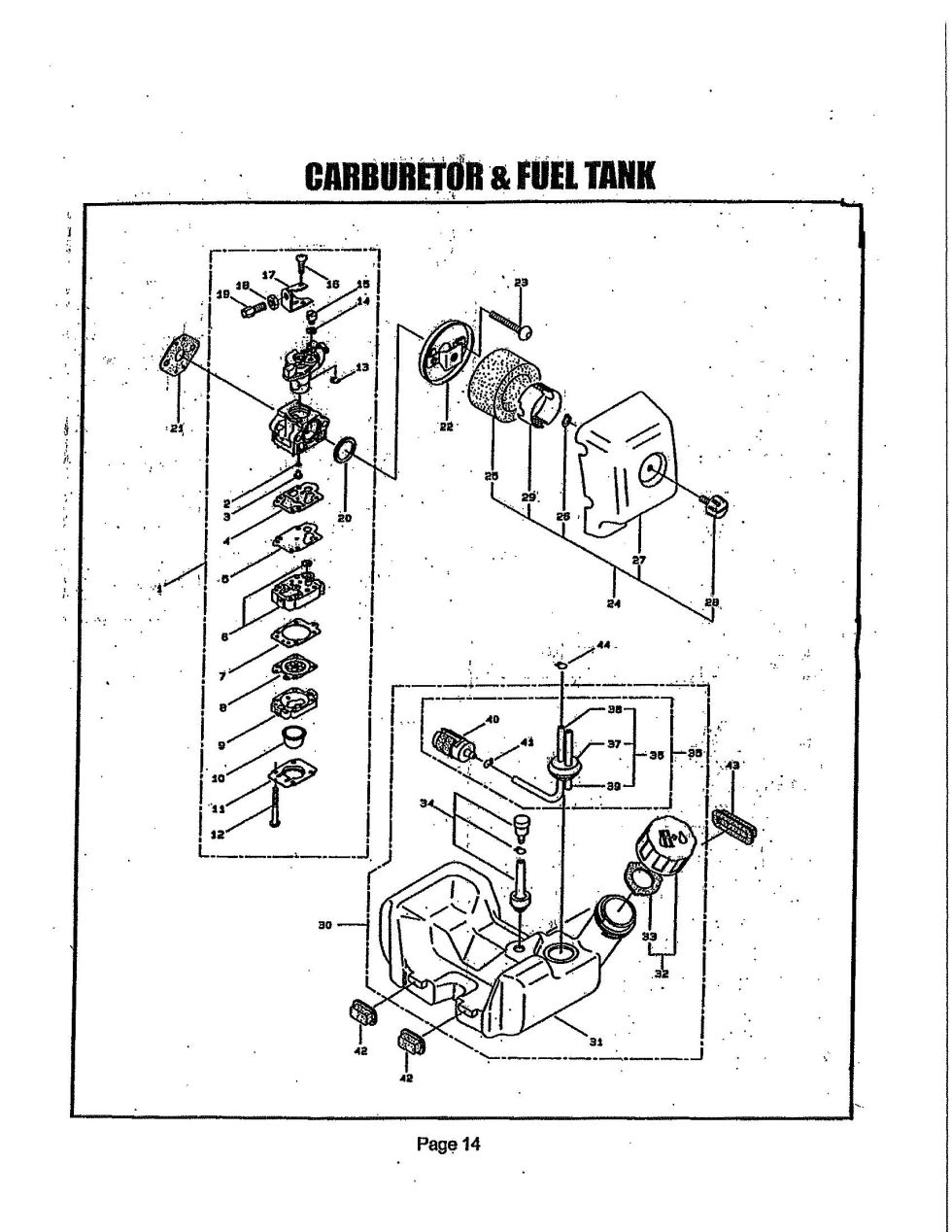

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT2300, EHT2600. You have selected the Carburetor and Fuel Tank diagram for the Maruyama EHT2300, EHT2600 Hedge Trimmers. Below you will find an interactive part diagram for the EHT2300, EHT2600 Carburetor and Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT2300, EHT2600 parts not shown in this diagram you may select from one of the other EHT2300, EHT2600 part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1(EHT2300) | 266598 | 266598 - CARBURETOR ASSY |
$85.99
|
|
| 1(EHT2600) | 265926 | 265926 - CARBURETOR |
$156.99
|
|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3(EHT2300) | 266462 | 266462 - MAIN JET #41.5 |
$17.99
|
|
| 3(EHT2600) | 262120 | 262120 - MAIN JET #40 |
$21.99
|
|
| 4 | 262995 | 262995 - GASKET |
$13.99
|
|
| 5 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 6 | 263739 | 263739 - PUMP BODY |
$49.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 9 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 10 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 11 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 12 | 262996 | 262996 - SCREW |
$2.99
|
|
| 13 | 261876 | 261876 - E-RING |
$2.99
|
|
| 14 | 264678 | 264678 - WASHER |
$2.99
|
|
| 15 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 16 | 261875 | 261875 - SCREW |
$2.99
|
|
| 17 | 264677 | 264677 - BRACKET |
$20.99
|
|
| 18 | 261878 | 261878 - NUT |
$2.99
|
|
| 19 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 20 | 261657 | 261657 - PACKING |
$10.99
|
|
| 21 | 261864 | 261864 - GASKET |
$2.99
|
|
| 22 | 261090 | 261090 - AIR FILTER PLATE |
$20.99
|
|
| 23 | 262720 | 262720 - BOLT |
$2.99
|
|
| 25 | 261598 | 261598 - ELEMENT |
$7.99
|
|
| 26 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 27(EHT2300) | 266785 | 266785 - CLEANER CASE |
$23.99
|
|
| 27(EHT2600) | 262447 | 262447 - AIR FILTER ASSY |
$20.99
|
|
| 28(EHT2300) | 263128 | 263128 - USE: 263129 |
$2.99
|
|
| 28(EHT2600) | 261018 | 261018 - KNOB |
$7.99
|
|
| 29 | 261993 | 261993 - SCREEN |
$8.99
|
|
| 30(EHT2300) | 266745 | 266745 - USE: 266128 |
$48.99
|
|
| 30(EHT2600) | 266553 | 266553 - USE: 264748 |
$67.99
|
|
| 31(EHT2300) | 264750 | 264750 - FUEL TANK |
$38.99
|
|
| 31(EHT2600) | 264751 | 264751 - FUEL TANK |
$31.99
|
|
| 32 | 264784 | 264784 - USE: 261584 |
$15.99
|
|
| 33 | 261105 | 261105 - PACKING |
$2.99
|
|
| 34 | 261696 | 261696 - BREATHER ASSY |
$8.99
|
|
| 35(EHT2300) | 262645 | 262645 - FUEL PIPE ASSY |
$26.99
|
|
| 35(EHT2600) | 263800 | 263800 - USE: 265752 |
$23.99
|
|
| 36(EHT2300) | 262646 | 262646 - FUEL PIPE ASSEMBLY |
$11.99
|
|
| 36(EHT2600) | 264031 | 264031 - FUEL PIPE ASSY |
$18.99
|
|
| 37 | 261115 |
261115 - USE: 266955 (obsolete) use part #266955 |
$17.99
|
|
| 38(EHT2300) | 262649 | 262649 - FUEL PIPE |
$2.99
|
|
| 38(EHT2600) | 261690 |
261690 - FUEL PIPE (obsolete) use part #262649 |
$2.99
|
|
| 39 | 263038 | 263038 - RETURN PIPE |
$2.99
|
|
| 40 | 261797 | 261797 - NLA FUEL FILTER ASSY |
$12.99
|
|
| 41 | 261117 | 261117 - CLIP |
$2.99
|
|
| 42 | 261118 | 261118 - PAD |
$2.99
|
|
| 43 | 261119 | 261119 - PAD |
$2.99
|
