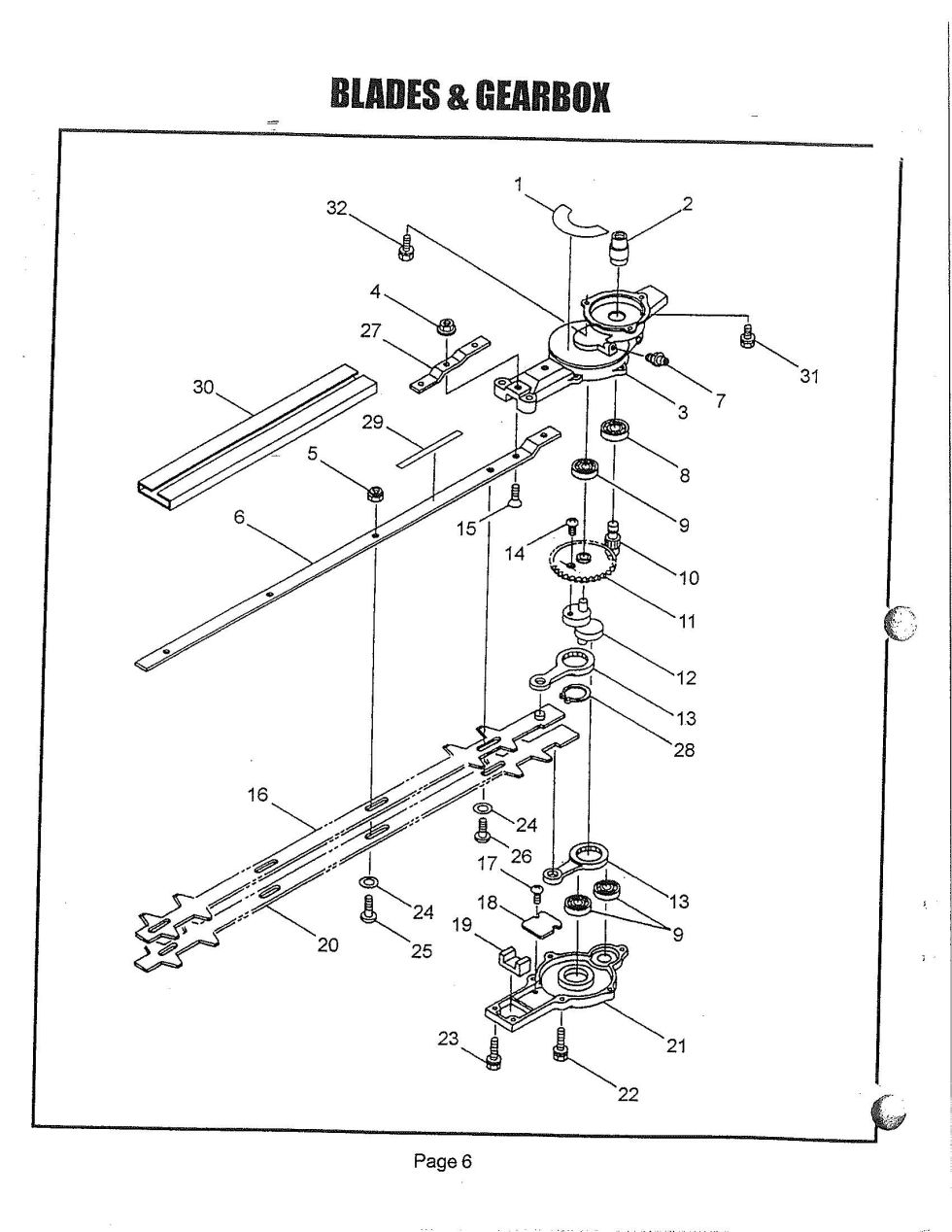

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT2300, EHT2600. You have selected the Blade, Gearbox diagram for the Maruyama EHT2300, EHT2600 Hedge Trimmers. Below you will find an interactive part diagram for the EHT2300, EHT2600 Blade, Gearbox. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT2300, EHT2600 parts not shown in this diagram you may select from one of the other EHT2300, EHT2600 part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 217880 217880 - LABEL
$12.99
2 217663 217663 - SLEEVE
$30.99
3 584661 584661 - UPPER CASE
$144.99
4 997244 997244 - USE: 127226
$2.99
5 991941 991941 - USE: 290560
$2.99
6 581912 581912 - BLADE GUIDE - 24IN
$57.99
7 991937 991937 - NIPPLE, GREASE
$6.99
8 580767 580767 - BALL BEARING (#6001-
$29.99
9 580768 580768 - BALL BEARING
$33.99
10 584666 584666 - PINION GEAR
$88.99
11 580771 580771 - GEAR LARGE
$104.99
12 582445 582445 - CRANK
$158.99
13 997282 997282 - USE: 271466
$62.99
14 580770 580770 - SCREW
$2.99
15 991931 991931 - SCREW
$2.99
16 581913 581913 - UPPER BLADE 24 INCH
$86.99
17 991924 991924 - SCREW
$2.99
18 991919 991919 - PLATE ROD SLIDE
$19.99
19 997286 997286 - FELT
$19.99
20 570688 570688 - LOWER BLADE 24 INCH
$86.99
21 997288 997288 - LOWER CASE
$47.99
22 580791 580791 - HEX HEAD BOLT
$2.99
23 580790 580790 - HEX HEAD BOLT
$2.99
24 991913 991913 - WASHER
$2.99
25 991914 991914 - SCREW
$10.99
26 991912 991912 - SCREW FOR FITTING BL
$5.99
27 991973 991973 - REINFORCING PLATE
$22.99
28 580777 580777 - SNAP RING
$7.99
29 591450 591450 - LABEL
$5.99
30 217677 217677 - BLADE SHIELD
$39.99
31 092555 092555 - BOLT(M6X30)
$2.99
32 089744 089744 - BOLT
$2.99
