Main Body

Main Body

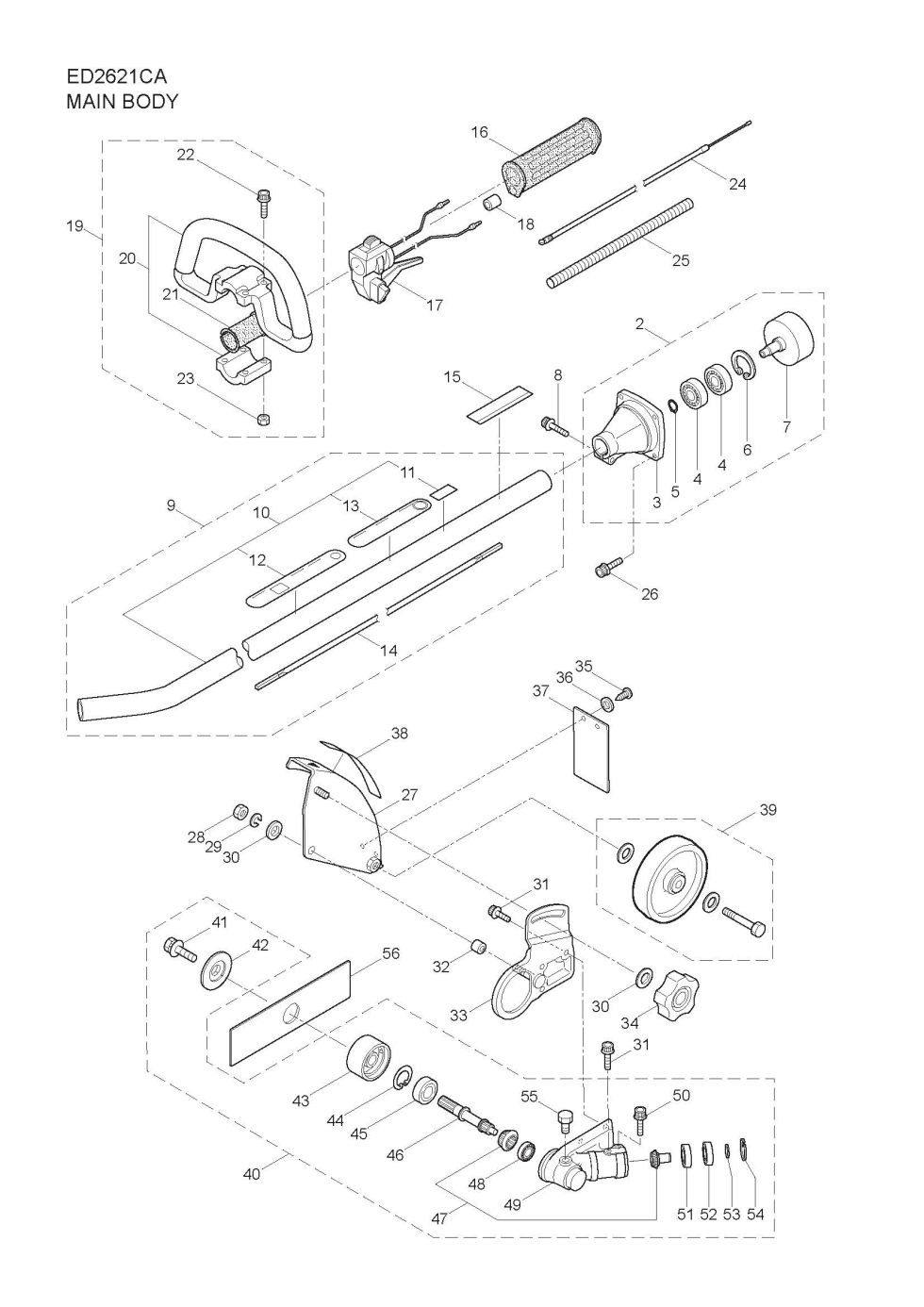

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your ED2621CA. You have selected the Main Body diagram for the Maruyama ED2621CA Edgers. Below you will find an interactive part diagram for the ED2621CA Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the ED2621CA parts not shown in this diagram you may select from one of the other ED2621CA part assemblies or select a different Edgers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Edgers parts.

Position number SKU Product title Price
2 220155 220155 - CLUTCH CASE ASSY
$114.99
3 220156 220156 - CLUTCH CASE
$48.99
4 214161 214161 - USE: 102680
$13.99
5 014210 014210 - C-SHAPED SNAP RING 1
$2.99
6 054676 054676 - SNAP RING
$2.99
7 218588 218588 - CLUTCH DRUM
$42.99
8 261246 261246 - CAP SCREW M5X25
$2.99
9 224556 224556 - DRIVESHAFT/ TUBE ASS
$145.99
10 224557 224557 - DRIVESHAFT HOUSING A
$104.99
11 223926 223926 - LABEL
$6.99
12 221501 221501 - LABEL
$9.99
13 221502 221502 - LABEL
$14.99
14 224555 224555 - DRIVESHAFT
$30.99
16 215532 215532 - SHAFT GRIP
$24.99
17 221465 221465 - THROTTLE TRIGGER
$62.99
18 214083 214083 - OUTER GUIDE
$2.99
19 215601 215601 - LOOP HANDLE ASSY
$27.99
20 214982 214982 - HANDLE ASSY
$28.99
21 213171 213171 - PACKING
$8.99
22 215608 215608 - CAP SCREW
$2.99
23 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
24 213444 213444 - THROTTLE CABLE
$13.99
25 215403 215403 - PLASTIC TUBE
$2.99
26 261250 261250 - BOLT M5X20
$2.99
27 220158 220158 - SHIELD
$36.99
28 126521 126521 - Nut
$2.99
29 126232 126232 - SPRING WASHER
$2.99
30 127216 127216 - WASHER
$2.99
31 215993 215993 - CAP SCREW, ALIGNMENT
$2.99
32 220165 220165 - COLLAR
$2.99
33 229572 229572 - PLATE
$24.99
34 219088 219088 - CLAMPING KNOB
$27.99
35 086053 086053 - TAPPING SCREW
$2.99
36 550163 550163 - WASHER
$2.99
37 220162 220162 - FLAP
$15.99
38 221528 221528 - LABEL
$11.99
39 220160 220160 - WHEEL ASSY
$36.99
40 220168 220168 - GEARCASE ASSY
$194.99
41 215610 215610 - BOLT
$5.99
42 215546 215546 - BOSS B
$14.99
43 220148 220148 - BOSS ADAPTER
$32.99
44 055185 055185 - SNAP RING
$2.99
45 212999 212999 - BEARING
$21.99
46 216056 216056 - BLADE SHAFT
$45.99
47 227101 227101 - GEAR SET
$43.99
48 210554 210554 - BEARING
$9.99
49 219077 219077 - GEARCASE
$51.99
51 210560 210560 - BEARING
$10.99
52 140268 140268 - BEARING
$12.99
53 140269 140269 - USE: 228477
$2.99
54 140270 140270 - SNAP RING
$2.99
55 089101 089101 - BOLT
$2.99
56 216062 216062 - NLA EDGER BLADE
$20.99
