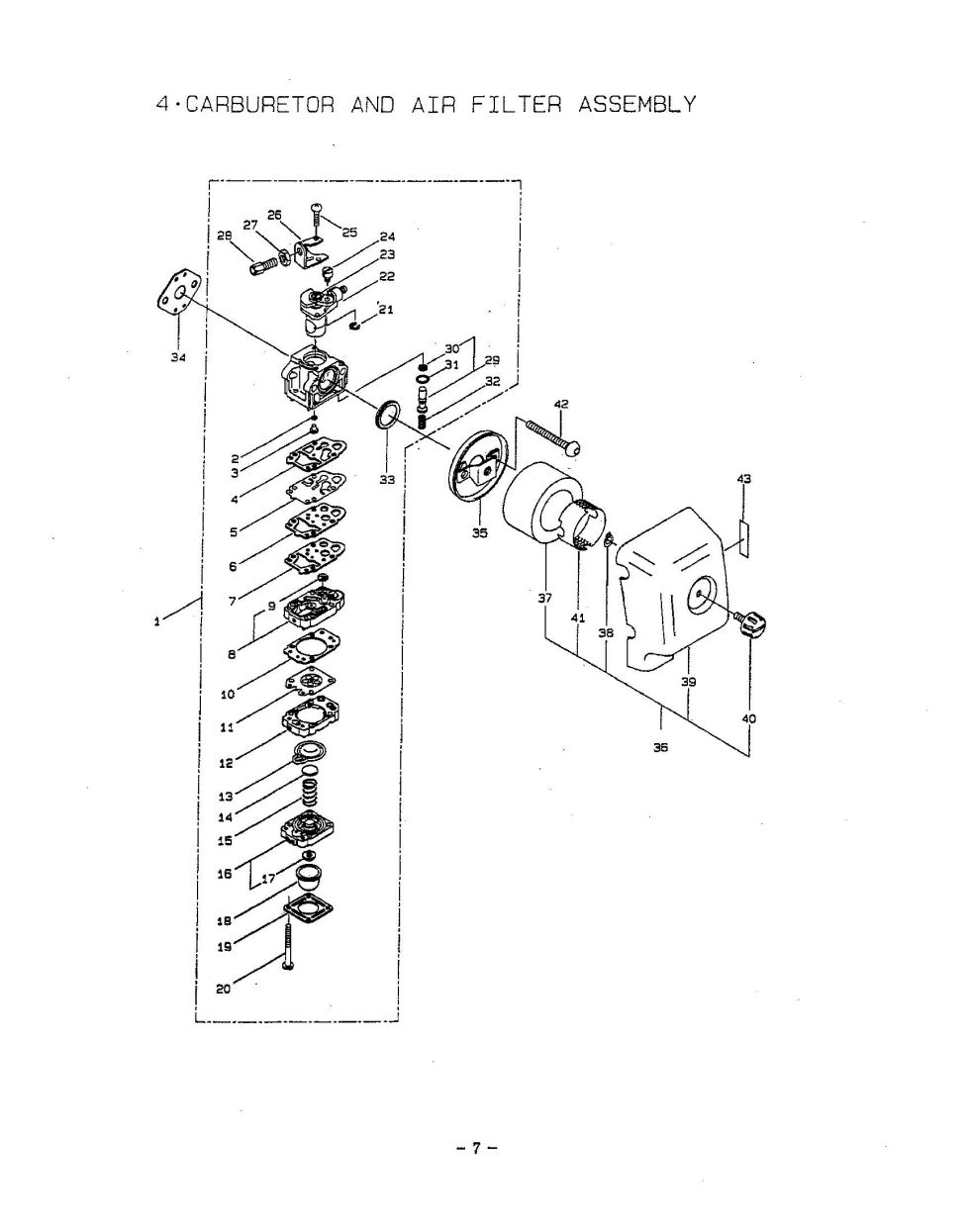

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your ED260. You have selected the Carburetor and Air Filter diagram for the Maruyama ED260 Edgers. Below you will find an interactive part diagram for the ED260 Carburetor and Air Filter. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the ED260 parts not shown in this diagram you may select from one of the other ED260 part assemblies or select a different Edgers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Edgers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3 | 262121 | 262121 - MAIN JET(#41) |
$11.99
|
|
| 4 | 261637 | 261637 - GASKET |
$11.99
|
|
| 5 | 261638 | 261638 - NLA DIAPHRAGM |
$10.99
|
|
| 6 | 261639 | 261639 - NLA PLATE |
$8.99
|
|
| 7 | 261640 | 261640 - NLA GASKET |
$10.99
|
|
| 8 | 261641 | 261641 - NLA PUMP BODY |
$28.99
|
|
| 9 | 261872 | 261872 - SCREEN |
$2.99
|
|
| 10 | 261642 | 261642 - GASKET |
$2.99
|
|
| 11 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 12 | 261643 | 261643 - NLA DIAPHRAGM BODY |
$27.99
|
|
| 13 | 261644 | 261644 - DIAPHRAGM |
$14.99
|
|
| 14 | 261650 | 261650 - HOLDER |
$9.99
|
|
| 15 | 261649 | 261649 - SPRING |
$5.99
|
|
| 16 | 261645 | 261645 - PURGE BODY |
$27.99
|
|
| 17 | 261646 | 261646 - MACHINED DISC |
$6.99
|
|
| 18 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 19 | 261647 | 261647 - PUMP COVER |
$9.99
|
|
| 20 | 261648 | 261648 - NLA SCREW |
$8.99
|
|
| 21 | 261876 | 261876 - E-RING |
$2.99
|
|
| 22 | 261651 | 261651 - NLA THROTTLE VALVE |
$30.99
|
|
| 23 | 261652 | 261652 - PLUG |
$2.99
|
|
| 24 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 25 | 261875 | 261875 - SCREW |
$2.99
|
|
| 26 | 261659 | 261659 - BRACKET |
$11.99
|
|
| 27 | 261878 | 261878 - NUT |
$2.99
|
|
| 28 | 261877 | 261877 - ADJUSTER |
$6.99
|
|
| 29 | 261653 | 261653 - INJECTION BUTTON |
$16.99
|
|
| 30 | 261654 | 261654 - NS GASKET |
No Longer Available Obsolete. |
|
| 31 | 261655 | 261655 - O-RING |
$2.99
|
|
| 32 | 261656 | 261656 - SPRING |
$7.99
|
|
| 33 | 261657 | 261657 - PACKING |
$10.99
|
|
| 34 | 261864 | 261864 - GASKET |
$2.99
|
|
| 35 | 262447 | 262447 - AIR FILTER ASSY |
$20.99
|
|
| 35 | 261090 | 261090 - AIR FILTER PLATE |
$20.99
|
|
| 37 | 261598 | 261598 - ELEMENT |
$7.99
|
|
| 38 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 39 | 261913 | 261913 - CLEANER CASE |
$16.99
|
|
| 40 | 261018 | 261018 - KNOB |
$7.99
|
|
| 41 | 261993 | 261993 - SCREEN |
$8.99
|
|
| 42 | 261814 | 261814 - BOLT |
$2.99
|
|
| 43 | 261803 | 261803 - NLA LABEL |
$6.99
|
