Carburetor (ED2620)

Carburetor (ED2620)

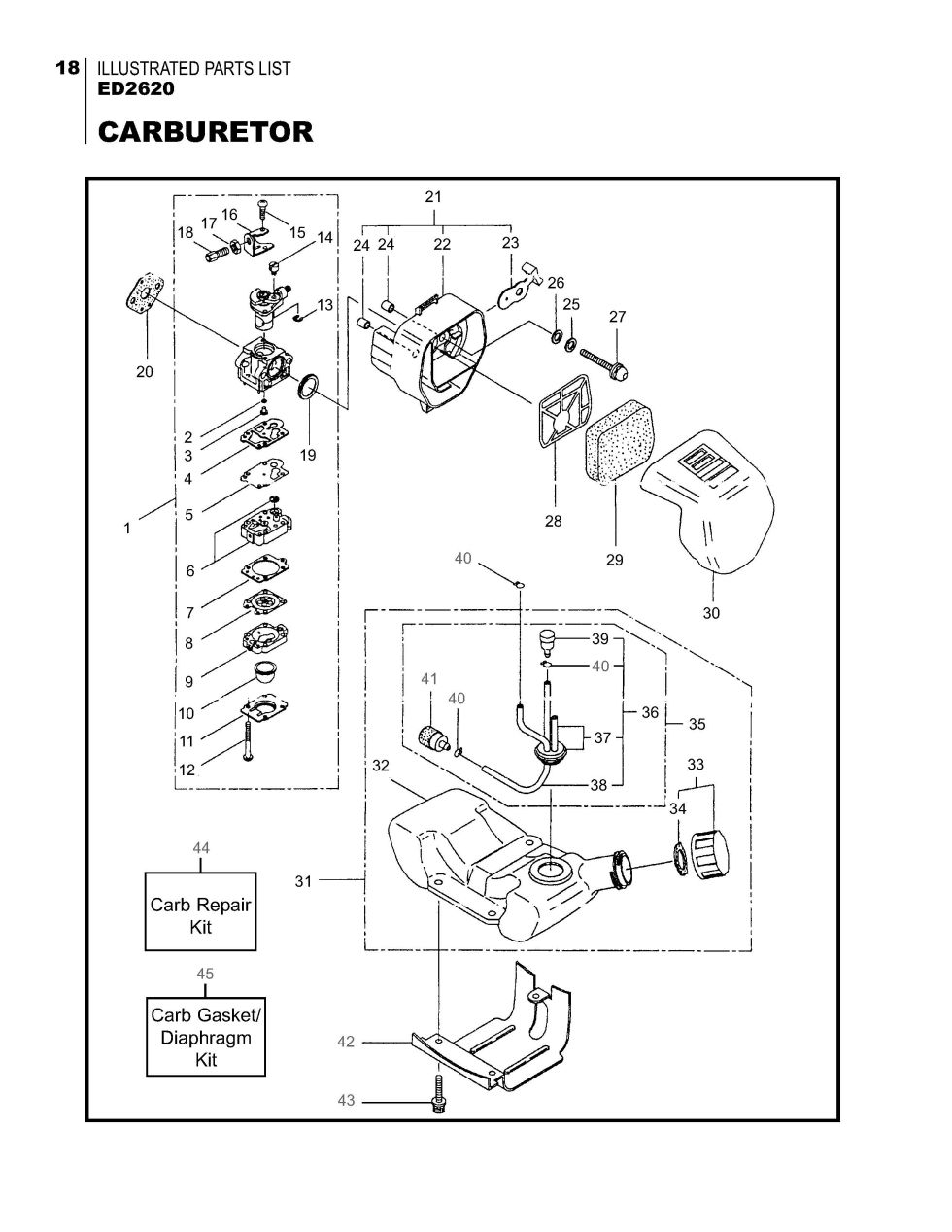

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your ED2320, ED2620. You have selected the Carburetor (ED2620) diagram for the Maruyama ED2320, ED2620 Edgers. Below you will find an interactive part diagram for the ED2320, ED2620 Carburetor (ED2620). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the ED2320, ED2620 parts not shown in this diagram you may select from one of the other ED2320, ED2620 part assemblies or select a different Edgers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Edgers parts.

Position number SKU Product title Price
1 268255 268255 - CARBURETOR
$115.99
2 261871 261871 - O-RING
$2.99
3 268574 268574 - MAIN JET #38
$11.99
4 262995 262995 - GASKET
$13.99
5 262994 262994 - DIAPHRAGM FUEL PUMP
$18.99
6 268499 268499 - PUMP BODY
$47.99
7 262993 262993 - GASKET
$10.99
8 268501 268501 - USE: 283905
$11.99
9 262991 262991 - PURGE BODY
$23.99
10 261874 261874 - PRIMER
$19.99
11 262992 262992 - COVER PLATE
$11.99
12 262996 262996 - SCREW
$2.99
13 261876 261876 - E-RING
$2.99
14 261658 261658 - SWIVEL
$5.99
15 261875 261875 - SCREW
$2.99
16 261659 261659 - BRACKET
$11.99
17 261878 261878 - NUT
$2.99
18 263994 263994 - ADJUSTER
$16.99
19 261657 261657 - PACKING
$10.99
20 261864 261864 - GASKET
$2.99
21 268410 268410 - AIR FILTER CASE ASSY
$11.99
22 268405 268405 - NLA AIR FILTER CASE
$20.99
23 268409 268409 - MACHINED DISC
$15.99
24 268408 268408 - SLEEVE
$2.99
25 263345 263345 - PACKING
$2.99
26 263942 263942 - WASHER
$2.99
27 264016 264016 - CAP SCREW M5X60
$2.99
28 268406 268406 - USE: 265026
$2.99
29 268407 268407 - USE: 287001
$2.99
30 268404 268404 - USE: 268058
$11.99
31 268257 268257 - FUEL TANK ASSY
$76.99
32 268258 268258 - FUEL TANK
$33.99
33 261584 261584 - FUEL TANK CAP ASSY
$15.99
34 261105 261105 - PACKING
$2.99
35 268469 268469 - FUEL PIPE PICKUP ASS
$33.99
36 268470 268470 - FUEL PIPE ASSY
$33.99
37 268519 268519 - USE: 268470
$24.99
38 262649 262649 - FUEL PIPE
$2.99
39 261590 261590 - BREATHER SUB ASSY
$12.99
40 261117 261117 - CLIP
$2.99
42 268260 268260 - STAND
$8.99
43 261250 261250 - BOLT M5X20
$2.99
44 840859 840859 - CARBURETOR REPAIR KI
$30.99
45 840860 840860 - CARBURETOR GASKET KI
$19.99
