Main Body

Main Body

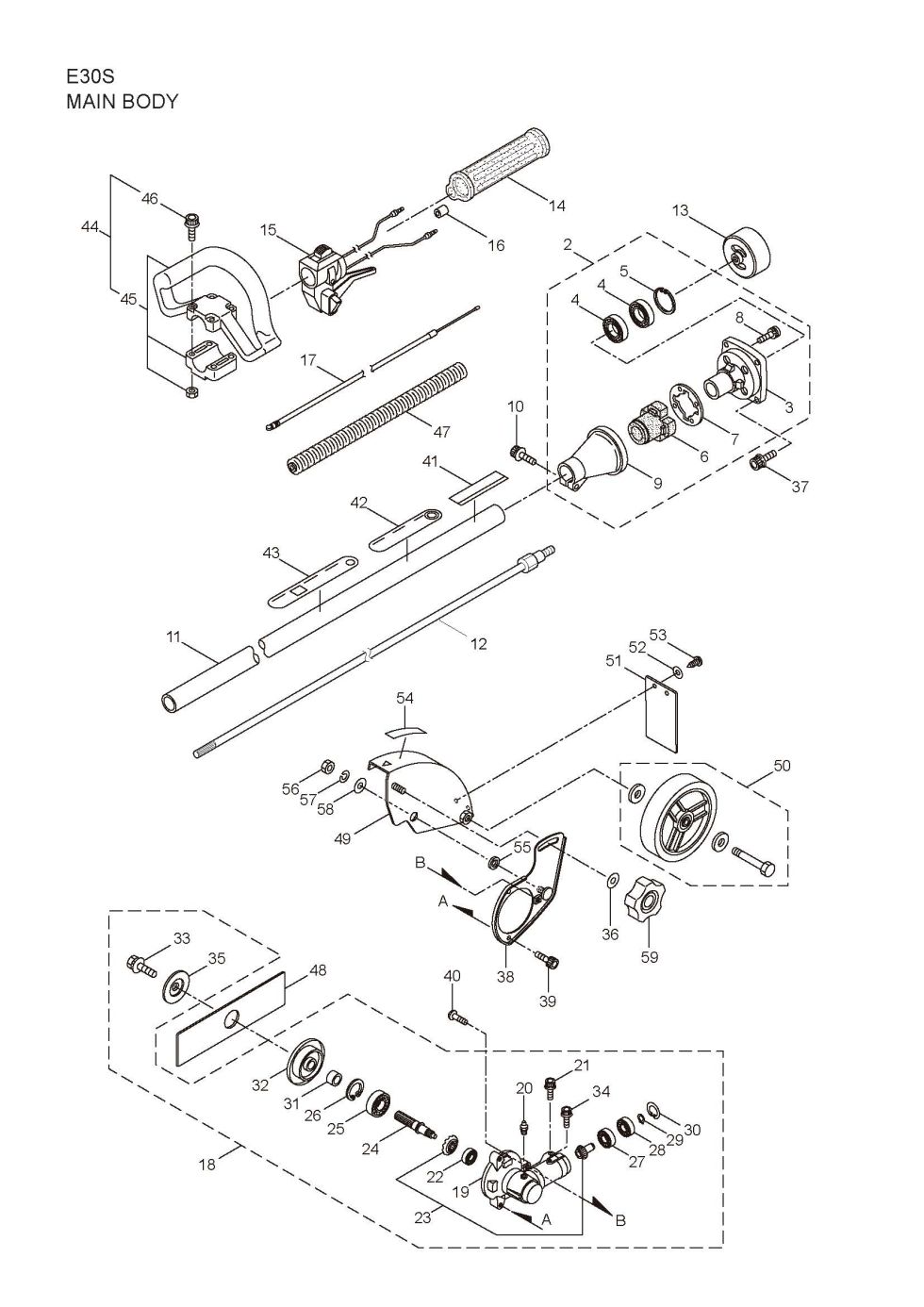

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your E30S. You have selected the Main Body diagram for the Maruyama E30S Edgers. Below you will find an interactive part diagram for the E30S Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the E30S parts not shown in this diagram you may select from one of the other E30S part assemblies or select a different Edgers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Edgers parts.

Position number SKU Product title Price
2 215512 215512 - CLUTCH CASE ASSY
$150.99
3 214592 214592 - BEARING CASE
$39.99
4 214161 214161 - USE: 102680
$13.99
5 054676 054676 - SNAP RING
$2.99
6 214162 214162 - BUFFER
$28.99
7 214163 214163 - WASHER
$11.99
8 092033 092033 - SCREW(M5X15)
$2.99
9 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
10 261246 261246 - CAP SCREW M5X25
$2.99
11 224122 224122 - Driveshaft Tube
$75.99
12 219268 219268 - DRIVESHAFT ASSY
$52.99
13 054677 054677 - CLUTCH DRUM
$32.99
14 215532 215532 - SHAFT GRIP
$24.99
15 221465 221465 - THROTTLE TRIGGER
$62.99
16 214083 214083 - OUTER GUIDE
$2.99
17 213444 213444 - THROTTLE CABLE
$13.99
18 232621 232621 - Gearcase Ass'y
$195.99
19 232631 232631 - Gearcase
$45.99
20 069553 069553 - GREASE FITTING
$2.99
22 210554 210554 - BEARING
$9.99
23 227104 227104 - GEAR SET
$39.99
24 232632 232632 - BLADE SHAFT
$45.99
25 217659 217659 - BEARING #6201 2RK
$21.99
26 016732 016732 - C SHAPED SNAP RING 3
$2.99
27 210560 210560 - BEARING
$10.99
28 140268 140268 - BEARING
$12.99
29 140269 140269 - USE: 228477
$2.99
30 140270 140270 - SNAP RING
$2.99
31 232633 232633 - COLLAR
$7.99
32 232634 232634 - BOSS ADAPTER ASSY
$40.99
33 215610 215610 - BOLT
$5.99
34 215993 215993 - CAP SCREW, ALIGNMENT
$2.99
35 232852 232852 - BOSS B
$14.99
36 127216 127216 - WASHER
$2.99
37 261250 261250 - BOLT M5X20
$2.99
38 232637 232637 - PLATE
$23.99
39 219113 219113 - CAP SCREW(M6X20)
$6.99
40 264217 264217 - CAP SCREW
$2.99
41 232669 232669 - LABEL
$12.99
42 221501 221501 - LABEL
$9.99
43 221502 221502 - LABEL
$14.99
44 227816 227816 - LOOP HANDLE ASSY
$28.99
45 222139 222139 - USE: 222059
$32.99
46 215608 215608 - CAP SCREW
$2.99
47 213548 213548 - PLASTIC TUBE
$2.99
48 216062 216062 - NLA EDGER BLADE
$20.99
49 232639 232639 - SHIELD
$47.99
50 229590 229590 - WHEEL ASSY
$26.99
51 220162 220162 - FLAP
$15.99
52 550163 550163 - WASHER
$2.99
53 128195 128195 - TAPPING SCREW
$2.99
54 221528 221528 - LABEL
$11.99
55 232641 232641 - WASHER
$2.99
56 126521 126521 - Nut
$2.99
57 126232 126232 - SPRING WASHER
$2.99
59 219088 219088 - CLAMPING KNOB
$27.99
