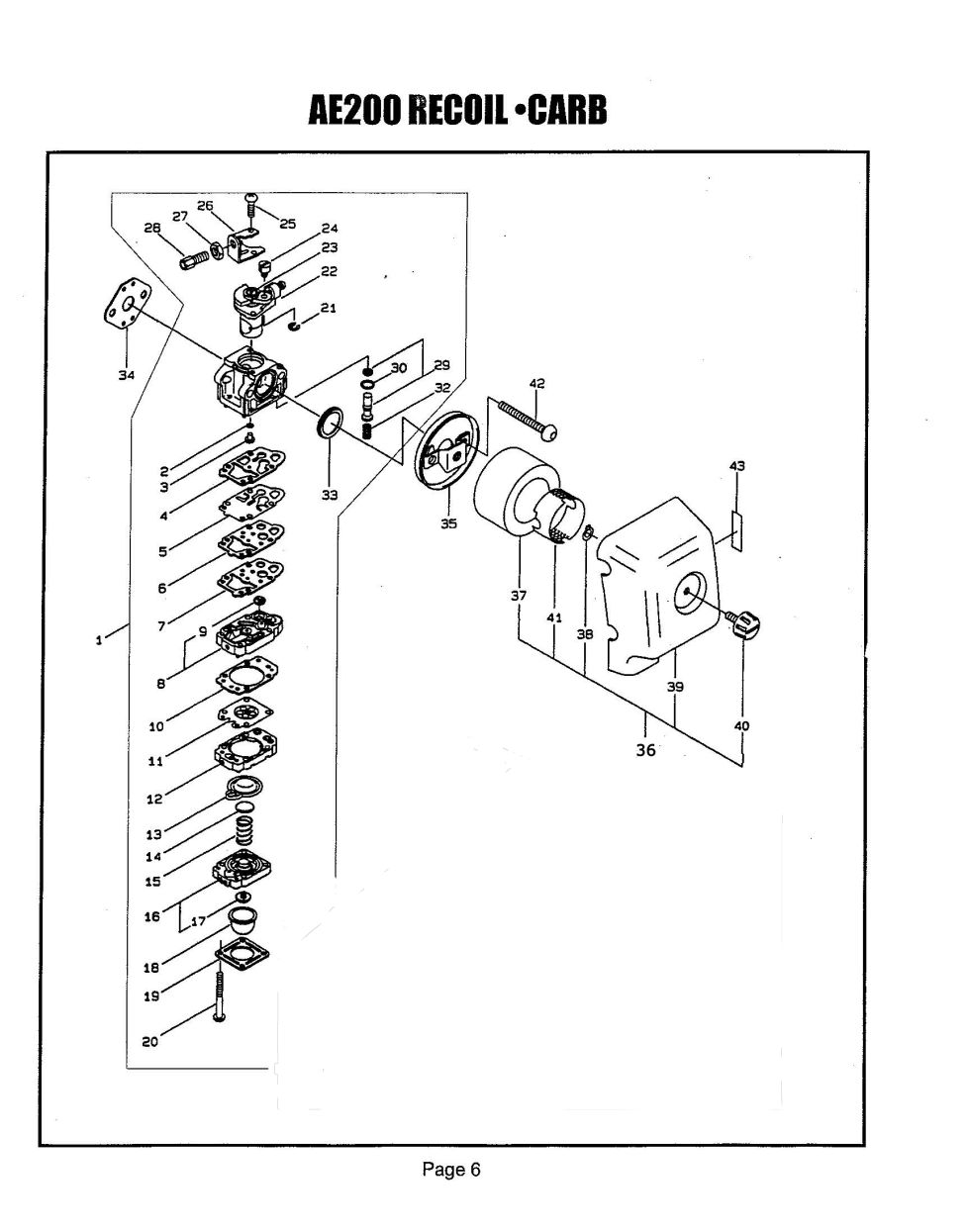

Carburetor

Position number SKU Product title Price
2 261871 261871 - O-RING
$2.99
3 262121 262121 - MAIN JET(#41)
$11.99
4 261636 261636 - NLA JET
$10.99
5 261637 261637 - GASKET
$11.99
6 261638 261638 - NLA DIAPHRAGM
$10.99
7 261639 261639 - NLA PLATE
$8.99
10 261642 261642 - GASKET
$2.99
11 261873 261873 - DIAPHRAGM ASSY
$17.99
12 261643 261643 - NLA DIAPHRAGM BODY
$27.99
13 261644 261644 - DIAPHRAGM
$14.99
14 261650 261650 - HOLDER
$9.99
15 261649 261649 - SPRING
$5.99
16 261645 261645 - PURGE BODY
$27.99
17 261646 261646 - MACHINED DISC
$6.99
18 261874 261874 - PRIMER
$19.99
19 261647 261647 - PUMP COVER
$9.99
20A 263251 263251 - SCREW
$10.99
20B 261648 261648 - NLA SCREW
$8.99
21 261876 261876 - E-RING
$2.99
22 261651 261651 - NLA THROTTLE VALVE
$30.99
23 261652 261652 - PLUG
$2.99
24 261658 261658 - SWIVEL
$5.99
25 260607 260607 - USE: 261875
$2.99
26 261659 261659 - BRACKET
$11.99
27 261878 261878 - NUT
$2.99
28 263994 263994 - ADJUSTER
$16.99
29 261653 261653 - INJECTION BUTTON
$16.99
31 261655 261655 - O-RING
$2.99
32 261656 261656 - SPRING
$7.99
33 261657 261657 - PACKING
$10.99
34 261864 261864 - GASKET
$2.99
35 261090 261090 - AIR FILTER PLATE
$20.99
36 262481 262481 - NLA AIR CLEANER ASSY
$29.99
37 261598 261598 - ELEMENT
$7.99
38 261734 261734 - SNAP RING
$2.99
39 261914 261914 - NLA CLEANER CASE
$13.99
40 261018 261018 - KNOB
$7.99
41 261814 261814 - BOLT
$2.99
43 261803 261803 - NLA LABEL
$6.99
