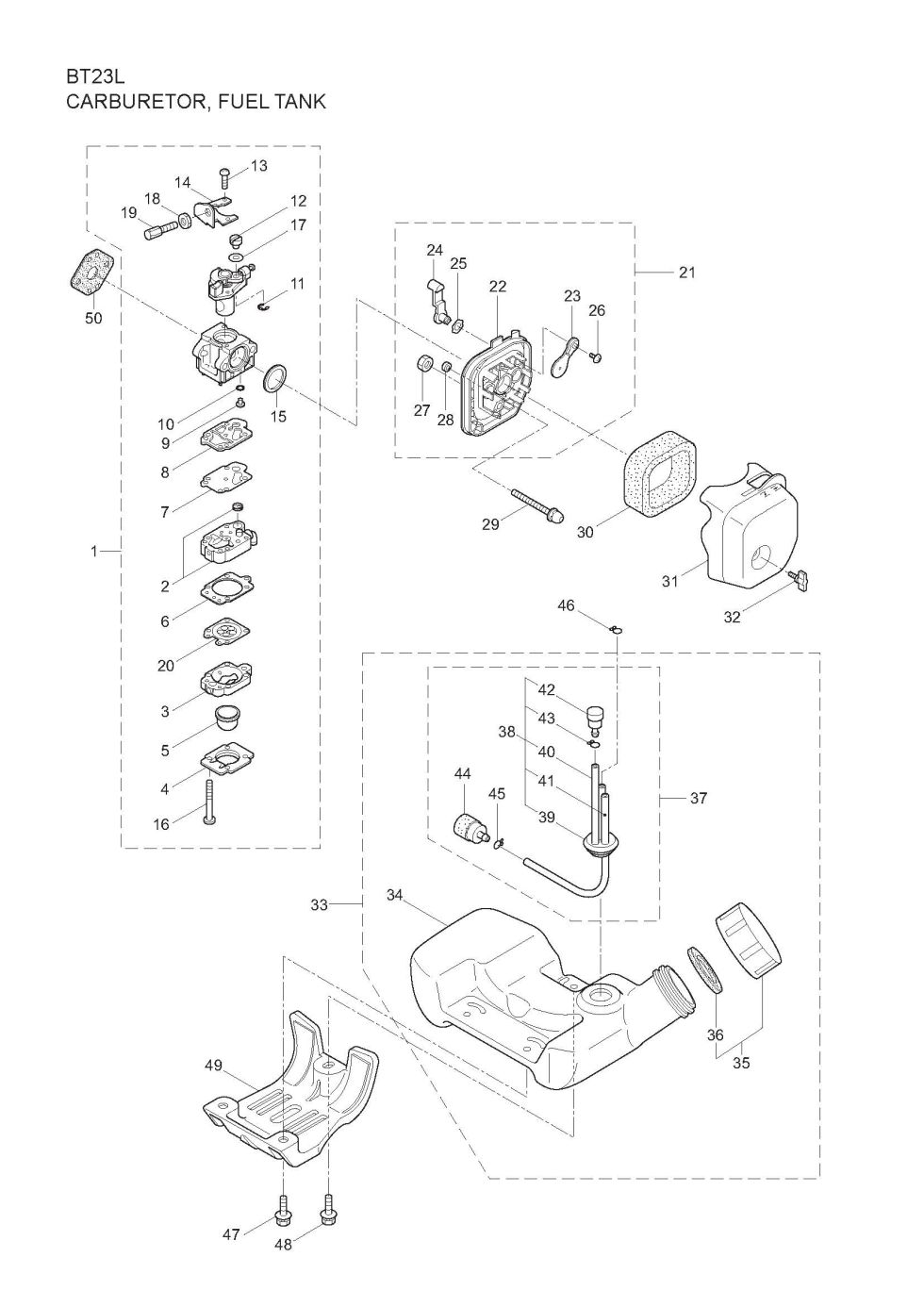

Carburetor, Fuel Tank

Carburetor, Fuel Tank

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BT23L. You have selected the Carburetor, Fuel Tank diagram for the Maruyama BT23L Trimmers and Brushcutters. Below you will find an interactive part diagram for the BT23L Carburetor, Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BT23L parts not shown in this diagram you may select from one of the other BT23L part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
1 286703 286703 - CARBURETOR ASS'Y
$99.99
2 264155 264155 - PUMP BODY
$80.99
3 262991 262991 - PURGE BODY
$23.99
4 262992 262992 - COVER PLATE
$11.99
5 261874 261874 - PRIMER
$19.99
6 262993 262993 - GASKET
$10.99
7 262994 262994 - DIAPHRAGM FUEL PUMP
$18.99
8 282576 282576 - GASKET
$8.99
9 281487 281487 - MAIN JET #37
$12.99
10 261871 261871 - O-RING
$2.99
11 261876 261876 - E-RING
$2.99
12 261658 261658 - SWIVEL
$5.99
13 261875 261875 - SCREW
$2.99
14 264677 264677 - BRACKET
$20.99
15 261657 261657 - PACKING
$10.99
16 262996 262996 - SCREW
$2.99
17 264678 264678 - WASHER
$2.99
18 261878 261878 - NUT
$2.99
19 263994 263994 - ADJUSTER
$16.99
20 283905 283905 - METERRING DIAPHRAGM
$15.99
21 284821 284821 - CASE ASS'Y
$11.99
22 269026 269026 - CASE BODY MC180DX MS
$2.99
23 284802 284802 - Valve
$2.99
24 284803 284803 - LEVER
$2.99
25 284816 284816 - Washer
$2.99
26 269032 269032 - SCREW
$2.99
29 261814 261814 - BOLT
$2.99
30 269030 269030 - ELEMENT
$2.99
31 283772 283772 - CLEANER COVER
$2.99
32 281438 281438 - KNOB
$7.99
33 285690 285690 - FUEL TANK ASSY
$86.99
34 285048 285048 - FUEL TANK (obsolete)
use part #285690
$86.99
35 281565 281565 - FUEL CAP ASSY (obsolete)
use part #275306
$8.99
36 269377 269377 - GASKET (obsolete)
use part #287058
$10.99
37 282334 282334 - FUEL PIPE ASSY
$31.99
38 282335 282335 - FUEL PIPE ASSY
$34.99
39 268065 268065 - GROMMET
$8.99
40 282337 282337 - RETURN PIPE
$15.99
41 282501 282501 - FUEL PIPE
$2.99
42 261590 261590 - BREATHER SUB ASSY
$12.99
43 261117 261117 - CLIP
$2.99
47 281714 281714 - SCREW
$2.99
48 281715 281715 - CAP SCREW
$2.99
49 281447 281447 - STAND
$9.99
50 261864 261864 - GASKET
$2.99
