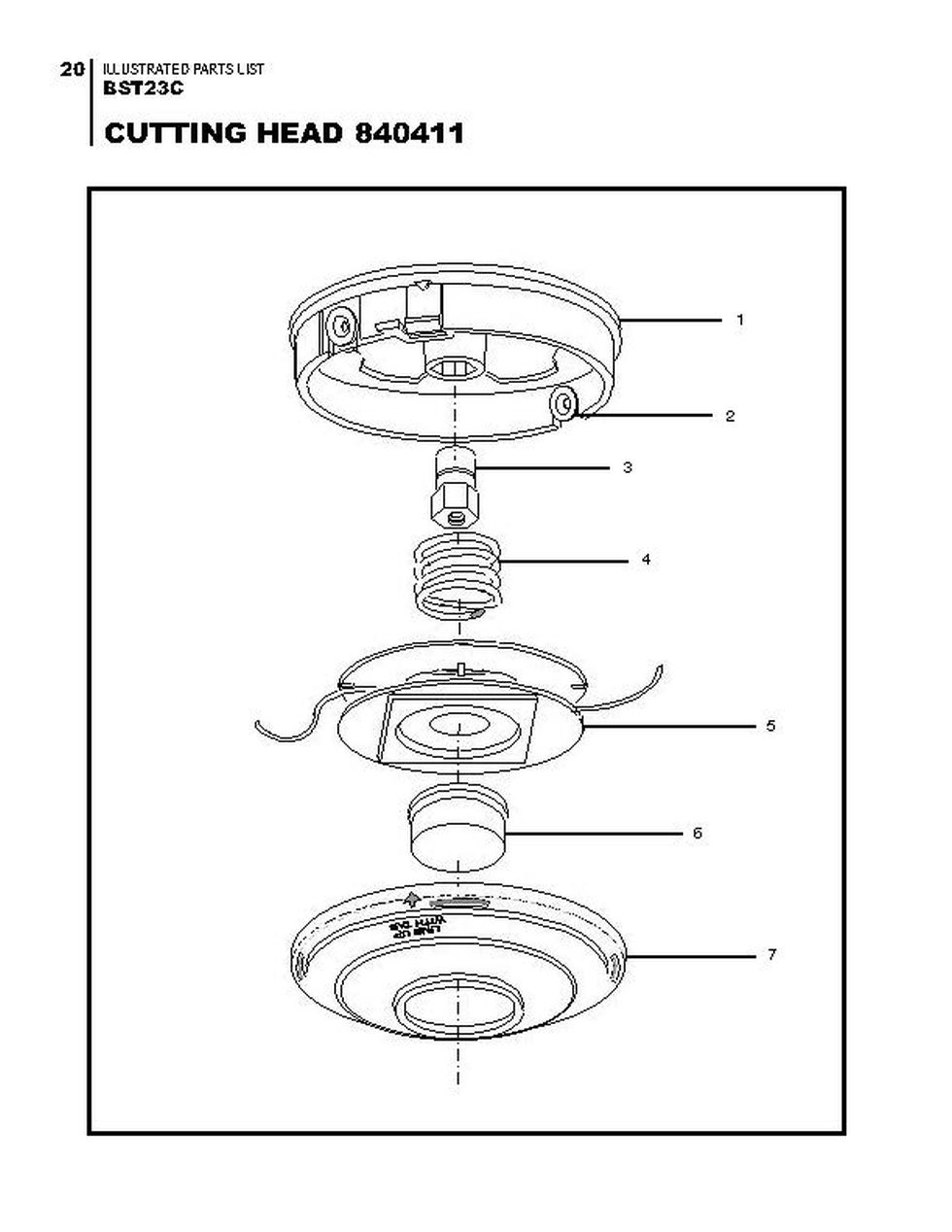

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BST23C. You have selected the Cutting Head diagram for the Maruyama BST23C Trimmers and Brushcutters. Below you will find an interactive part diagram for the BST23C Cutting Head. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BST23C parts not shown in this diagram you may select from one of the other BST23C part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 840425 | 840425 - NLA SN-341R HOUSING |
$22.99
|
|
| 2 | 840404 |
840404 - USE: 841208 (obsolete) use part #841208 |
$2.99
|
|
| 3 | 840405 | 840405 - SN-356 NUT |
$12.99
|
|
| 4 | 840424 | 840424 - SPRING |
$2.99
|
|
| 5 | 840423 | 840423 - SN 349R SPOOL |
$17.99
|
|
| 6 | 840422 | 840422 - SN-357 BUTTON |
$10.99
|
|
| 7 | 840421 | 840421 - COVER |
$24.99
|
