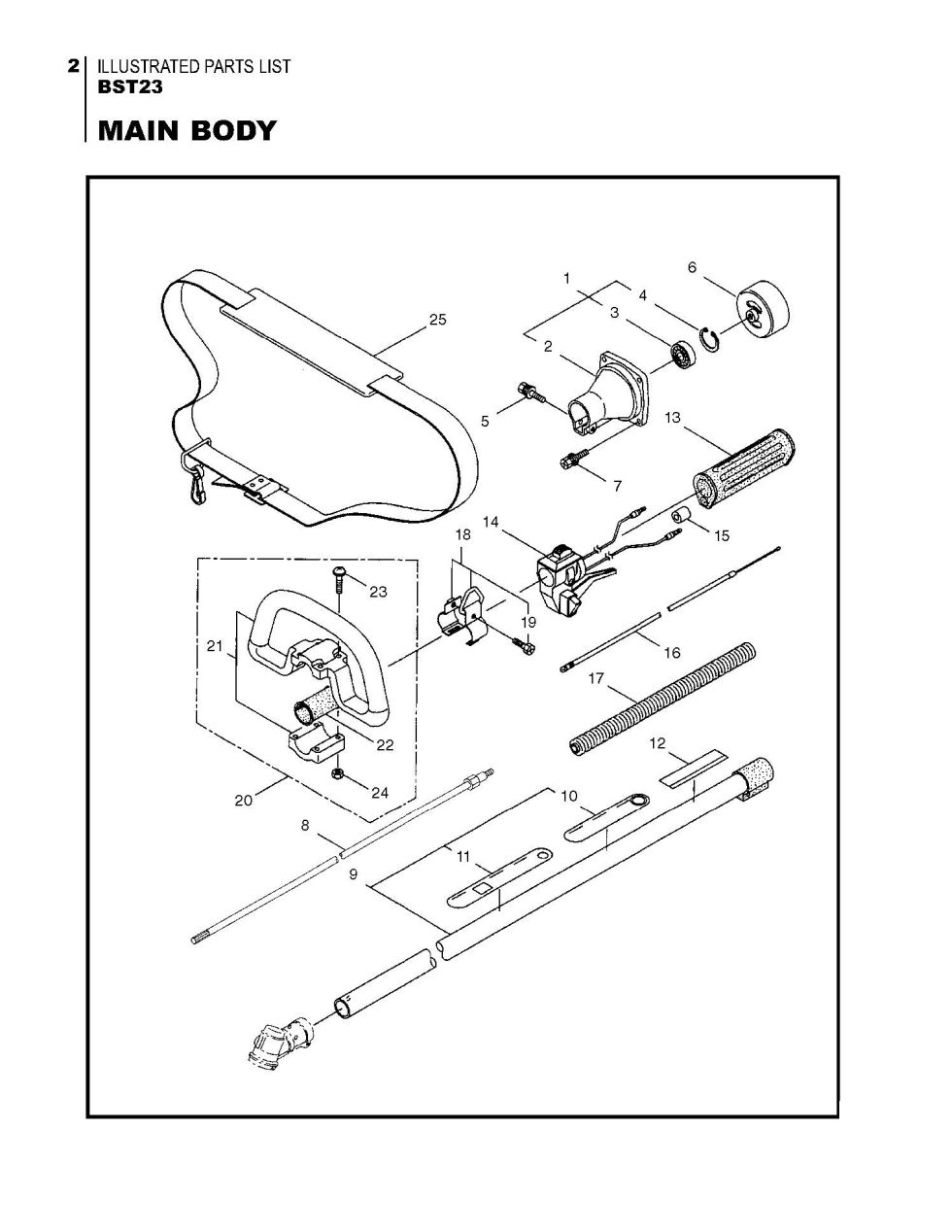

BST23 Main Body

BST23 Main Body

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BST23. You have selected the BST23 Main Body diagram for the Maruyama BST23 Trimmers and Brushcutters. Below you will find an interactive part diagram for the BST23 BST23 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BST23 parts not shown in this diagram you may select from one of the other BST23 part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
1 221473 221473 - CLUTCH CASE ASSY
$50.99
2 221474 221474 - CLUTCH CASE
$38.99
3 016405 016405 - BEARING
$22.99
4 013825 013825 - C-SHAPED SNAP RING
$2.99
5 096042 096042 - BOLT (M5X30)
$2.99
6 054677 054677 - CLUTCH DRUM
$32.99
7 817002 817002 - BOLT
$2.99
8 226399 226399 - DRIVESHAFT ASSY.
$30.99
9 222922 222922 - DRIVESHAFT TUBE ASSY
$151.99
10 221501 221501 - LABEL
$9.99
11 221502 221502 - LABEL
$14.99
12 226402 226402 - MODEL DECAL(BST23)
$14.99
13 215532 215532 - SHAFT GRIP
$24.99
14 222953 222953 - THROTTLE TRIGGER (obsolete)
use part #221465
$62.99
15 214083 214083 - OUTER GUIDE
$2.99
16 223051 223051 - THROTTLE CABLE
$9.99
17 223052 223052 - PLASTIC TUBE
$2.99
18 054691 054691 - HANGING BRACKET ASSY
$13.99
19 089738 089738 - BOLT
$2.99
20 214224 214224 - HANDLE ASSY
$27.99
21 214982 214982 - HANDLE ASSY
$28.99
22 213171 213171 - PACKING
$8.99
23 222142 222142 - SCREW M5X28
$2.99
24 081027 081027 - NUT M5
$2.99
25 222955 222955 - HANGING STRAP ASSY.
$24.99
