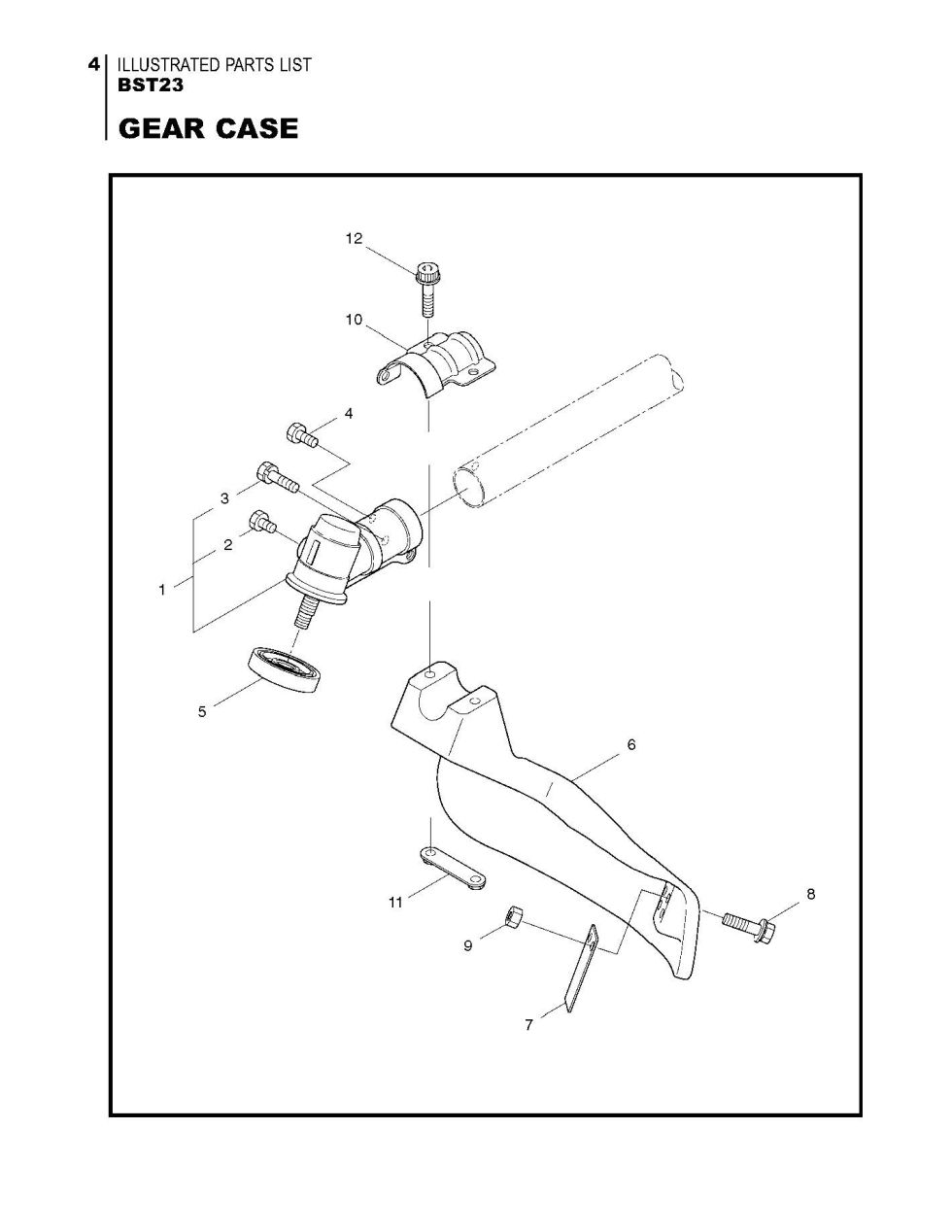

BST23 Gearcase

BST23 Gearcase

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BST23. You have selected the BST23 Gearcase diagram for the Maruyama BST23 Trimmers and Brushcutters. Below you will find an interactive part diagram for the BST23 BST23 Gearcase. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BST23 parts not shown in this diagram you may select from one of the other BST23 part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
1 226401 226401 - GEARCASE ASSY.
$145.99
2 225897 225897 - BOLT
$2.99
3 092561 092561 - BOLT
$2.99
5 225891 225891 - BOSS ADAPTER
$23.99
6 225961 225961 - SAFETY COVER
$27.99
7 222900 222900 - NLA STRING CUTTER
$8.99
8 092548 092548 - BOLT M5X15
$2.99
9 081027 081027 - NUT M5
$2.99
10 225962 225962 - BRACKET
$7.99
11 225963 225963 - THREADED BRACKET
$2.99
12 096042 096042 - BOLT (M5X30)
$2.99
