 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

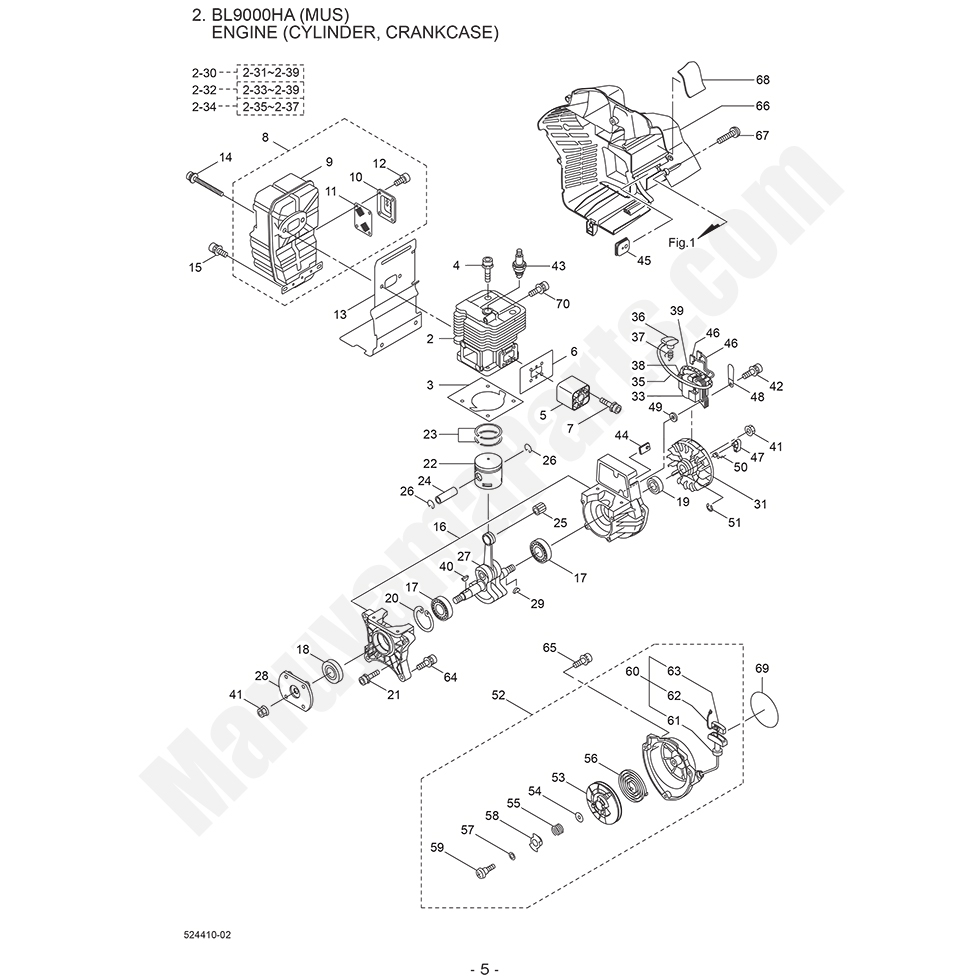

-03.jpg) |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 275765 | 275765 CYLINDER COMP BL9000 |
$172.99
|
|
| 3 | 275760 | 275760 - GASKET BL9000 |
$17.99
|
|
| 4 | 261246 | 261246 - CAP SCREW M5X25 |
$2.99
|
|
| 5 | 276109 | 276109 - INSULATOR BL9000 |
$21.99
|
|
| 6 | 276110 | 276110 - GASKET BL9000 |
$2.99
|
|
| 7 | 277832 | 277832-CAP-SCREW-BL9000 |
$2.99
|
|
| 8 | 275758 | 275758 |
$42.99
|
|
| 12 | 265107 | 265107 - BOLT |
$2.99
|
|
| 13 | 276111 |
$20.99
|
||
| 14 | 261607 | 261607 - BOLT M5X16 |
$2.99
|
|
| 15 | 276154 |
$5.99
|
||
| 16 | 276112 |
$88.99
|
||
| 17 | 276117 | 276117 - Bearing |
$17.99
|
|
| 18 | 276118 |
$17.99
|
||
| 19 | 262565 |
262565 - OIL SEAL (obsolete) use part #246471 |
$11.99
|
|
| 20 | 276119 |
$2.99
|
||
| 21 | 234636 |
$2.99
|
||
| 22 | 277475 | 277475 - PISTON BL9000 |
$45.99
|
|
| 23 | 275757 | 275757 - PISTON RING BL9000 |
$15.99
|
|
| 24 | 278019 |
$22.99
|
||
| 25 | 278471 |
$19.99
|
||
| 26 | 276122 |
$2.99
|
||
| 27 | 276123 |
$132.99
|
||
| 28 | 276129 |
$31.99
|
||
| 29 | 261076 | 261076 - WOODRUFF KEY |
$2.99
|
|
| 30 | 276100 |
$82.99
|
||
| 31 | 276032 |
276032 ROTOR BL9000 (obsolete) use part #279232 |
$30.99
|
|
| 32 | 276465 |
276465 - Ignition Coil Assemb (obsolete) use part #279233 |
$75.99
|
|
| 33 | 267401 | 267401 - IGNITION COIL |
$58.99
|
|
| 34 | 276466 |
$20.99
|
||
| 35 | 276467 | 276467 |
$17.99
|
|
| 36 | 282292 | 282292 - BOOT |
$11.99
|
|
| 37 | 261075 | 261075 - CONNECTOR |
$2.99
|
|
| 38 | 261072 | 261072 - CAP |
$2.99
|
|
| 39 | 276468 |
$15.99
|
||
| 41 | 276302 | 276302 - NUT |
$2.99
|
|
| 42 | 281211 | 281211 - CAP SCREW |
$2.99
|
|
| 44 | 285549 | 285549 - GROMMET |
$2.99
|
|
| 45 | 285807 | 285807 |
$5.99
|
|
| 46 | 281864 | 281864 - LEAD |
$5.99
|
|
| 47 | 276133 | 276133 |
$2.99
|
|
| 48 | 277770 |
$2.99
|
||
| 49 | 289481 | 289481 - SPACER |
$2.99
|
|
| 50 | 262637 | 262637 - RETURN SPRING |
$2.99
|
|
| 51 | 262638 | 262638 - E-RING |
$2.99
|
|
| 52 | 276131 | 276131 - Recoil Assembly |
$68.99
|
|
| 53 | 276035 |
$19.99
|
||
| 54 | 276036 |
$11.99
|
||
| 55 | 276037 |
$6.99
|
||
| 56 | 276038 |
$23.99
|
||
| 57 | 276039 |
$2.99
|
||
| 58 | 276040 |
$12.99
|
||
| 59 | 276041 |
$2.99
|
||
| 60 | 276042 |
$24.99
|
||
| 61 | 276043 |
$7.99
|
||
| 62 | 262633 | 262633 - STARTER KNOB |
$8.99
|
|
| 63 | 262981 | 262981 - CAP |
$2.99
|
|
| 64 | 275877 | 275877 |
$2.99
|
|
| 65 | 268940 | 268940 - SCREW |
$2.99
|
|
| 66 | 276163 |
$75.99
|
||
| 67 | 131523 | 131523 - TAPPING SCREW |
$2.99
|
|
| 68 | 277462 |
$6.99
|
||
| 69 | 275979 | 275979 |
$20.99
|
|
| 70 | 264223 | 264223 - CAP SCREW(M5X40) |
$2.99
|
