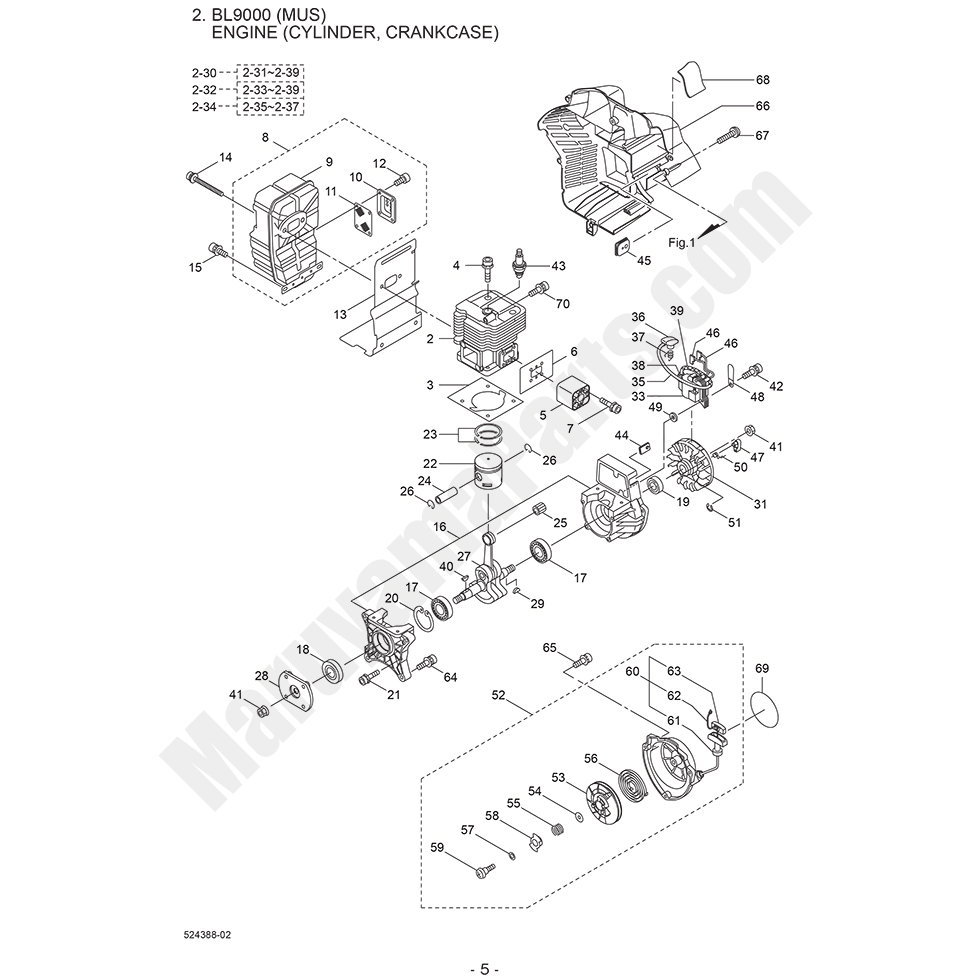

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL9000. You have selected the Engine diagram for the Maruyama BL9000 Blowers. Below you will find an interactive part diagram for the BL9000 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL9000 parts not shown in this diagram you may select from one of the other BL9000 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
2 275765 275765 CYLINDER COMP BL9000
$172.99
3 275760 275760 - GASKET BL9000
$17.99
4 261246 261246 - CAP SCREW M5X25
$2.99
5 276109 276109 - INSULATOR BL9000
$21.99
6 276110 276110 - GASKET BL9000
$2.99
7 277832 277832-CAP-SCREW-BL9000
$2.99
8 275758 275758
$42.99
12 265107 265107 - BOLT
$2.99
13 276111
$20.99
14 261607 261607 - BOLT M5X16
$2.99
15 276154
$5.99
16 276112
$88.99
17 276117 276117 - Bearing
$17.99
18 276118
$17.99
19 262565 262565 - OIL SEAL (obsolete)
use part #246471
$11.99
20 276119
$2.99
21 234636
$2.99
22 277475 277475 - PISTON BL9000
$45.99
23 275757 275757 - PISTON RING BL9000
$15.99
24 278019
$22.99
25 278012
$18.99
26 276122
$2.99
27 276123
$132.99
28 276129
$31.99
29 261076 261076 - WOODRUFF KEY
$2.99
30 276100
$82.99
31 276032 276032 ROTOR BL9000 (obsolete)
use part #279232
$30.99
32 276465 276465 - Ignition Coil Assemb (obsolete)
use part #279233
$75.99
33 267401 267401 - IGNITION COIL
$58.99
34 276466
$20.99
35 276467 276467
$17.99
36 282292 282292 - BOOT
$11.99
37 261075 261075 - CONNECTOR
$2.99
38 261072 261072 - CAP
$2.99
39 276468
$15.99
41 276302 276302 - NUT
$2.99
42 281211 281211 - CAP SCREW
$2.99
44 285549 285549 - GROMMET
$2.99
45 285807 285807
$5.99
46 281864 281864 - LEAD
$5.99
47 276133 276133
$2.99
48 277770
$2.99
49 289481 289481 - SPACER
$2.99
50 262637 262637 - RETURN SPRING
$2.99
51 262638 262638 - E-RING
$2.99
52 276131 276131 - Recoil Assembly
$68.99
53 276035
$19.99
54 276036
$11.99
55 276037
$6.99
56 276038
$23.99
57 276039
$2.99
58 276040
$12.99
59 276041
$2.99
60 276042
$24.99
61 276043
$7.99
62 262633 262633 - STARTER KNOB
$8.99
63 262981 262981 - CAP
$2.99
64 275877 275877
$2.99
65 268940 268940 - SCREW
$2.99
66 276163
$75.99
67 131523 131523 - TAPPING SCREW
$2.99
68 277462
$6.99
69 275979 275979
$20.99
70 264223 264223 - CAP SCREW(M5X40)
$2.99
