 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

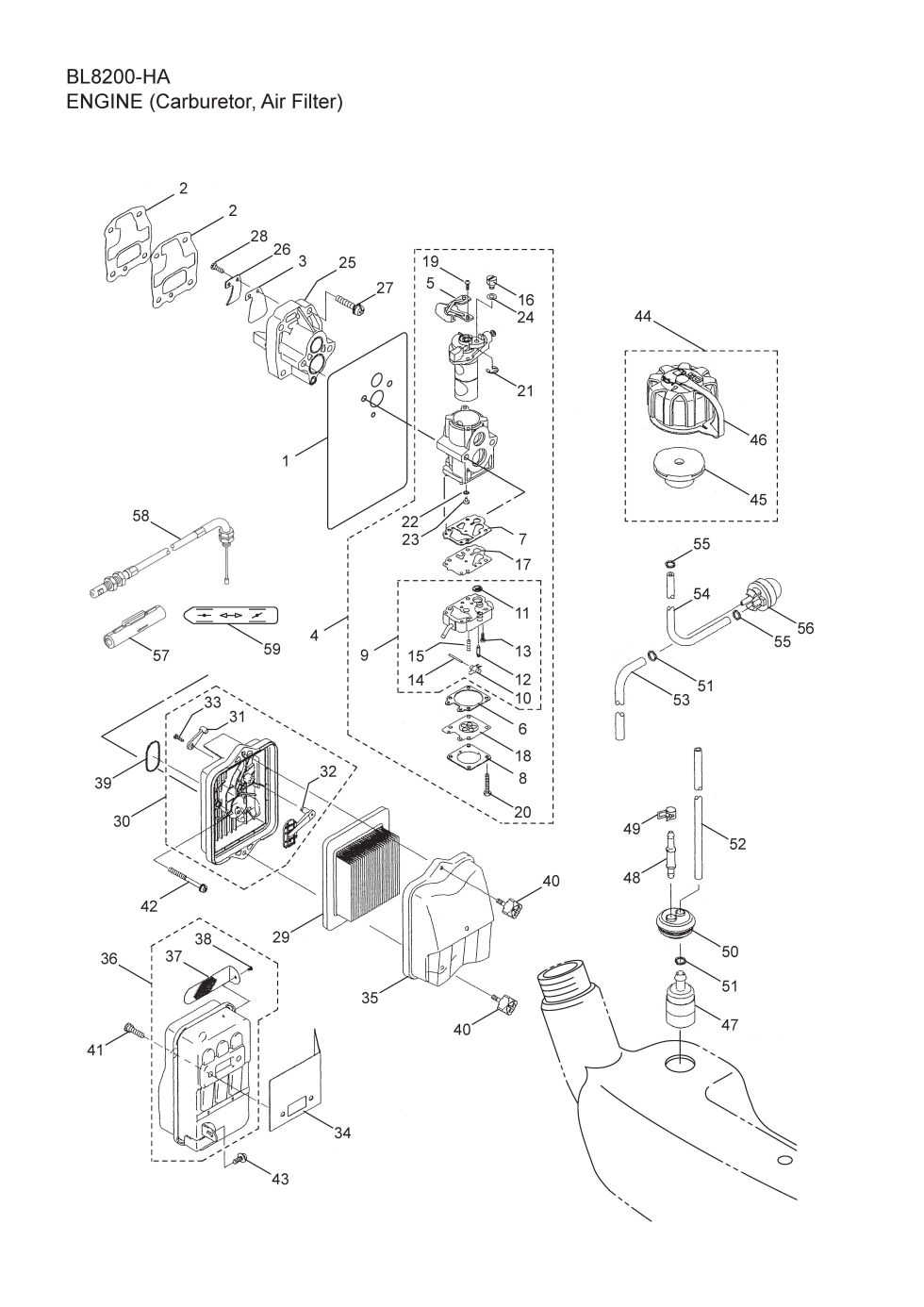

-01.jpg) |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 412446 | 412446 - GASKET |
$22.99
|
|
| 2 | 400925 | 400925 - GASKET |
$14.99
|
|
| 3 | 649342 | 649342 - REED VALVE |
$15.99
|
|
| 4 | 649344 |
649344 - USE: CAWYA59 (obsolete) use part #426098 |
$144.99
|
|
| 5 | 649338 | 649338 - BRACKET |
$29.99
|
|
| 6 | 649339 | 649339 - GASKET |
$13.99
|
|
| 7 | 634350 | 634350 - GASKET |
$18.99
|
|
| 8 | 649343 | 649343 - COVER |
$19.99
|
|
| 9 | 649346 | 649346 - BODY |
$72.99
|
|
| 10 | 624429 | 624429 - LEVER |
$19.99
|
|
| 11 | 624430 | 624430 - FILTER |
$23.99
|
|
| 12 | 624431 | 624431 - FLOAT VALVE |
$18.99
|
|
| 13 | 624432 | 624432 - SCREW |
$11.99
|
|
| 14 | 624433 | 624433 - PIN |
$8.99
|
|
| 15 | 624434 | 624434 - SPRING |
$13.99
|
|
| 16 | 598415 | 598415 - ARM |
$21.99
|
|
| 17 | 577185 | 577185 - DIAPHRAGM |
$18.99
|
|
| 18 | 634357 | 634357 - DIAPHRAGM |
$29.99
|
|
| 19 | 577179 | 577179 - SCREW |
$8.99
|
|
| 20 | 649348 | 649348 - SCREW |
$5.99
|
|
| 21 | 577175 | 577175 - SNAP RING |
$8.99
|
|
| 22 | 577182 | 577182 - USE: 261871 |
$8.99
|
|
| 23 | 649349 | 649349 - MAIN JET #55.5 |
$24.99
|
|
| 24 | 624532 | 624532 - WASHER |
$7.99
|
|
| 25 | 400926 | 400926 - INSULATOR |
$21.99
|
|
| 26 | 649347 | 649347 - STOPPER |
$2.99
|
|
| 27 | 577361 | 577361 - SCREW |
$2.99
|
|
| 28 | 649350 | 649350 - SCREW |
$2.99
|
|
| 29 | 649351 |
649351 - USE: 426099 (obsolete) use part #426099 |
$35.99
|
|
| 30 | 414447 |
414447 - NLA FILTER COVER ASS (obsolete) use part #415372 |
$54.99
|
|
| 31 | 649355 | 649355 - LEVER |
$11.99
|
|
| 32 | 649356 | 649356 - VALVE |
$11.99
|
|
| 33 | 649358 | 649358 - SCREW |
$2.99
|
|
| 34 | 649353 | 649353 - USE: 426101 |
$22.99
|
|
| 35 | 649354 | 649354 - CAP, AIR FILTER |
$37.99
|
|
| 36 | 649357 | 649357 - USE: 415373 |
$118.99
|
|
| 37 | 400927 | 400927 - SPARK ARRESTER |
$8.99
|
|
| 38 | 400918 | 400918 - SCREW |
$2.99
|
|
| 39 | 649359 | 649359 - USE: 423450 |
$2.99
|
|
| 40 | 649360 |
649360 - USE: 419574 (obsolete) use part #419574 |
$13.99
|
|
| 41 | 414450 | 414450 - BOLT |
$2.99
|
|
| 42 | 414451 | 414451 - Screw |
$2.99
|
|
| 43 | 414452 | 414452 - SCREW |
$2.99
|
|
| 44 | 414453 |
414453 - USE: 425443 (obsolete) use part #425443 |
$51.99
|
|
| 45 | 649362 |
649362 - USE: 630564 (obsolete) use part #425442 |
$29.99
|
|
| 46 | 649364 | 649364 - FUEL CAP |
$26.99
|
|
| 47 | 625872 | 625872 - FILTER, FUEL |
$28.99
|
|
| 48 | 632199 | 632199 - JOINT |
$7.99
|
|
| 49 | 944177 | 944177 - CLAMP |
$2.99
|
|
| 50 | 597949 | 597949 - GROMMET |
$18.99
|
|
| 51 | 649366 | 649366 - CLAMP |
$2.99
|
|
| 52 | 649369 | 649369 - TUBE |
$20.99
|
|
| 53 | 649367 | 649367 - USE: 415375 |
$7.99
|
|
| 54 | 649368 | 649368 - TUBE |
$2.99
|
|
| 55 | 649365 | 649365 - CLAMP |
$2.99
|
|
| 56 | 649363 |
649363 - USE: 415374 (obsolete) use part #415374 |
$30.99
|
|
| 57 | 212250 | 212250 - CASE |
$5.99
|
|
| 58 | 649337 | 649337 - THROTTLE CABLE |
$27.99
|
|
| 59 | 598438 | 598438 - NLA LABEL |
$2.99
|
