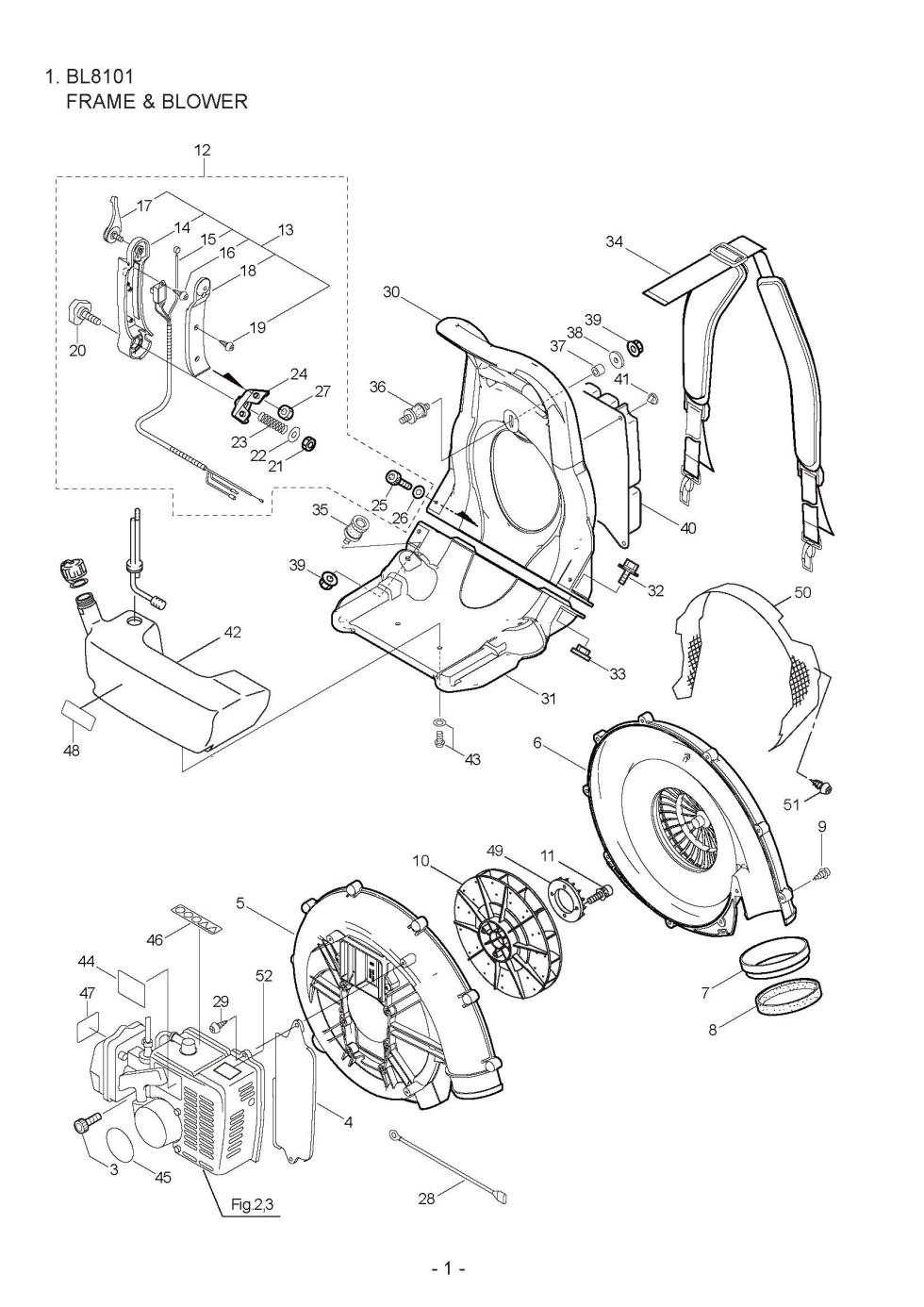

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL8101. You have selected the Frame and Blower diagram for the Maruyama BL8101 Blowers. Below you will find an interactive part diagram for the BL8101 Frame and Blower. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL8101 parts not shown in this diagram you may select from one of the other BL8101 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 3 | 125588 | 125588 - BOLT |
$2.99
|
|
| 4 | 125404 | 125404 - GASKET |
$16.99
|
|
| 5 | 125405 | 125405 - FAN CASE / ENGINE SI |
$56.99
|
|
| 6 | 125410 | 125410 - FAN CASE / FRAME SID |
$46.99
|
|
| 7 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 8 | 119161 | 119161 - BAND |
$7.99
|
|
| 9 | 089538 | 089538 - SCREW |
$2.99
|
|
| 10 | 127897 | 127897 - FAN |
$40.99
|
|
| 11 | 126897 | 126897 - BOLT 5X35 |
$2.99
|
|
| 12 | 125421 | 125421 - THROTTLE ASSY |
$57.99
|
|
| 13 | 125445 | 125445 - ARM ASSY |
$55.99
|
|
| 14 | 123497 | 123497 - ARM |
$29.99
|
|
| 15 | 125446 | 125446 - THROTTLE WIRE |
$41.99
|
|
| 16 | 120502 | 120502 - TAPPING SCREW |
$2.99
|
|
| 17 | 125783 | 125783 - THROTTLE LEVER |
$20.99
|
|
| 18 | 123498 | 123498 - COVER |
$19.99
|
|
| 19 | 120517 | 120517 - TAPPING SCREW |
$2.99
|
|
| 20 | 110271 | 110271 - BOLT |
$16.99
|
|
| 21 | 107581 | 107581 - NYLON NUT |
$2.99
|
|
| 22 | 065413 | 065413 - WASHER |
$2.99
|
|
| 23 | 120721 | 120721 - SPRING |
$2.99
|
|
| 24 | 125423 | 125423 - HOLDER |
$8.99
|
|
| 25 | 125589 | 125589 - CAP SCREW |
$2.99
|
|
| 26 | 015479 | 015479 - WASHER |
$2.99
|
|
| 27 | 125621 | 125621 - NUT |
$2.99
|
|
| 28 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 29 | 127295 | 127295 - SCREW |
$2.99
|
|
| 30 | 125427 | 125427 - BACKPACK FRAME A |
$37.99
|
|
| 31 | 125429 | 125429 - BACKPACK FRAME B |
$35.99
|
|
| 32 | 127301 | 127301 - BOLT |
$2.99
|
|
| 33 | 127228 | 127228 - NUT |
$2.99
|
|
| 34 | 125432 | 125432 - SHOULDER STRAP ASSY |
$33.99
|
|
| 35 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 36 | 101877 | 101877 - BUFFER |
$21.99
|
|
| 37 | 120616 | 120616 - SPACER |
$2.99
|
|
| 38 | 120617 | 120617 - WASHER |
$2.99
|
|
| 40 | 119177 | 119177 - PAD |
$31.99
|
|
| 41 | 100749 | 100749 - PAD RETAINER |
$2.99
|
|
| 42 | 127673 | 127673 - FUEL TANK |
$31.99
|
|
| 43 | 125561 | 125561 - SCREW |
$2.99
|
|
| 44 | 129166 | 129166 - LABEL BL8101 |
$16.99
|
|
| 45 | 123954 | 123954 - LABEL |
$2.99
|
|
| 46 | 266959 | 266959 - LABEL |
$6.99
|
|
| 47 | 125757 | 125757 - THROTTLE CABLE ASSY |
$56.99
|
|
| 48 | 121132 | 121132 - LABEL(BP400) |
$5.99
|
|
| 49 | 127875 | 127875 - RING |
$23.99
|
|
| 50 | 127728 | 127728 - SCREEN |
$20.99
|
|
| 51 | 127786 | 127786 - Screw |
$2.99
|
|
| 52 | 285188 | 285188 - LABEL |
$2.99
|
