 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

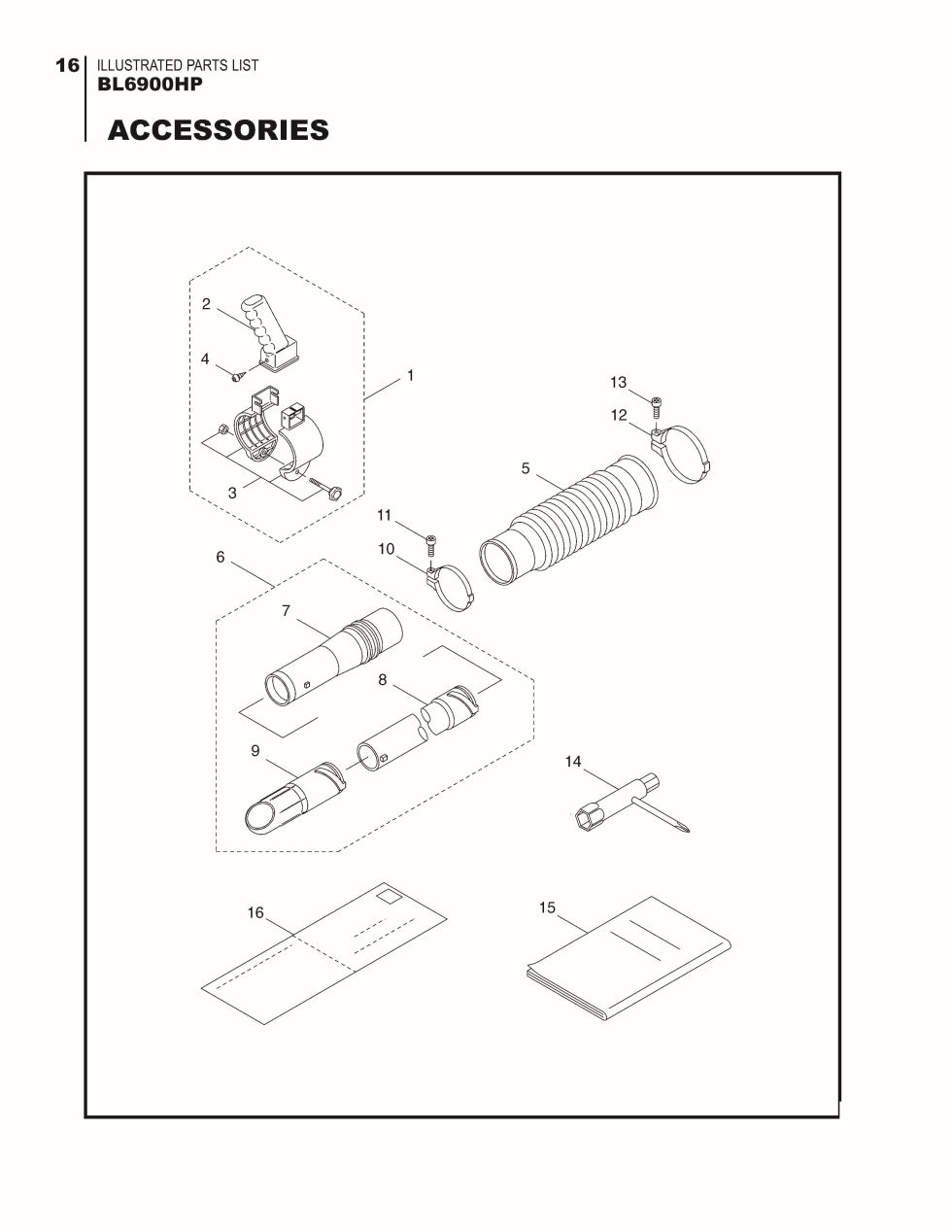

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL6900HP. You have selected the Accessories diagram for the Maruyama BL6900HP Blowers. Below you will find an interactive part diagram for the BL6900HP Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL6900HP parts not shown in this diagram you may select from one of the other BL6900HP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 639505 | 639505 - GRIP ASSY (LARGE) |
$18.99
|
|
| 2 | 122629 | 122629 - GRIP |
$9.99
|
|
| 3 | 122609 | 122609 - Band Assembly (Includes 122414 & 122416) |
$14.99
|
|
| 4 | 120319 | 120319 - USE: 127300 |
$2.99
|
|
| 5 | 107521 | 107521 - FLEX TUBE |
$19.99
|
|
| 6 | 122394 | 122394 - PIPE ASSY |
$40.99
|
|
| 7 | 122395 | 122395 - SWIVEL PIPE |
$22.99
|
|
| 8 | 122400 | 122400 - STRAIGHT PIPE |
$23.99
|
|
| 9 | 122402 | 122402 - BENT PIPE |
$15.99
|
|
| 10 | 122404 | 122404 - HOSE BAND |
$6.99
|
|
| 11 | 081417 | 081417 - SCREW |
$2.99
|
|
| 12 | 122611 | 122611 - HOSE BAND |
$7.99
|
|
| 14 | 210418 | 210418 - BOX WRENCH/DRIVER |
$16.99
|
