Main Body

Main Body

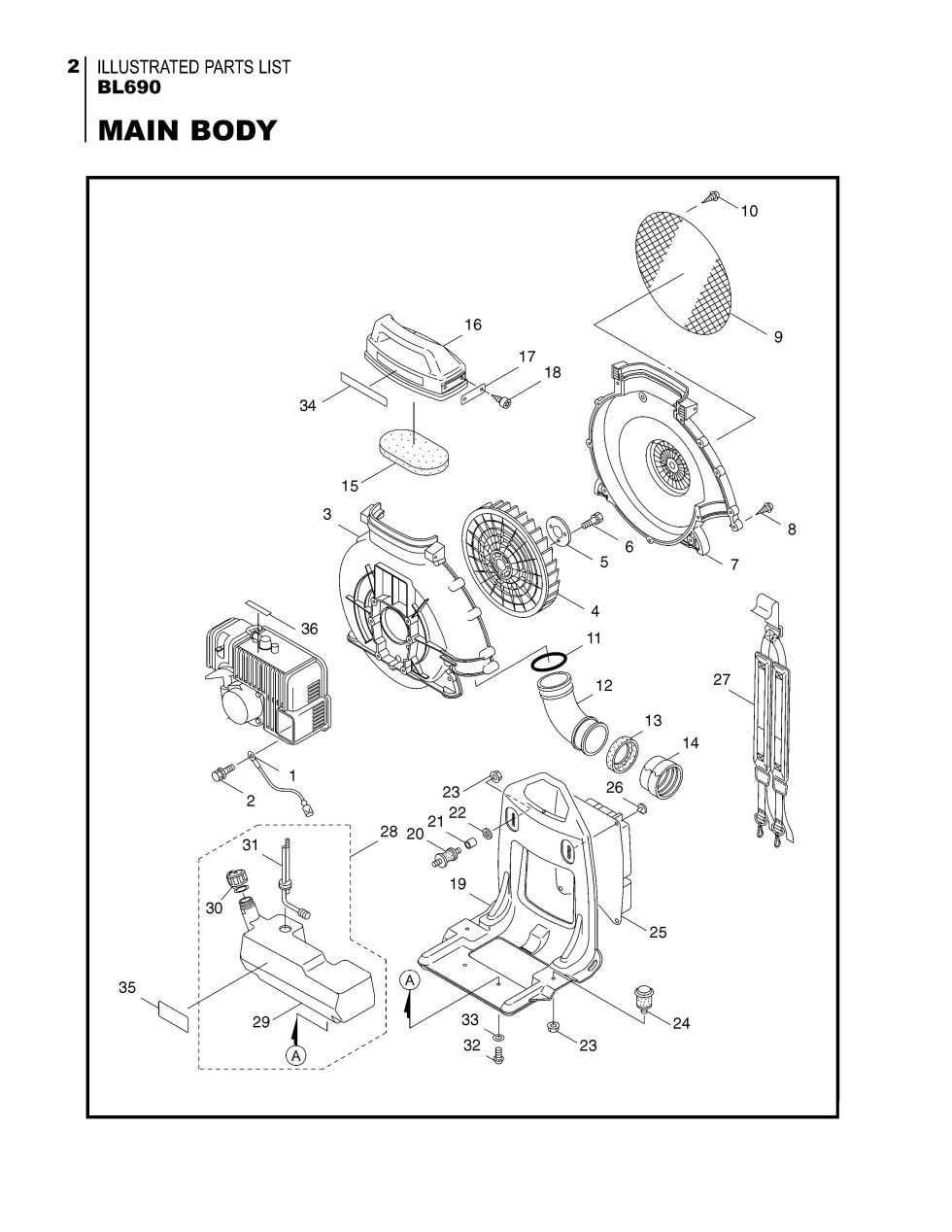

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL690. You have selected the Main Body diagram for the Maruyama BL690 Blowers. Below you will find an interactive part diagram for the BL690 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL690 parts not shown in this diagram you may select from one of the other BL690 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 108634 108634 - GROUND CABLE
$6.99
2 092544 092544 - BOLT
$2.99
3 122364 122364 - FAN CASE(E)
$68.99
4 118724 118724 - FAN
$68.99
5 118248 118248 - SS DOUGHNUT PLATE
$5.99
6 096056 096056 - BOLT
$2.99
7 121707 121707 - FAN CASE (S)
$59.99
8 089538 089538 - SCREW
$2.99
9 123486 123486 - COVER
$15.99
10 120319 120319 - USE: 127300
$2.99
11 018236 018236 - O-RING
$6.99
12 115243 115243 - ELBOW
$31.99
13 119161 119161 - BAND
$7.99
14 119160 119160 - COLLAR
$5.99
15 112028 112028 - PACKING
$11.99
16 123337 123337 - HANDLE
$26.99
17 120320 120320 - PLATE
$5.99
18 123194 123194 - TAPPING SCREW(M6X18)
$2.99
20 026223 026223 - BUFFER
$17.99
21 120616 120616 - SPACER
$2.99
22 120617 120617 - WASHER
$2.99
23 109704 109704 - USE: 127228
$2.99
24 120615 120615 - SHOCK ABSORBER
$22.99
25 119177 119177 - PAD
$31.99
26 840543 840543 - NLA PAD RETAINER
$2.99
27 123540 123540 - KNAPSACK BAND
$30.99
28 119388 119388 - FUEL TANK ASSY
$61.99
29 120154 120154 - FUEL TANK (obsolete)
use part #127673
$31.99
30 119390 119390 - FUEL CAP ASSY
$26.99
31 119391 119391 - FUEL FILTER
$39.99
32 081414 081414 - SCREW
$2.99
33 015479 015479 - WASHER
$2.99
34 125143 125143 - LABEL
$8.99
35 121132 121132 - LABEL(BP400)
$5.99
36 266959 266959 - LABEL
$6.99
