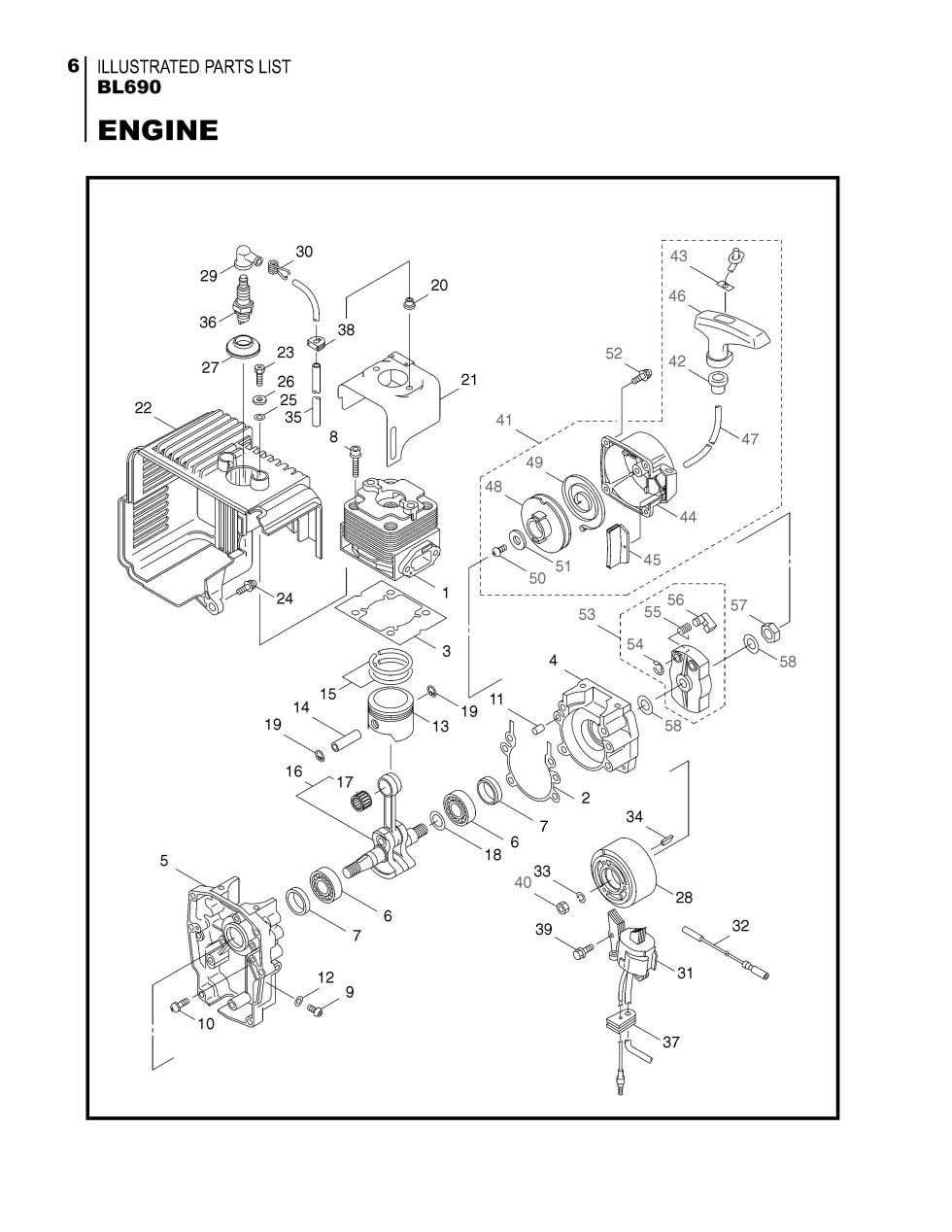

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL690. You have selected the Engine diagram for the Maruyama BL690 Blowers. Below you will find an interactive part diagram for the BL690 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL690 parts not shown in this diagram you may select from one of the other BL690 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 637459 | 637459 - CYLINDER |
$228.99
|
|
| 2 | 998401 | 998401 - GASKET |
$5.99
|
|
| 3 | 637460 | 637460 - GASKET |
$20.99
|
|
| 4 | 644845 | 644845 - CRANKCASE |
$123.99
|
|
| 5 | 998400 | 998400 - CRANKCASE |
$140.99
|
|
| 6 | 620248 | 620248 - BALL BEARING |
$28.99
|
|
| 7 | 071335 | 071335 - OIL SEAL |
$18.99
|
|
| 8 | 597284 | 597284 - BOLT |
$8.99
|
|
| 9 | 944619 | 944619 - SCREW |
$2.99
|
|
| 10 | 599880 | 599880 - SCREW |
$2.99
|
|
| 11 | 943349 | 943349 - DOWEL PIN |
$2.99
|
|
| 12 | 943893 | 943893 - GASKET |
$2.99
|
|
| 13 | 627497 | 627497 - PISTON |
$72.99
|
|
| 14 | 944769 | 944769 - PISTON PIN |
$9.99
|
|
| 15 | 627498 | 627498 - PISTON RING SET |
$43.99
|
|
| 16 | 634426 | 634426 - CRANKSHAFT ASSY. |
$205.99
|
|
| 17 | 943281 | 943281 - NEEDLE BEARING |
$23.99
|
|
| 19 | 943307 | 943307 - SNAP RING |
$2.99
|
|
| 20 | 630053 | 630053 - INSULATOR |
$11.99
|
|
| 21 | 634427 | 634427 - SHROUD |
$24.99
|
|
| 22 | 121763 | 121763 - ENGINE SHROUD |
$103.99
|
|
| 23 | 573307 | 573307 - BOLT |
$2.99
|
|
| 24 | 580184 | 580184 - SCREW |
$2.99
|
|
| 25 | 621123 | 621123 - WASHER |
$2.99
|
|
| 26 | 645931 | 645931 - NLA WASHER |
$2.99
|
|
| 27 | 998412 | 998412 - COVER |
$20.99
|
|
| 28 | 620250 | 620250 - FLYWHEEL |
$130.99
|
|
| 29 | 591532 | 591532 - SPARK PLUG CAP |
$19.99
|
|
| 30 | 591533 | 591533 - SPRING |
$2.99
|
|
| 31 | 597262 | 597262 - IGNITION COIL |
$97.99
|
|
| 32 | 597263 | 597263 - LEAD WIRE |
$19.99
|
|
| 33 | 943924 | 943924 - WASHER |
$2.99
|
|
| 34 | 998409 | 998409 - KEY |
$12.99
|
|
| 35 | 998411 | 998411 - TUBE |
$2.99
|
|
| 36 | 627409 | 627409 - SPARK PLUG BPMR7A |
$24.99
|
|
| 37 | 597293 | 597293 - GROMMET |
$10.99
|
|
| 38 | 634348 | 634348 - GROMMET |
$5.99
|
|
| 39 | 943457 | 943457 - BOLT |
$2.99
|
|
| 40 | 998410 | 998410 - NUT |
$6.99
|
|
| 41 | 998413 | 998413 - RECOIL STARTER ASSY |
$100.99
|
|
| 42 | 998438 | 998438 - ROPE GUIDE |
$17.99
|
|
| 43 | 944502 | 944502 - WASHER |
$8.99
|
|
| 44 | 998439 | 998439 - RECOIL CASE |
$57.99
|
|
| 45 | 998440 | 998440 - SHIELD |
$20.99
|
|
| 46 | 998437 | 998437 - RECOIL STARTER HANDL |
$27.99
|
|
| 47 | 998436 | 998436 - ROPE |
$24.99
|
|
| 48 | 998434 | 998434 - RECOIL REEL |
$35.99
|
|
| 49 | 998435 | 998435 - SPRING |
$33.99
|
|
| 50 | 570720 | 570720 - SCREW |
$2.99
|
|
| 51 | 998433 | 998433 - WASHER |
$2.99
|
|
| 52 | 624845 | 624845 - SCREW M4X16 |
$2.99
|
|
| 53 | 641298 | 641298 - STARTING PULLEY |
$19.99
|
|
| 54 | 013525 | 013525 - E-RING |
$2.99
|
|
| 55 | 579573 | 579573 - RETURN SPRING |
$12.99
|
|
| 56 | 584436 | 584436 - PAWL |
$14.99
|
|
| 57 | 998417 | 998417 - NLA NUT |
$2.99
|
|
| 58 | 071344 | 071344 - WASHER |
$2.99
|
