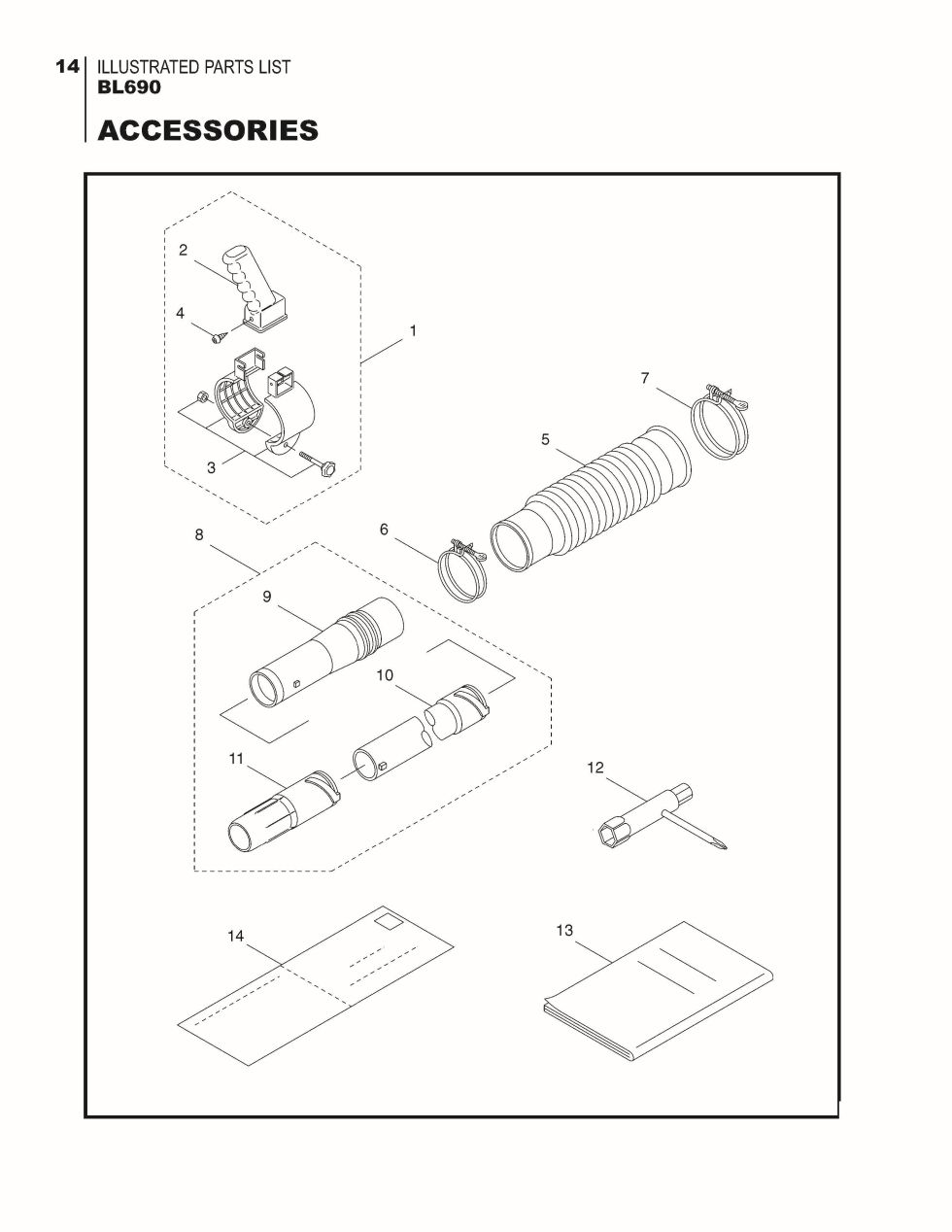

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL690. You have selected the Accessories diagram for the Maruyama BL690 Blowers. Below you will find an interactive part diagram for the BL690 Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL690 parts not shown in this diagram you may select from one of the other BL690 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 639505 | 639505 - GRIP ASSY (LARGE) |
$18.99
|
|
| 2 | 122629 | 122629 - GRIP |
$9.99
|
|
| 3 | 122609 | 122609 - Band Assembly (Includes 122414 & 122416) |
$14.99
|
|
| 4 | 123952 | 123952 - CAP SCREW |
$2.99
|
|
| 5 | 107521 | 107521 - FLEX TUBE |
$19.99
|
|
| 6 | 100752 | 100752 - USE: 125646 |
$12.99
|
|
| 7 | 100865 | 100865 - USE: 125647 |
$13.99
|
|
| 8 | 125145 | 125145 - PIPE ASSY. |
$28.99
|
|
| 9 | 122395 | 122395 - SWIVEL PIPE |
$22.99
|
|
| 10 | 122400 | 122400 - STRAIGHT PIPE |
$23.99
|
|
| 11 | 125146 | 125146 - CONE PIPE |
$12.99
|
|
| 12 | 210418 | 210418 - BOX WRENCH/DRIVER |
$16.99
|
