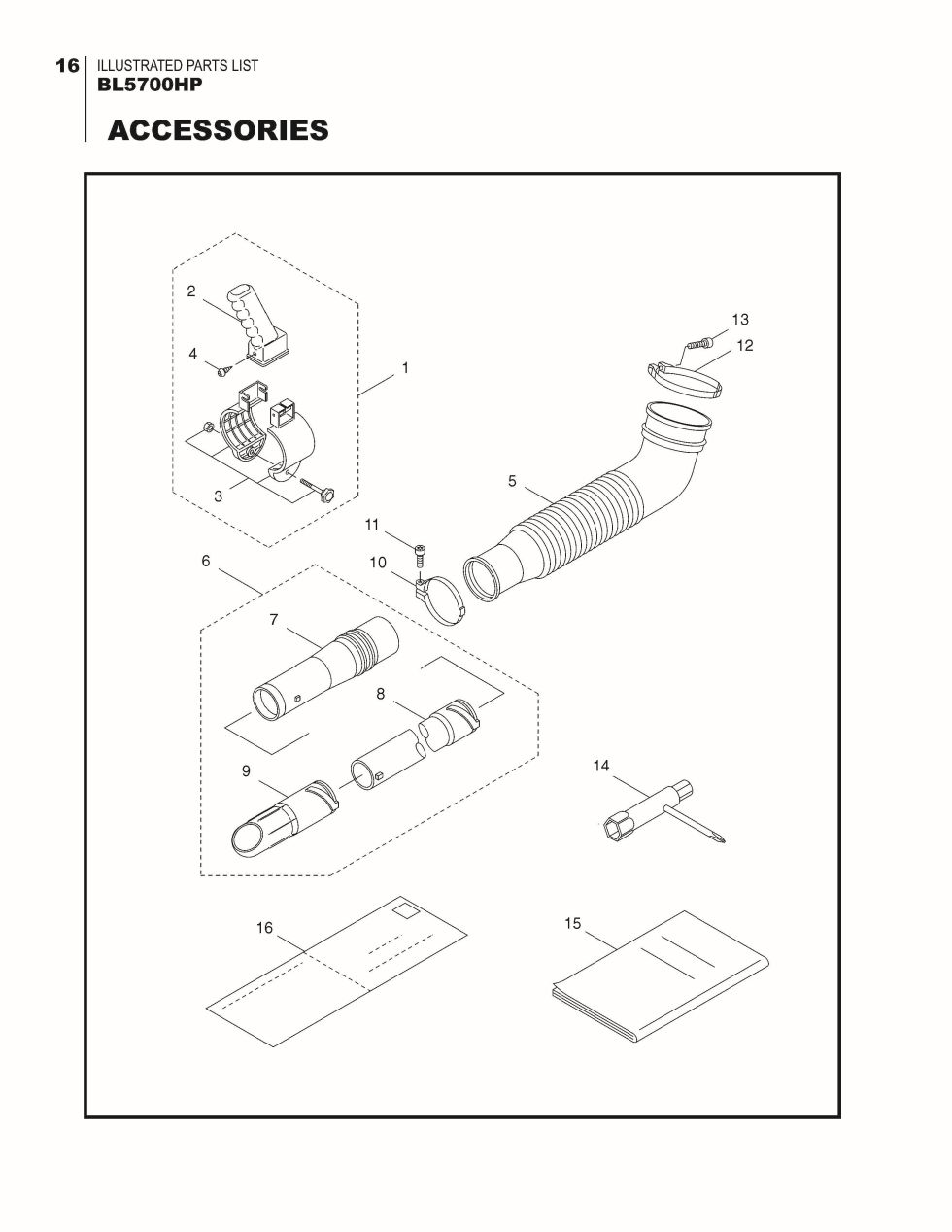

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL5700HP. You have selected the Accessories diagram for the Maruyama BL5700HP Blowers. Below you will find an interactive part diagram for the BL5700HP Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL5700HP parts not shown in this diagram you may select from one of the other BL5700HP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 639505 639505 - GRIP ASSY (LARGE)
$18.99
2 122629 122629 - GRIP
$9.99
3 122609 122609 - Band Assembly (Includes 122414 & 122416)
$14.99
4 120319 120319 - USE: 127300
$2.99
5 123413 123413 - FLEXIBLE PIPE
$29.99
6 122394 122394 - PIPE ASSY
$40.99
7 122395 122395 - SWIVEL PIPE
$22.99
8 122400 122400 - STRAIGHT PIPE
$23.99
9 122402 122402 - BENT PIPE
$15.99
10 122404 122404 - HOSE BAND
$6.99
11 081417 081417 - SCREW
$2.99
12 119523 119523 - HOSE BAND
$5.99
14 210418 210418 - BOX WRENCH/DRIVER
$16.99
