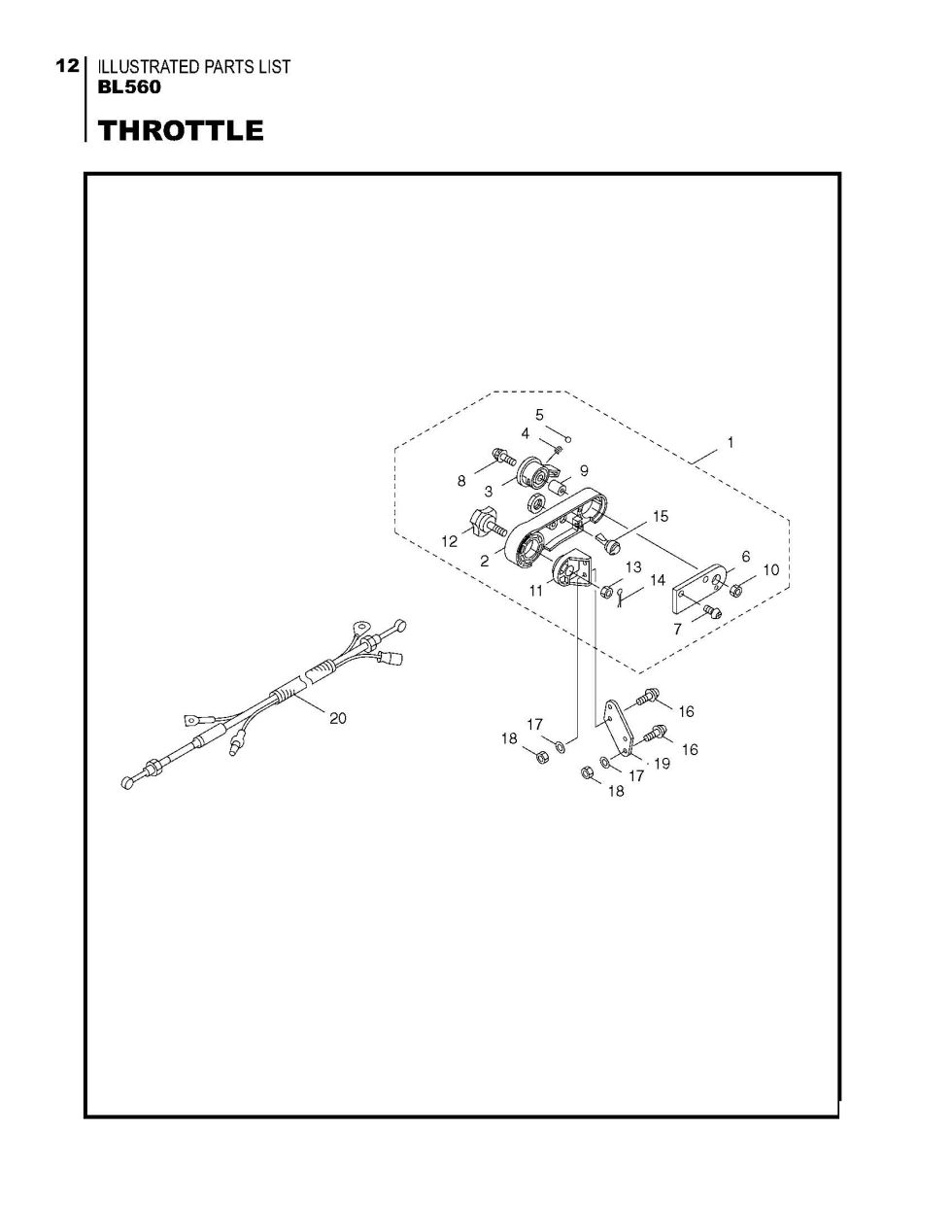

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL560. You have selected the Throttle diagram for the Maruyama BL560 Blowers. Below you will find an interactive part diagram for the BL560 Throttle. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL560 parts not shown in this diagram you may select from one of the other BL560 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
Position number | SKU | Product title | Price | |
---|---|---|---|---|
1 | 117622 | 117622 - THROTTLE LEVER ASSY |
$43.99
|
|
2 | 107126 | 107126 - ARM |
$15.99
|
|
3 | 107127 | 107127 - LEVER |
$8.99
|
|
4 | 107221 | 107221 - SPRING |
$2.99
|
|
5 | 106498 | 106498 - VALVE BALL |
$2.99
|
|
6 | 107129 | 107129 - STAY |
$7.99
|
|
7 | 019001 | 019001 - TAPPING SCREW |
$2.99
|
|
8 | 092058 | 092058 - SCREW(M6X25) |
$2.99
|
|
9 | 107136 | 107136 - COLLAR |
$5.99
|
|
10 | 081031 | 081031 - NUT M6 |
$2.99
|
|
11 | 115605 | 115605 - NLA FLANGE |
$5.99
|
|
13 | 107581 | 107581 - NYLON NUT |
$2.99
|
|
14 | 065842 | 065842 - COTTER PIN |
$2.99
|
|
15 | 117623 | 117623 - SWITCH |
$12.99
|
|
16 | 816038 | 816038 - SCREW(M6X20) |
$2.99
|
|
17 | 013754 | 013754 - Washer (M6) |
$0.81
|
|
18 | 112509 | 112509 - NUT |
$2.99
|
|
19 | 117603 | 117603 - PLATE |
$5.99
|
|
20 | 636826 | 636826 - THROTTLE CABLE ASSY |
$30.99
|
