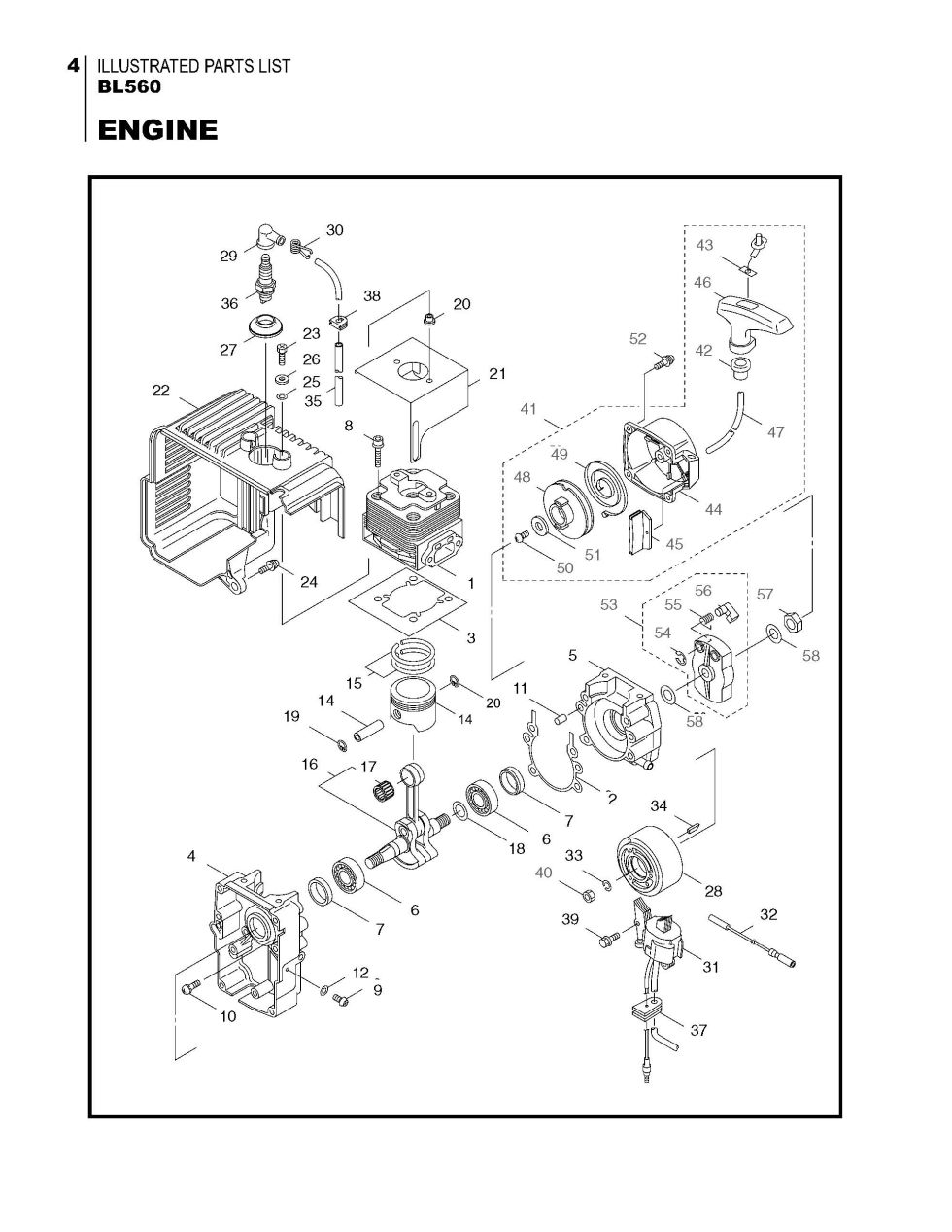

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL560. You have selected the Engine diagram for the Maruyama BL560 Blowers. Below you will find an interactive part diagram for the BL560 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL560 parts not shown in this diagram you may select from one of the other BL560 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 634340 | 634340 - CYLINDER |
$134.99
|
|
| 2 | 570248 | 570248 - GASKET |
$5.99
|
|
| 3 | 634341 | 634341 - GASKET |
$21.99
|
|
| 4 | 634342 | 634342 - CRANKCASE |
$183.99
|
|
| 5 | 634343 | 634343 - CRANKCASE |
$183.99
|
|
| 6 | 597283 | 597283 - BEARING |
$29.99
|
|
| 7 | 071320 | 071320 - OIL SEAL |
$19.99
|
|
| 8 | 597284 | 597284 - BOLT |
$8.99
|
|
| 10 | 599880 | 599880 - SCREW |
$2.99
|
|
| 11 | 943349 | 943349 - DOWEL PIN |
$2.99
|
|
| 12 | 943893 | 943893 - GASKET |
$2.99
|
|
| 14 | 944769 | 944769 - PISTON PIN |
$9.99
|
|
| 15 | 943304 | 943304 - PISTON RING SET |
$29.99
|
|
| 16 | 570245 | 570245 - CRANKSHAFT ASSY |
$173.99
|
|
| 17 | 943281 | 943281 - NEEDLE BEARING |
$23.99
|
|
| 19 | 943307 | 943307 - SNAP RING |
$2.99
|
|
| 20 | 630053 | 630053 - INSULATOR |
$11.99
|
|
| 21 | 634344 | 634344 - NLA SHROUD |
$24.99
|
|
| 22 | 634345 | 634345 - ENGINE SHROUD |
$96.99
|
|
| 23 | 573307 | 573307 - BOLT |
$2.99
|
|
| 24 | 580184 | 580184 - SCREW |
$2.99
|
|
| 25 | 621123 | 621123 - WASHER |
$2.99
|
|
| 26 | 575415 | 575415 - NLA WASHER |
$6.99
|
|
| 27 | 570252 | 570252 - COVER |
$9.99
|
|
| 28 | 634346 | 634346 - FLYWHEEL |
$104.99
|
|
| 29 | 591532 | 591532 - SPARK PLUG CAP |
$19.99
|
|
| 30 | 591533 | 591533 - SPRING |
$2.99
|
|
| 31 | 634347 | 634347 - IGNITION COIL ASSY |
$116.99
|
|
| 32 | 597263 | 597263 - LEAD WIRE |
$19.99
|
|
| 33 | 943924 | 943924 - WASHER |
$2.99
|
|
| 34 | 998409 | 998409 - KEY |
$12.99
|
|
| 35 | 998411 | 998411 - TUBE |
$2.99
|
|
| 36 | 626811 | 626811 - NLA SPARK PLUG BPMR7 |
$25.99
|
|
| 37 | 627409 | 627409 - SPARK PLUG BPMR7A |
$24.99
|
|
| 38 | 634348 | 634348 - GROMMET |
$5.99
|
|
| 39 | 943457 | 943457 - BOLT |
$2.99
|
|
| 40 | 998410 | 998410 - NUT |
$6.99
|
|
| 41 | 998413 | 998413 - RECOIL STARTER ASSY |
$100.99
|
|
| 42 | 998438 | 998438 - ROPE GUIDE |
$17.99
|
|
| 43 | 944502 | 944502 - WASHER |
$8.99
|
|
| 44 | 998439 | 998439 - RECOIL CASE |
$57.99
|
|
| 45 | 998440 | 998440 - SHIELD |
$20.99
|
|
| 46 | 998437 | 998437 - RECOIL STARTER HANDL |
$27.99
|
|
| 47 | 998436 | 998436 - ROPE |
$24.99
|
|
| 48 | 998434 | 998434 - RECOIL REEL |
$35.99
|
|
| 49 | 998435 | 998435 - SPRING |
$33.99
|
|
| 50 | 570720 | 570720 - SCREW |
$2.99
|
|
| 51 | 998433 | 998433 - WASHER |
$2.99
|
|
| 52 | 624845 | 624845 - SCREW M4X16 |
$2.99
|
|
| 53 | 641298 | 641298 - STARTING PULLEY |
$19.99
|
|
| 54 | 013525 | 013525 - E-RING |
$2.99
|
|
| 55 | 579573 | 579573 - RETURN SPRING |
$12.99
|
|
| 56 | 584436 | 584436 - PAWL |
$14.99
|
|
| 57 | 998417 | 998417 - NLA NUT |
$2.99
|
|
| 58 | 071344 | 071344 - WASHER |
$2.99
|
