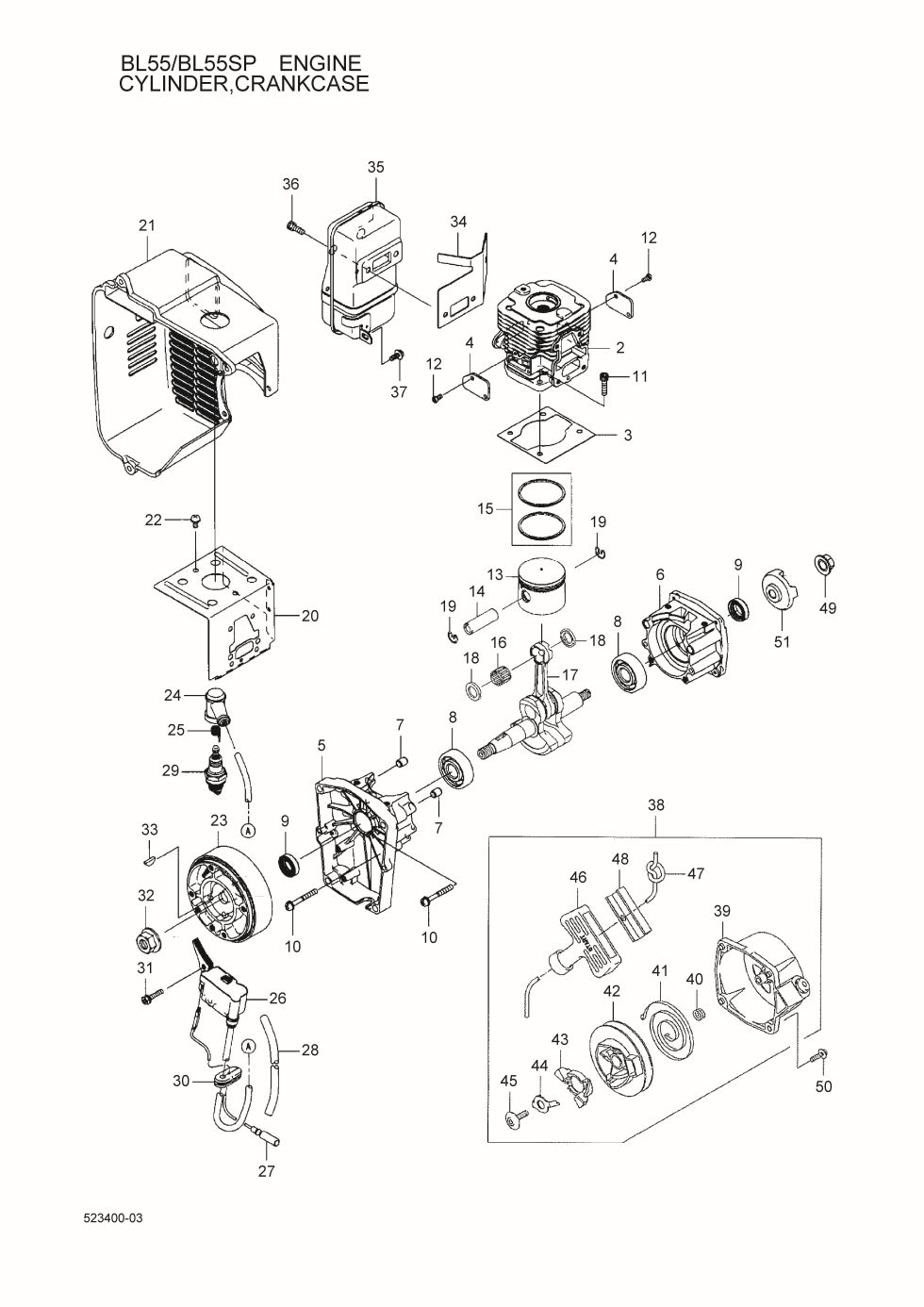

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL55 and BL55SP. You have selected the Engine diagram for the Maruyama BL55 and BL55SP Blowers. Below you will find an interactive part diagram for the BL55 and BL55SP Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL55 and BL55SP parts not shown in this diagram you may select from one of the other BL55 and BL55SP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
2 649683 649683 - CYLINDER
$173.99
3 649684 649684 - GASKET, CYLINDER
$18.99
4 649685 649685 - PLATE
$6.99
5 649686 649686 - CRANKCASE
$107.99
6 649687 649687 - CRANKCASE
$89.99
7 573908 573908 - PIN
$2.99
8 649688 649688 - BEARING
$25.99
9 649689 649689 - USE: 416246
$23.99
10 944778 944778 - SCREW
$2.99
11 649320 649320 - USE: 414430
$2.99
12 943572 943572 - SCREW
$2.99
13 412443 412443 - PISTON
$89.99
14 649691 649691 - PISTON PIN
$43.99
15 649692 649692 - PISTON RING SET
$34.99
16 649325 649325 - BEARING
$25.99
17 649694 649694 - CRANKSHAFT ASSY
$205.99
18 412444 412444 - SPACER
$7.99
19 943307 943307 - SNAP RING
$2.99
20 649695 649695 - SHROUD
$18.99
21 649696 649696 - SHROUD
$81.99
22 996258 996258 - USE: 414435
$2.99
23 649697 649697 - FLYWHEEL
$148.99
24 591532 591532 - SPARK PLUG CAP
$19.99
25 591533 591533 - SPRING
$2.99
26 649698 649698 - IGNITION COIL ASSY
$140.99
27 649332 649332 - LEAD WIRE
$11.99
28 998411 998411 - TUBE
$2.99
29 649333 649333 - SPARK PLUG
$18.99
30 649334 649334 - GROMMET
$6.99
31 649335 649335 - BOLT
$2.99
32 649336 649336 - NUT M10
$11.99
33 071695 071695 - KEY
$5.99
34 649706 649706 - GASKET
$20.99
35 649709 649709 - MUFFLER ASSY
$228.99
36 649710 649710 - BOLT
$2.99
37 943466 943466 - USE: 414452
$2.99
38 400921 400921 - RECOIL STARTER ASSY
$113.99
39 649372 649372 - CASE RECOIL STARTER
$69.99
40 649378 649378 - SPRING
$7.99
41 400922 400922 - SPRING
$31.99
42 649376 649376 - REEL, RECOIL STARTER
$35.99
43 649370 649370 - PAWL
$10.99
44 649371 649371 - RETAINER
$19.99
45 649380 649380 - SCREW
$7.99
46 400920 400920 - GRIP
$17.99
47 649377 649377 - ROPE
$21.99
48 400919 400919 - PLATE
$10.99
49 649381 649381 - NUT
$2.99
50 624845 624845 - SCREW M4X16
$2.99
51 649374 649374 - PULLEY, STARTING
$8.99
