Main Body

Main Body

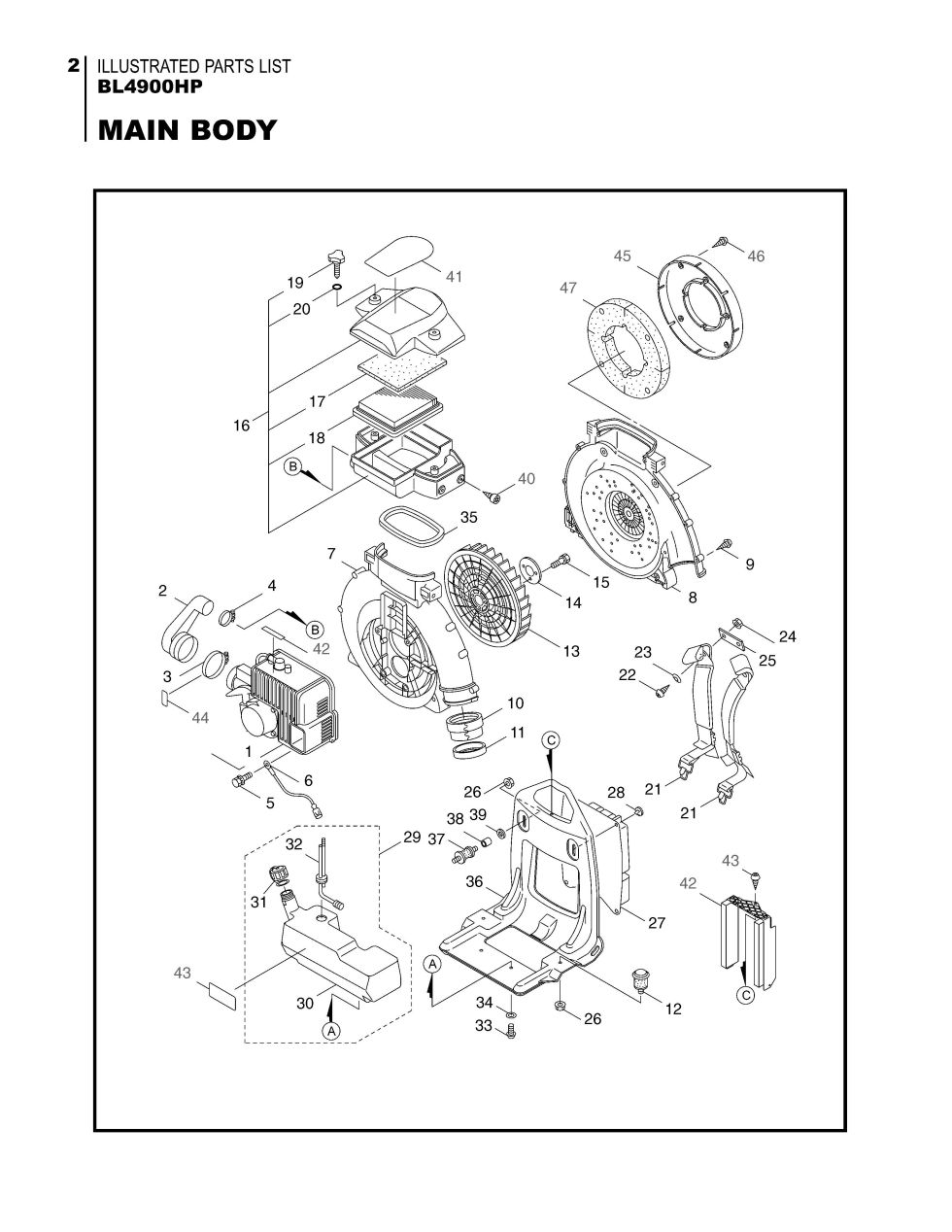

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4900. You have selected the Main Body diagram for the Maruyama BL4900 Blowers. Below you will find an interactive part diagram for the BL4900 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4900 parts not shown in this diagram you may select from one of the other BL4900 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 121787 121787 - SHROUD
$66.99
2 121753 121753 - INLET PIPE
$28.99
3 121755 121755 - BAND
$15.99
4 119684 119684 - HOSE BAND
$7.99
5 092543 092543 - BOLT
$2.99
6 108634 108634 - GROUND CABLE
$6.99
7 120512 120512 - FAN CASE
$93.99
8 121788 121788 - FAN CASE(S)
$61.99
9 089538 089538 - SCREW
$2.99
10 119160 119160 - COLLAR
$5.99
11 119161 119161 - BAND
$7.99
12 120615 120615 - SHOCK ABSORBER
$22.99
13 118724 118724 - FAN
$68.99
14 118248 118248 - SS DOUGHNUT PLATE
$5.99
15 096056 096056 - BOLT
$2.99
16 123487 123487 - AIR CLEANER ASSY.
$55.99
17 123493 123493 - ELEMENT
$8.99
18 123492 123492 - FILTER
$27.99
19 123494 123494 - KNOB
$7.99
20 014187 014187 - O-RING
$2.99
21 120625 120625 - KNAPSACK BAND
$30.99
22 123370 123370 - SCREW(M6X20)
$2.99
23 100603 100603 - USE: 127224
$2.99
24 550132 550132 - USE: 127237
$2.99
26 109704 109704 - USE: 127228
$2.99
27 119177 119177 - PAD
$31.99
28 840543 840543 - NLA PAD RETAINER
$2.99
29 119388 119388 - FUEL TANK ASSY
$61.99
30 120154 120154 - FUEL TANK (obsolete)
use part #127673
$31.99
31 119390 119390 - FUEL CAP ASSY
$26.99
32 119391 119391 - FUEL FILTER
$39.99
33 081414 081414 - SCREW
$2.99
34 015479 015479 - WASHER
$2.99
35 120536 120536 - PACKING
$19.99
37 026223 026223 - BUFFER
$17.99
38 120616 120616 - SPACER
$2.99
39 120617 120617 - WASHER
$2.99
40 123194 123194 - TAPPING SCREW(M6X18)
$2.99
41 123516 123516 - NLA LABEL
$6.99
42 266959 266959 - LABEL
$6.99
43 121132 121132 - LABEL(BP400)
$5.99
44 119613 119613 - LABEL
$5.99
45 121790 121790 - NLA COVER
$16.99
46 120319 120319 - USE: 127300
$2.99
47 121791 121791 - FOAM
$23.99
