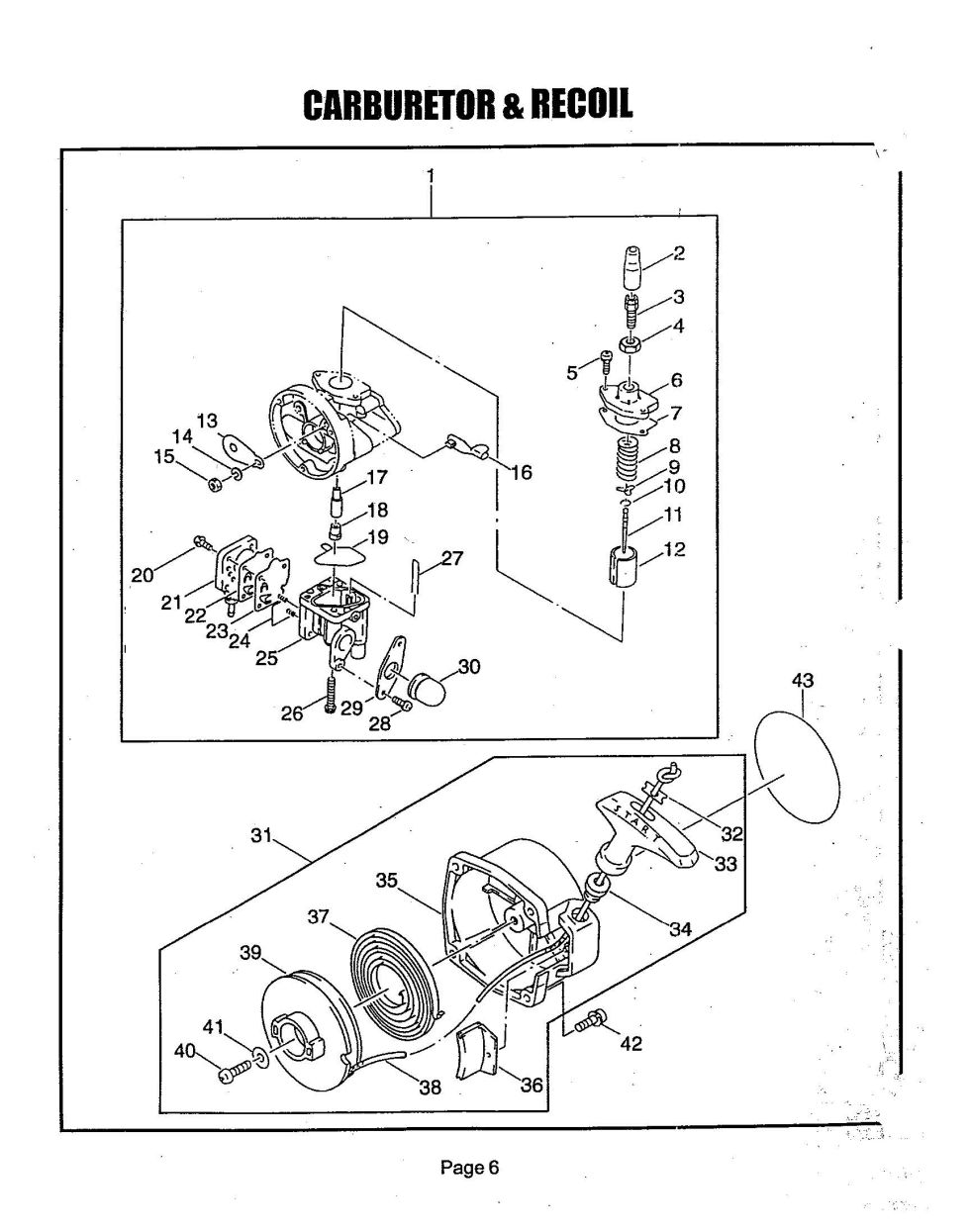

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4800, BL4801. You have selected the Carburetor and Recoil diagram for the Maruyama BL4800, BL4801 Blowers. Below you will find an interactive part diagram for the BL4800, BL4801 Carburetor and Recoil. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4800, BL4801 parts not shown in this diagram you may select from one of the other BL4800, BL4801 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 621457 621457 - NLA CARBURETOR ASSY
$94.99
2 944642 944642 - CAP
$9.99
3 944349 944349 - NLA ADJUSTER
$18.99
4 944348 944348 - NUT
$11.99
5 943914 943914 - NLA SCREW
$2.99
6 944347 944347 - USE: 597295
$21.99
7 597296 597296 - NLA GASKET
$13.99
8 998420 998420 - THROTTLE SPRING
$13.99
9 597303 597303 - NLA RETAINER SPRING
$2.99
11 621458 621458 - NLA NEEDLE JET
$26.99
12 943325 943325 - THROTTLE VALVE
$56.99
13 944689 944689 - NLA CHOKE PLATE
$8.99
14 944102 944102 - USE: 597306
$2.99
15 591564 591564 - NUT
$2.99
16 998421 998421 - NLA CHOKE LEVER
$11.99
17 998422 998422 - NLA JET NOZZLE
$30.99
18 570255 570255 - NLA MAIN JET
$21.99
19 998424 998424 - GASKET
$23.99
20 943621 943621 - SCREW
$2.99
21 943750 943750 - NLA PUMP COVER
$26.99
22 570256 570256 - PUMP DIAPHRAGM
$19.99
24 998426 998426 - SPRING
$6.99
25 998427 998427 - FLOAT CHAMBER
$102.99
26 998428 998428 - SCREW
$2.99
27 998429 998429 - NLA WIRE
$15.99
28 998430 998430 - NLA SCREW
$2.99
29 578508 578508 - PLATE
$9.99
31 998413 998413 - RECOIL STARTER ASSY
$100.99
32 944502 944502 - WASHER
$8.99
33 998437 998437 - RECOIL STARTER HANDL
$27.99
34 998438 998438 - ROPE GUIDE
$17.99
35 998439 998439 - RECOIL CASE
$57.99
36 998440 998440 - SHIELD
$20.99
37 998435 998435 - SPRING
$33.99
38 998436 998436 - ROPE
$24.99
39 998434 998434 - RECOIL REEL
$35.99
40 944801 944801 - USE: 570720
$2.99
41 998433 998433 - WASHER
$2.99
42 943275 943275 - NLA SCREW
$2.99
43 573648 573648 - NLA LABEL
$8.99
