 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

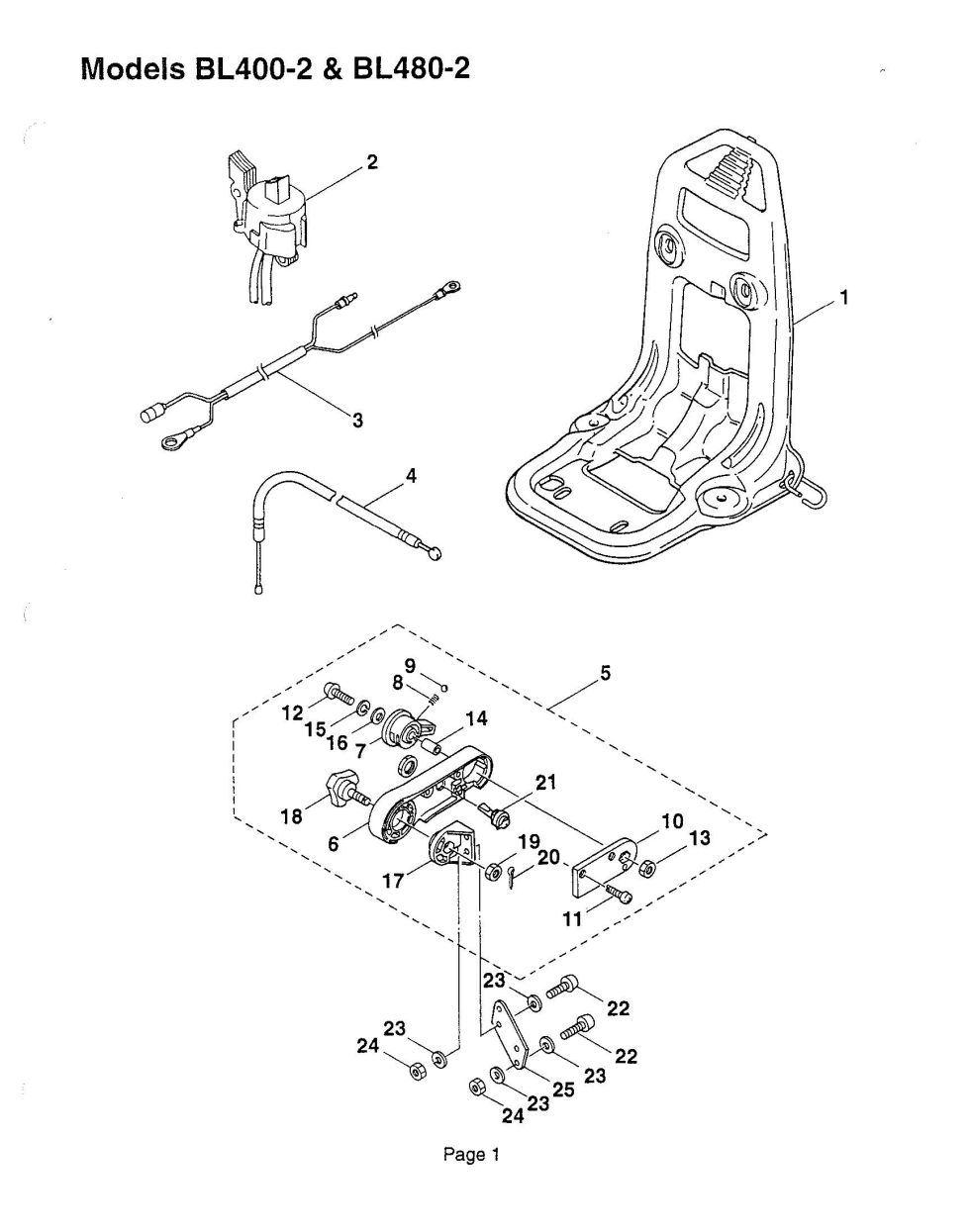

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL480. You have selected the Part Addendum diagram for the Maruyama BL480 Blowers. Below you will find an interactive part diagram for the BL480 Part Addendum. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL480 parts not shown in this diagram you may select from one of the other BL480 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 115607 | 115607 - NLA BACKPACK FRAME |
$85.99
|
|
| 2 | 597262 | 597262 - IGNITION COIL |
$97.99
|
|
| 3 | 117601 | 117601 - NLA WIRE |
$19.99
|
|
| 4 | 117600 | 117600 - NLA THROTTLE CABLE |
$27.99
|
|
| 5 | 117622 | 117622 - THROTTLE LEVER ASSY |
$43.99
|
|
| 6 | 107126 | 107126 - ARM |
$15.99
|
|
| 7 | 107127 | 107127 - LEVER |
$8.99
|
|
| 8 | 107221 | 107221 - SPRING |
$2.99
|
|
| 9 | 106498 | 106498 - VALVE BALL |
$2.99
|
|
| 10 | 107129 | 107129 - STAY |
$7.99
|
|
| 11 | 019001 | 019001 - TAPPING SCREW |
$2.99
|
|
| 12 | 081457 | 081457 - SCREW M6X25 |
$2.99
|
|
| 13 | 081031 | 081031 - NUT M6 |
$2.99
|
|
| 14 | 107136 | 107136 - COLLAR |
$5.99
|
|
| 15 | 012502 | 012502 - SPRING WASHER |
$2.99
|
|
| 16 | 012488 | 012488 - WASHER M6 |
$2.99
|
|
| 17 | 115605 | 115605 - NLA FLANGE |
$5.99
|
|
| 18 | 115612 | 115612 - KNOB BOLT |
$17.99
|
|
| 19 | 107581 | 107581 - NYLON NUT |
$2.99
|
|
| 20 | 065842 | 065842 - COTTER PIN |
$2.99
|
|
| 21 | 117623 | 117623 - SWITCH |
$12.99
|
|
| 22 | 081456 | 081456 - SCREW M6X20 ISO |
$2.99
|
|
| 23 | 013754 | 013754 - Washer (M6) |
$0.81
|
|
| 24 | 112509 | 112509 - NUT |
$2.99
|
|
| 25 | 117603 | 117603 - PLATE |
$5.99
|
