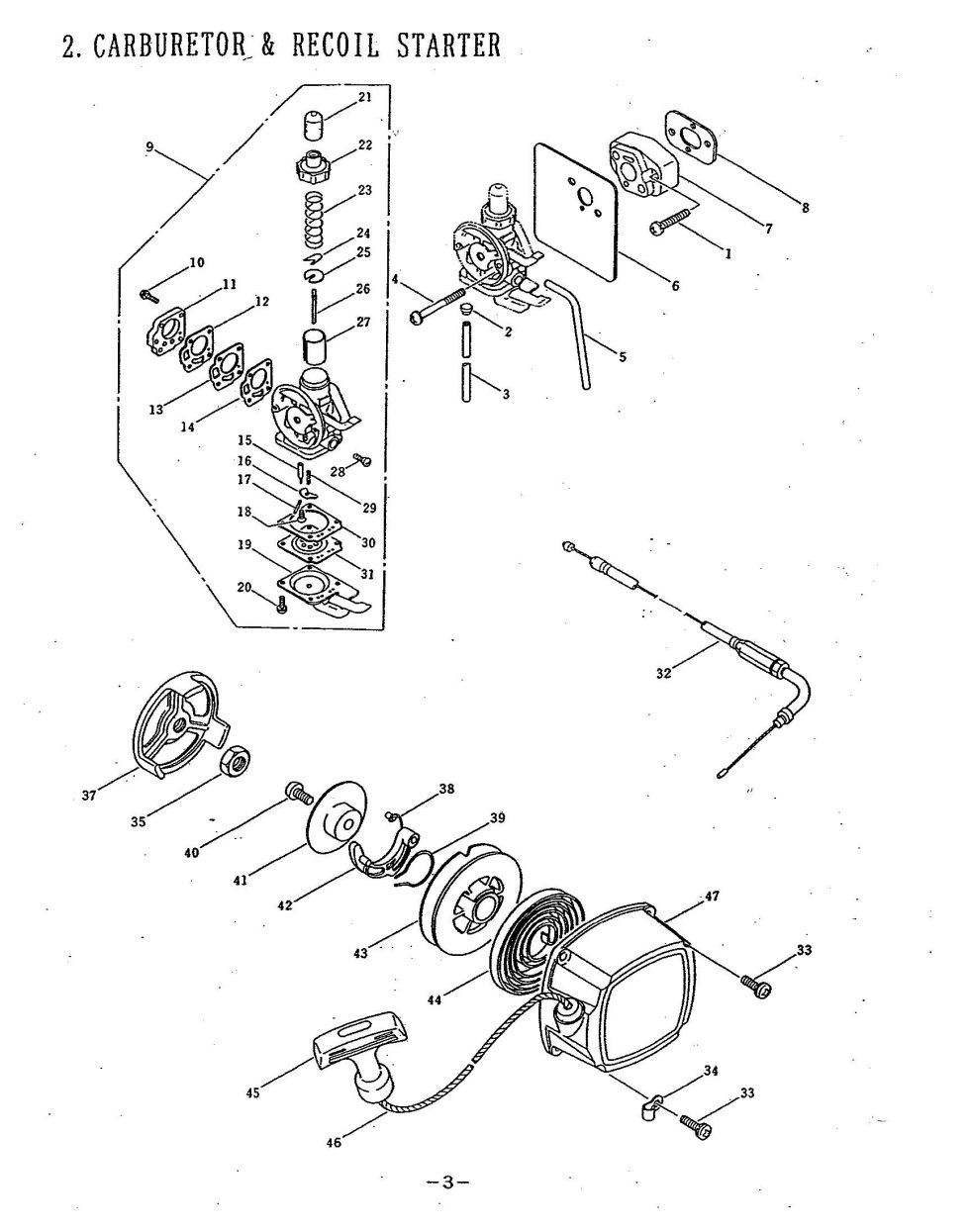

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL471. You have selected the Carburetor and Recoil Starter diagram for the Maruyama BL471 Blowers. Below you will find an interactive part diagram for the BL471 Carburetor and Recoil Starter. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL471 parts not shown in this diagram you may select from one of the other BL471 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 990688 990688 - SCREW
$2.99
2 971781 971781 - NLA FUEL PIPE CLIP
$2.99
3 571486 571486 - NLA FUEL TUBE, INTAK
$2.99
4 972892 972892 - NLA SCREW
$2.99
5 972815 972815 - USE: 971739
$2.99
6 571488 571488 - CARBURETOR GASKET
$15.99
7 571489 571489 - NLA INSULATOR
$30.99
8 571490 571490 - NLA INSULATOR GASKET
$8.99
9 571491 571491 - NLA CARBURETOR ASSY
$155.99
10 972887 972887 - SCREW
$2.99
11 571492 571492 - PUMP COVER
$26.99
12 571493 571493 - NLA DIAPHRAGM
$38.99
13 571494 571494 - NLA CHECK VALVE
$34.99
14 571495 571495 - NLA GASKET
$7.99
15 972858 972858 - NLA FLOAT VALVE NEED
$27.99
16 571496 571496 - NLA INLET LEVER
$24.99
17 571497 571497 - FLOAT PIN
$8.99
18 972860 972860 - NLA FLOAT PIN SET SC
$2.99
19 571498 571498 - NLA COVER
$40.99
20 971814 971814 - SCREW
$2.99
21 260058 260058 - NLA AIR SEAL
$11.99
22 571499 571499 - CAP
$15.99
23 571500 571500 - RETURN SPRING
$13.99
24 571501 571501 - NLA CLIP
$5.99
25 571502 571502 - NLA RETAINER
$2.99
26 571503 571503 - NLA JET NEEDLE
$40.99
27 571504 571504 - NLA THROTTLE VALVE
$29.99
28 977567 977567 - NLA MAIN ADJUSTING N
$19.99
29 571505 571505 - NLA SPRING
$24.99
30 571506 571506 - NLA GASKET
$2.99
31 571507 571507 - NLA DIAPHRAGM
$45.99
32 108185 108185 - NLA THROTTLE CABLE A
$35.99
33 971817 971817 - NLA SCREW
$2.99
34 972876 972876 - NLA CLAMP
$2.99
35 571508 571508 - NUT
$2.99
37 978746 978746 - NLA STARTER PULLEY
$32.99
38 972834 972834 - NLA RETURN SPRING
$15.99
39 972831 972831 - NLA FRICTION SPRING
$6.99
40 977441 977441 - SCREW
$10.99
41 993293 993293 - NLA PLATE
$15.99
42 978823 978823 - USE: 591588 No Longer Available
Obsolete.
43 978822 978822 - NLA REEL
$86.99
44 978824 978824 - NLA SPIRAL SPRING
$22.99
45 978827 978827 - STARTER KNOB
$18.99
46 978826 978826 - NLA STARTER ROPE
$17.99
47 571510 571510 - NLA STARTER CASE
$55.99
