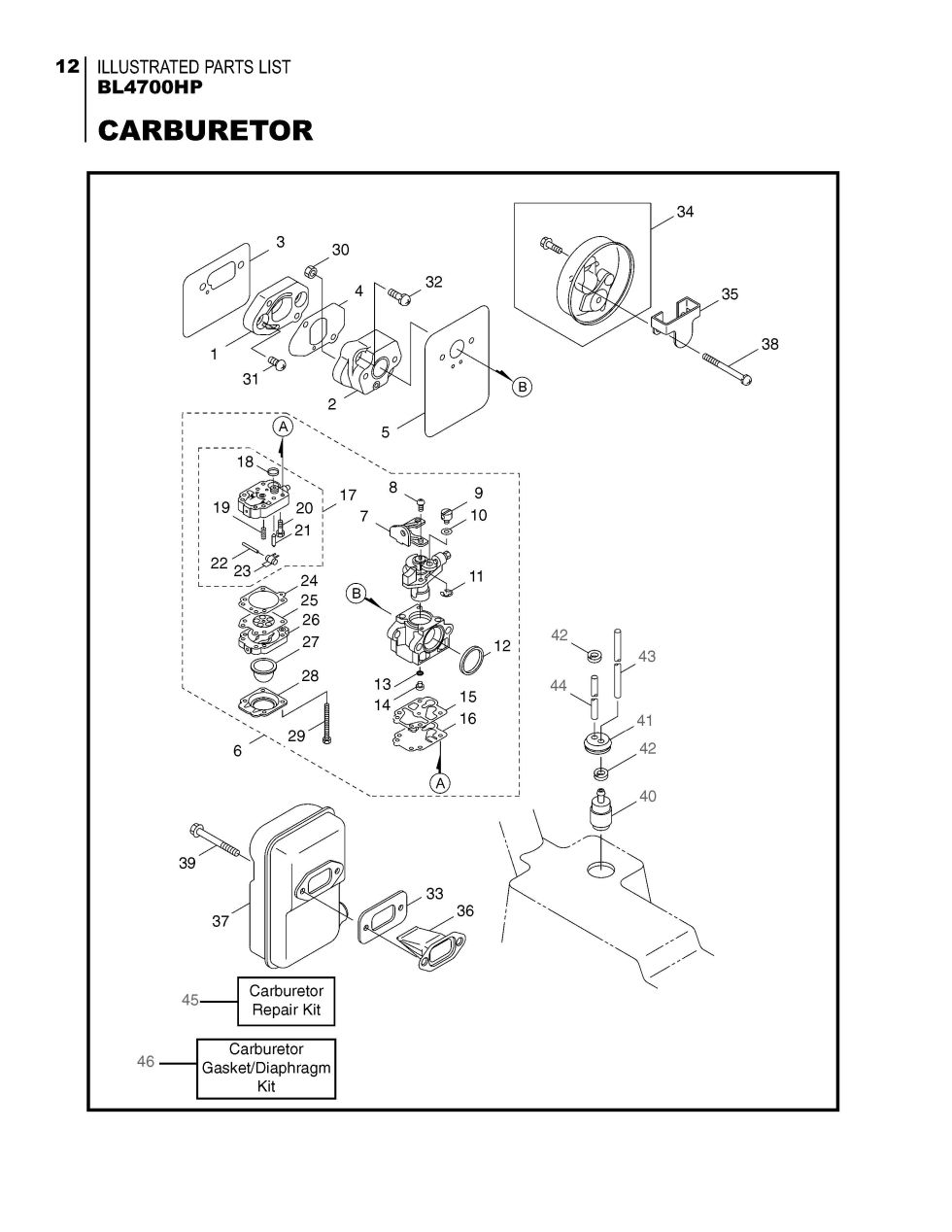

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4700HP. You have selected the Carburetor diagram for the Maruyama BL4700HP Blowers. Below you will find an interactive part diagram for the BL4700HP Carburetor. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4700HP parts not shown in this diagram you may select from one of the other BL4700HP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 625867 | 625867 - ADAPTER |
$38.99
|
|
| 2 | 625866 | 625866 - INSULATOR |
$29.99
|
|
| 3 | 625862 | 625862 - GASKET |
$10.99
|
|
| 4 | 625863 | 625863 - GASKET (BL4500) |
$19.99
|
|
| 5 | 625864 | 625864 - GASKET |
$14.99
|
|
| 6 | 625865 | 625865 - CARBURETOR ASSY |
$167.99
|
|
| 7 | 624525 | 624525 - BRACKET |
$35.99
|
|
| 8 | 577179 | 577179 - SCREW |
$8.99
|
|
| 9 | 598415 | 598415 - ARM |
$21.99
|
|
| 10 | 624532 | 624532 - WASHER |
$7.99
|
|
| 11 | 577175 | 577175 - SNAP RING |
$8.99
|
|
| 12 | 624528 | 624528 - NLA PACKING |
$2.99
|
|
| 13 | 261871 | 261871 - O-RING |
$2.99
|
|
| 14 | 626813 | 626813 - NLA MAIN JET |
$22.99
|
|
| 15 | 577184 | 577184 - GASKET |
$22.99
|
|
| 16 | 577185 | 577185 - DIAPHRAGM |
$18.99
|
|
| 17 | 626822 | 626822 - BODY |
$61.99
|
|
| 18 | 624430 | 624430 - FILTER |
$23.99
|
|
| 19 | 624434 | 624434 - SPRING |
$13.99
|
|
| 20 | 624432 | 624432 - SCREW |
$11.99
|
|
| 21 | 624431 | 624431 - FLOAT VALVE |
$18.99
|
|
| 22 | 624433 | 624433 - PIN |
$8.99
|
|
| 23 | 624429 | 624429 - LEVER |
$19.99
|
|
| 24 | 262993 | 262993 - GASKET |
$10.99
|
|
| 25 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 26 | 598413 | 598413 - BODY |
$79.99
|
|
| 27 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 28 | 598409 | 598409 - COVER, PRIMER PUMP |
$27.99
|
|
| 29 | 262996 | 262996 - SCREW |
$2.99
|
|
| 30 | 594598 | 594598 - NUT |
$2.99
|
|
| 31 | 625868 | 625868 - SCREW |
$2.99
|
|
| 32 | 579565 | 579565 - SCREW |
$2.99
|
|
| 33 | 579566 | 579566 - GASKET |
$15.99
|
|
| 34 | 634359 | 634359 - AIR FILTER CASE ASSY |
$21.99
|
|
| 35 | 634361 | 634361 - BAFFLE |
$13.99
|
|
| 36 | 579567 | 579567 - SPARK ARRESTER |
$54.99
|
|
| 37 | 625869 | 625869 - MUFFLER COMP |
$110.99
|
|
| 38 | 634367 | 634367 - SCREW |
$12.99
|
|
| 39 | 944440 | 944440 - BOLT |
$2.99
|
|
| 40 | 625872 | 625872 - FILTER, FUEL |
$28.99
|
|
| 41 | 597949 | 597949 - GROMMET |
$18.99
|
|
| 42 | 597948 | 597948 - USE: 649366 |
$2.99
|
|
| 43 | 625873 | 625873 - TUBE |
$24.99
|
|
| 44 | 625874 | 625874 - TUBE(3X6X130L) |
$13.99
|
|
| 45 | 840260 | 840260 - CARB GASKET/DIAPHRAG |
$26.99
|
