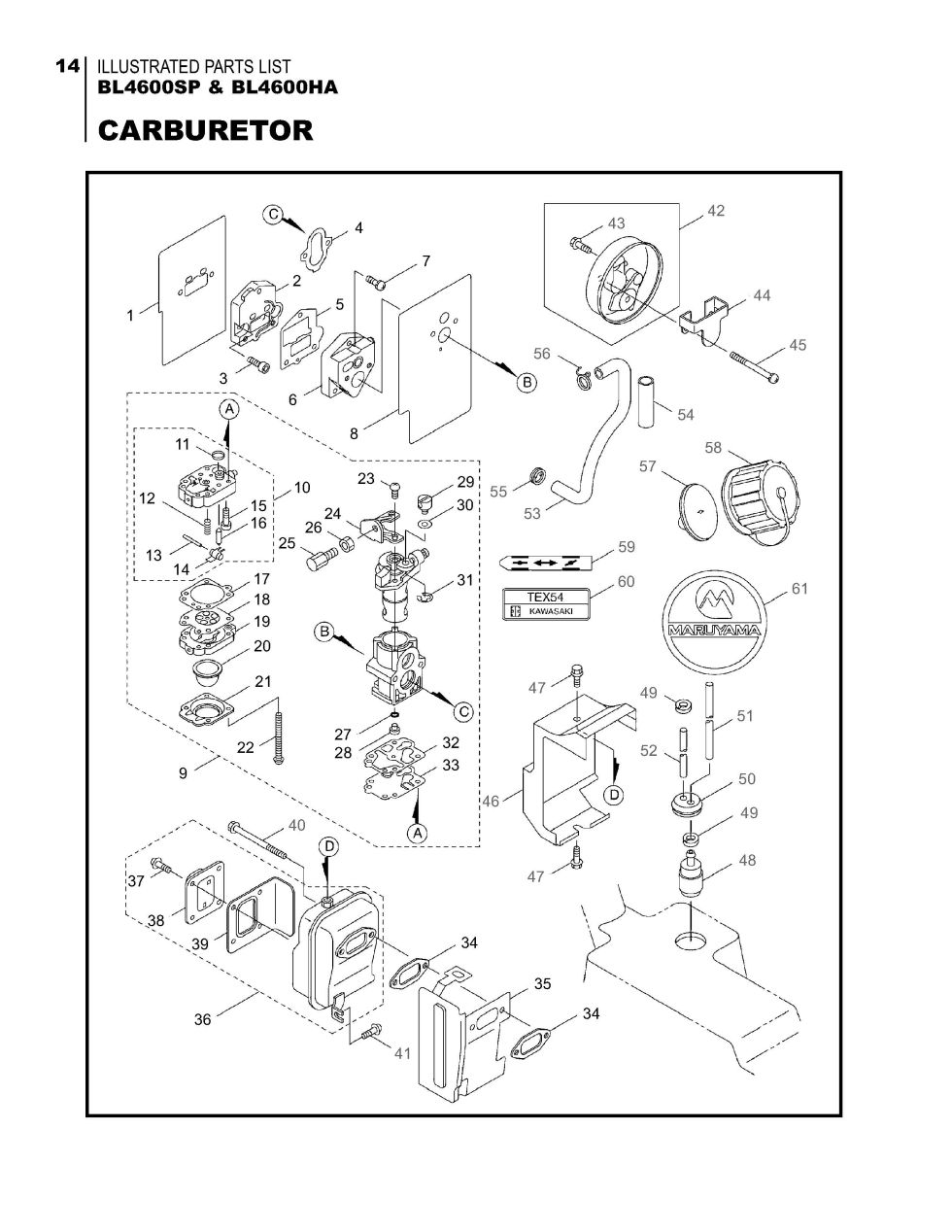

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4600SP and BL4600HA. You have selected the Carburetor diagram for the Maruyama BL4600SP and BL4600HA Blowers. Below you will find an interactive part diagram for the BL4600SP and BL4600HA Carburetor. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4600SP and BL4600HA parts not shown in this diagram you may select from one of the other BL4600SP and BL4600HA part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 634352 634352 - GASKET
$16.99
2 634355 634355 - PLATE
$34.99
3 634358 634358 - BOLT
$2.99
4 634351 634351 - GASKET
$28.99
5 634349 634349 - GASKET
$15.99
6 634354 634354 - REED VALVE ASSY
$66.99
7 579565 579565 - SCREW
$2.99
8 634353 634353 - GASKET
$20.99
9 634827 634827 - CARBURETOR ASSY
$134.99
10 626812 626812 - USE: 626822
$45.99
11 624430 624430 - FILTER
$23.99
12 624434 624434 - SPRING
$13.99
13 624433 624433 - PIN
$8.99
14 624429 624429 - LEVER
$19.99
15 624432 624432 - SCREW
$11.99
16 624431 624431 - FLOAT VALVE
$18.99
17 598407 598407 - USE: 262993
$7.99
18 634357 634357 - DIAPHRAGM
$29.99
19 598413 598413 - BODY
$79.99
20 577191 577191 - USE: 261874
$15.99
21 598409 598409 - COVER, PRIMER PUMP
$27.99
22 598417 598417 - SCREW
$2.99
23 577179 577179 - SCREW
$8.99
24 624525 624525 - BRACKET
$35.99
25 598415 598415 - ARM
$21.99
26 624530 624530 - USE: 261878
$2.99
27 577182 577182 - USE: 261871
$8.99
28 628092 628092 - MAIN JET #52
$26.99
30 624532 624532 - WASHER
$7.99
31 577185 577185 - DIAPHRAGM
$18.99
32 634350 634350 - GASKET
$18.99
34 579566 579566 - GASKET
$15.99
35 634364 634364 - MUFFLER COVER
$27.99
36 634829 634829 - MUFFLER ASSY
$143.99
37 634366 634366 - SCREW
$2.99
38 634828 634828 - SPARK ARRESTER
$30.99
39 634360 634360 - GASKET
$12.99
40 577390 577390 - USE: 944440
$2.99
41 943276 943276 - SCREW
$2.99
42 634359 634359 - AIR FILTER CASE ASSY
$21.99
43 628550 628550 - SCREW
$2.99
44 634361 634361 - BAFFLE
$13.99
45 634367 634367 - SCREW
$12.99
46 634365 634365 - MUFFLER COVER
$34.99
47 944981 944981 - BOLT
$2.99
48 625872 625872 - FILTER, FUEL
$28.99
49 597948 597948 - USE: 649366
$2.99
50 597949 597949 - GROMMET
$18.99
51 625873 625873 - TUBE
$24.99
52 625874 625874 - TUBE(3X6X130L)
$13.99
53 634370 634370 - TUBE
$16.99
54 634371 634371 - TUBE
$5.99
55 634830 634830 - CLAMP
$6.99
56 634369 634369 - NLA CLAMP (NO SUPERS
$5.99
57 630564 630564 - USE: 425442 (obsolete)
use part #425442
$29.99
58 625871 625871 - CAP ASSY
$26.99
59 598438 598438 - NLA LABEL
$2.99
60 626816 626816 - NLA DECAL
$2.99
61 634831 634831 - LABEL
$12.99
