 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

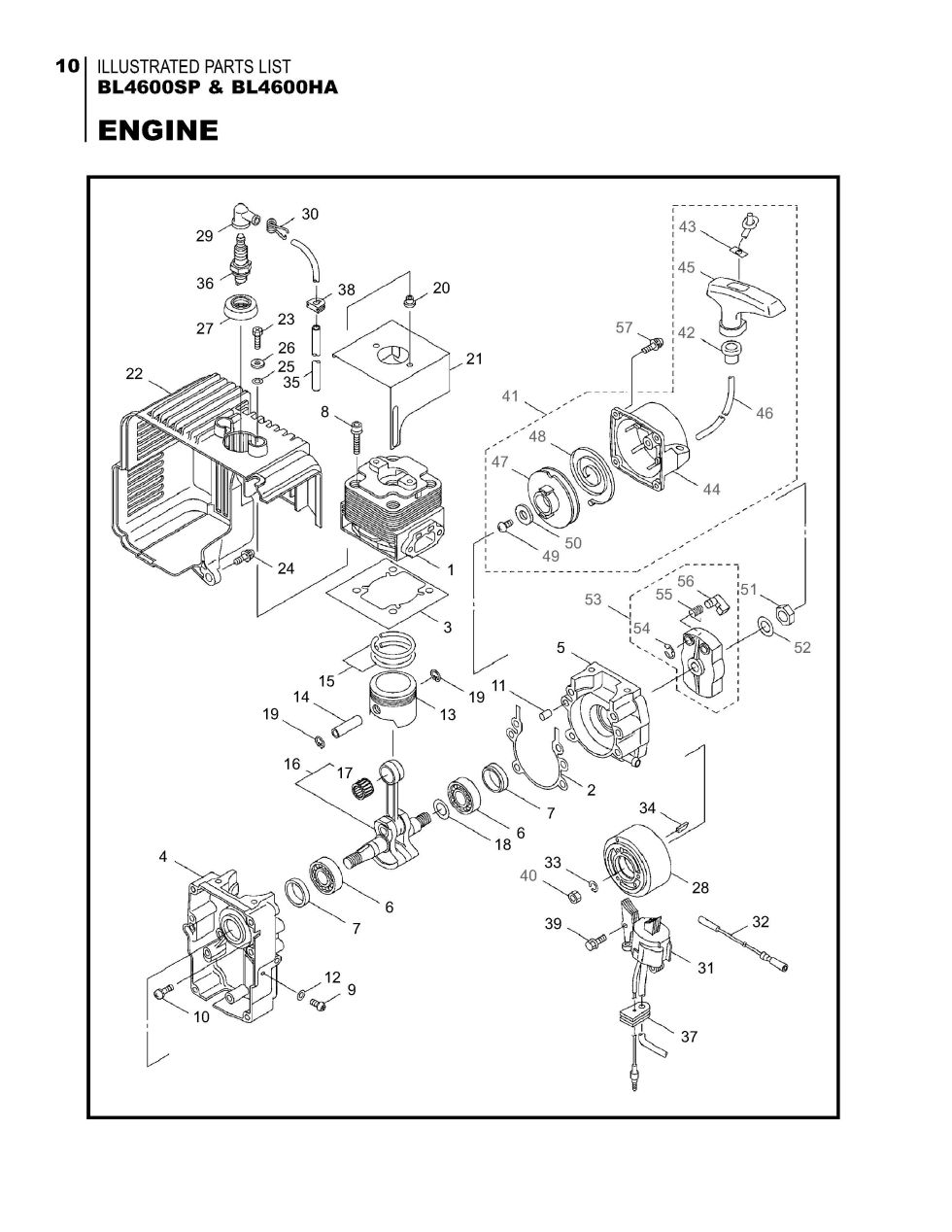

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4600HA and BL4600SP. You have selected the Engine diagram for the Maruyama BL4600HA and BL4600SP Blowers. Below you will find an interactive part diagram for the BL4600HA and BL4600SP Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4600HA and BL4600SP parts not shown in this diagram you may select from one of the other BL4600HA and BL4600SP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 634825 | 634825 - CYLINDER |
$134.99
|
|
| 2 | 570248 | 570248 - GASKET |
$5.99
|
|
| 3 | 634341 | 634341 - GASKET |
$21.99
|
|
| 4 | 634342 | 634342 - CRANKCASE |
$183.99
|
|
| 5 | 634343 | 634343 - CRANKCASE |
$183.99
|
|
| 6 | 597283 | 597283 - BEARING |
$29.99
|
|
| 7 | 071320 | 071320 - OIL SEAL |
$19.99
|
|
| 8 | 597284 | 597284 - BOLT |
$8.99
|
|
| 9 | 944619 | 944619 - SCREW |
$2.99
|
|
| 10 | 599880 | 599880 - SCREW |
$2.99
|
|
| 11 | 943349 | 943349 - DOWEL PIN |
$2.99
|
|
| 12 | 943893 | 943893 - GASKET |
$2.99
|
|
| 13 | 579537 | 579537 - USE: 634592 |
$45.99
|
|
| 14 | 599881 | 599881 - PIN, PISTON |
$23.99
|
|
| 15 | 943875 | 943875 - PISTON RING SET |
$34.99
|
|
| 16 | 626810 | 626810 - CRANKSHAFT ASSY |
$190.99
|
|
| 17 | 597289 | 597289 - USE: 943281 |
$19.99
|
|
| 18 (T=0.1) | 597285 | 597285 - SHIM (0.10) |
$2.99
|
|
| 18 (T=0.2) | 597287 | 597287 - SHIM (0.40) |
$2.99
|
|
| 18 (T=0.6) | 597288 | 597288 - SHIM (0.60) |
$2.99
|
|
| 19 | 943307 | 943307 - SNAP RING |
$2.99
|
|
| 20 | 630053 | 630053 - INSULATOR |
$11.99
|
|
| 21 | 634826 | 634826 - SHROUD |
$20.99
|
|
| 22 | 121787 | 121787 - SHROUD |
$66.99
|
|
| 23 | 573307 | 573307 - BOLT |
$2.99
|
|
| 24 | 580184 | 580184 - SCREW |
$2.99
|
|
| 25 | 621123 | 621123 - WASHER |
$2.99
|
|
| 26 | 575415 | 575415 - NLA WASHER |
$6.99
|
|
| 27 | 573289 | 573289 - COVER |
$9.99
|
|
| 28 | 634346 | 634346 - FLYWHEEL |
$104.99
|
|
| 29 | 591532 | 591532 - SPARK PLUG CAP |
$19.99
|
|
| 30 | 591533 | 591533 - SPRING |
$2.99
|
|
| 31 | 634347 | 634347 - IGNITION COIL ASSY |
$116.99
|
|
| 32 | 597263 | 597263 - LEAD WIRE |
$19.99
|
|
| 33 | 943924 | 943924 - WASHER |
$2.99
|
|
| 34 | 998409 | 998409 - KEY |
$12.99
|
|
| 35 | 998411 | 998411 - TUBE |
$2.99
|
|
| 36 | 626811 | 626811 - NLA SPARK PLUG BPMR7 |
$25.99
|
|
| 37 | 597293 | 597293 - GROMMET |
$10.99
|
|
| 38 | 634348 | 634348 - GROMMET |
$5.99
|
|
| 39 | 943457 | 943457 - BOLT |
$2.99
|
|
| 40 | 998410 | 998410 - NUT |
$6.99
|
|
| 41 | 579570 | 579570 - RECOIL STARTER ASSY |
$88.99
|
|
| 42 | 998438 | 998438 - ROPE GUIDE |
$17.99
|
|
| 43 | 944502 | 944502 - WASHER |
$8.99
|
|
| 44 | 579568 | 579568 - RECOIL CASE |
$31.99
|
|
| 45 | 998437 | 998437 - RECOIL STARTER HANDL |
$27.99
|
|
| 46 | 579572 | 579572 - ROPE |
$15.99
|
|
| 47 | 579571 | 579571 - RECOIL REEL |
$27.99
|
|
| 48 | 572955 | 572955 - SPRING |
$31.99
|
|
| 49 | 944801 | 944801 - USE: 570720 |
$2.99
|
|
| 50 | 579574 | 579574 - WASHER |
$2.99
|
|
| 51 | 943173 | 943173 - NUT |
$2.99
|
|
| 52 | 071190 | 071190 - WASHER |
$2.99
|
|
| 53 | 579569 | 579569 - STARTER PAWL ASSY |
$18.99
|
|
| 54 | 944226 | 944226 - USE: 13525 |
$2.99
|
|
| 55 | 579573 | 579573 - RETURN SPRING |
$12.99
|
|
| 56 | 572938 | 572938 - PAWL |
$17.99
|
|
| 57 | 624845 | 624845 - SCREW M4X16 |
$2.99
|
