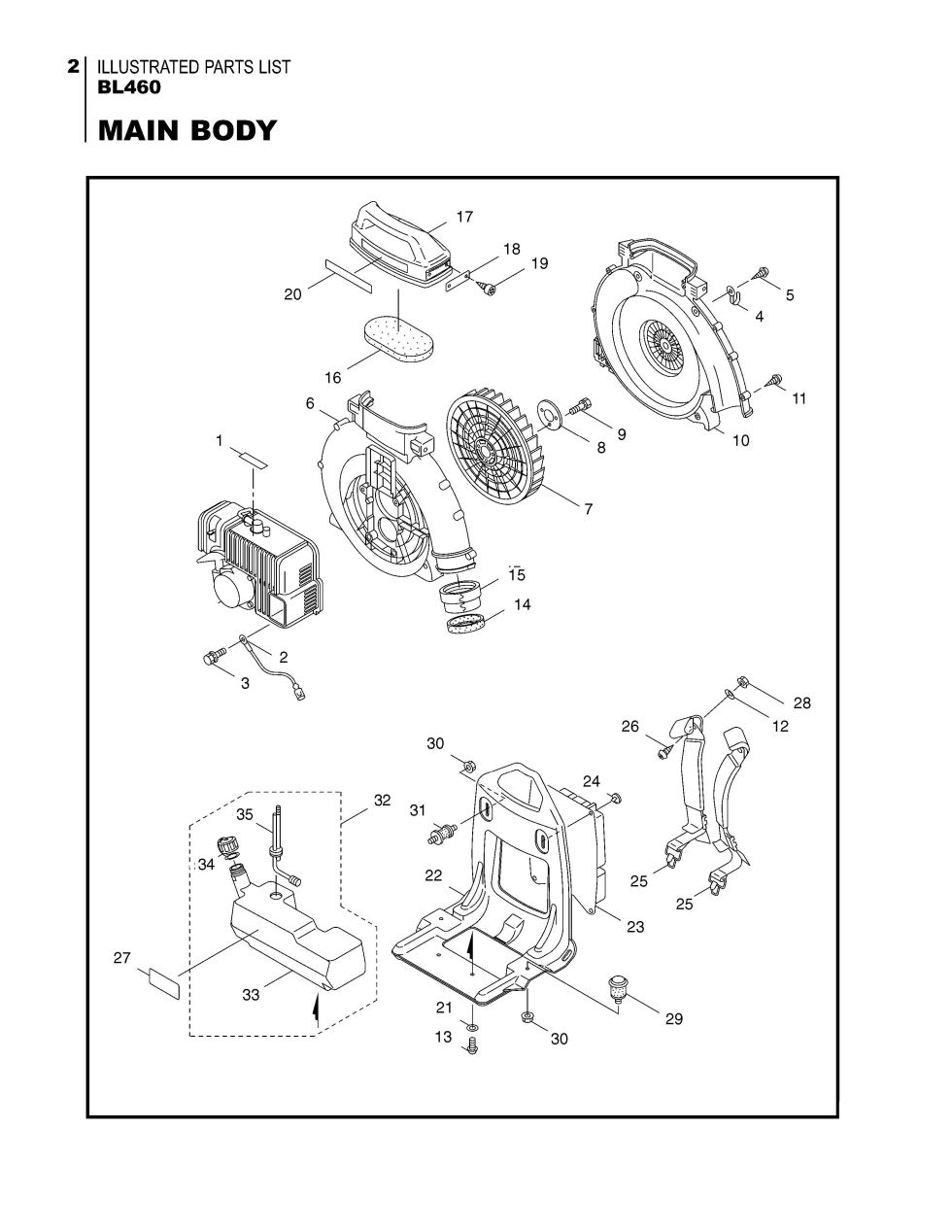

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL460. You have selected the Main Body diagram for the Maruyama BL460 Blowers. Below you will find an interactive part diagram for the BL460 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL460 parts not shown in this diagram you may select from one of the other BL460 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 266959 | 266959 - LABEL |
$6.99
|
|
| 2 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 3 | 092543 | 092543 - BOLT |
$2.99
|
|
| 4 | 109051 | 109051 - CLAMP |
$2.99
|
|
| 6 | 120512 | 120512 - FAN CASE |
$93.99
|
|
| 7 | 118724 | 118724 - FAN |
$68.99
|
|
| 8 | 118248 | 118248 - SS DOUGHNUT PLATE |
$5.99
|
|
| 9 | 096056 | 096056 - BOLT |
$2.99
|
|
| 10 | 119387 | 119387 - FAN CASE (S) |
$87.99
|
|
| 11 | 089538 | 089538 - SCREW |
$2.99
|
|
| 12 | 100603 | 100603 - USE: 127224 |
$2.99
|
|
| 13 | 081414 | 081414 - SCREW |
$2.99
|
|
| 14 | 119161 | 119161 - BAND |
$7.99
|
|
| 15 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 16 | 112028 | 112028 - PACKING |
$11.99
|
|
| 17 | 123337 | 123337 - HANDLE |
$26.99
|
|
| 18 | 120320 | 120320 - PLATE |
$5.99
|
|
| 19 | 123194 | 123194 - TAPPING SCREW(M6X18) |
$2.99
|
|
| 20 | 123338 | 123338 - MODEL LABEL |
$2.99
|
|
| 21 | 015479 | 015479 - WASHER |
$2.99
|
|
| 23 | 119177 | 119177 - PAD |
$31.99
|
|
| 24 | 840543 | 840543 - NLA PAD RETAINER |
$2.99
|
|
| 25 | 123106 | 123106 - NLA KNAPSACK BAN |
$18.99
|
|
| 26 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 27 | 121132 | 121132 - LABEL(BP400) |
$5.99
|
|
| 28 | 550132 | 550132 - USE: 127237 |
$2.99
|
|
| 30 | 109704 | 109704 - USE: 127228 |
$2.99
|
|
| 31 | 026223 | 026223 - BUFFER |
$17.99
|
|
| 32 | 119388 | 119388 - FUEL TANK ASSY |
$61.99
|
|
| 33 | 120154 |
120154 - FUEL TANK (obsolete) use part #127673 |
$31.99
|
|
| 34 | 119390 | 119390 - FUEL CAP ASSY |
$26.99
|
|
| 35 | 119391 | 119391 - FUEL FILTER |
$39.99
|
