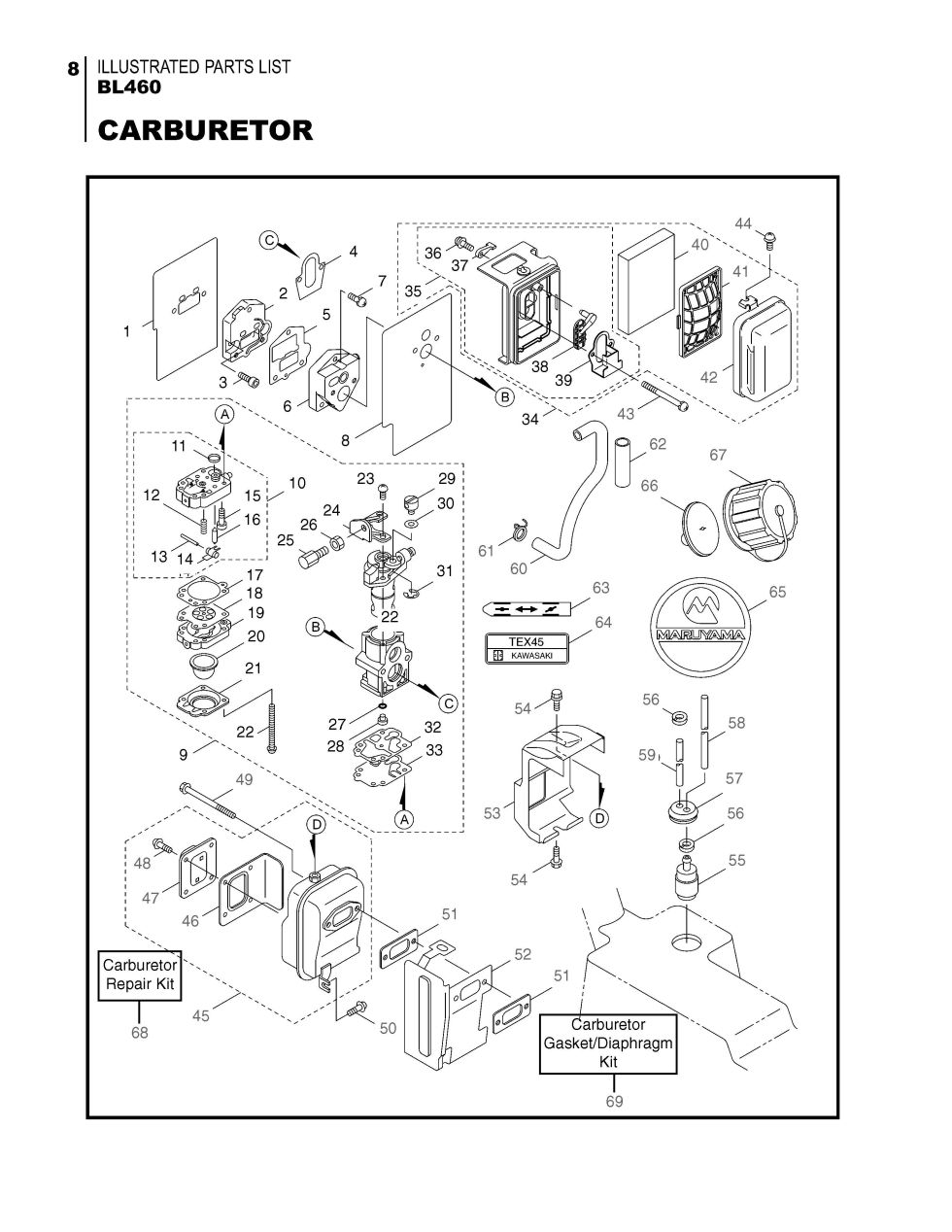

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL460. You have selected the Carburetor diagram for the Maruyama BL460 Blowers. Below you will find an interactive part diagram for the BL460 Carburetor. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL460 parts not shown in this diagram you may select from one of the other BL460 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 634352 | 634352 - GASKET |
$16.99
|
|
| 2 | 634355 | 634355 - PLATE |
$34.99
|
|
| 3 | 634358 | 634358 - BOLT |
$2.99
|
|
| 4 | 641295 | 641295 - GASKET |
$11.99
|
|
| 5 | 634349 | 634349 - GASKET |
$15.99
|
|
| 6 | 634354 | 634354 - REED VALVE ASSY |
$66.99
|
|
| 7 | 579565 | 579565 - SCREW |
$2.99
|
|
| 8 | 634353 | 634353 - GASKET |
$20.99
|
|
| 9 | 641296 | 641296 - NLA CARBURETOR ASSY. |
$74.99
|
|
| 10 | 626822 | 626822 - BODY |
$61.99
|
|
| 11 | 624430 | 624430 - FILTER |
$23.99
|
|
| 12 | 624434 | 624434 - SPRING |
$13.99
|
|
| 13 | 624433 | 624433 - PIN |
$8.99
|
|
| 14 | 624429 | 624429 - LEVER |
$19.99
|
|
| 15 | 624432 | 624432 - SCREW |
$11.99
|
|
| 16 | 624431 | 624431 - FLOAT VALVE |
$18.99
|
|
| 17 | 262993 | 262993 - GASKET |
$10.99
|
|
| 18 | 634357 | 634357 - DIAPHRAGM |
$29.99
|
|
| 19 | 598413 | 598413 - BODY |
$79.99
|
|
| 20 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 21 | 598409 | 598409 - COVER, PRIMER PUMP |
$27.99
|
|
| 22 | 262996 | 262996 - SCREW |
$2.99
|
|
| 23 | 577179 | 577179 - SCREW |
$8.99
|
|
| 24 | 624525 | 624525 - BRACKET |
$35.99
|
|
| 25 | 598418 | 598418 - SCREW |
$14.99
|
|
| 26 | 261878 | 261878 - NUT |
$2.99
|
|
| 27 | 261871 | 261871 - O-RING |
$2.99
|
|
| 28 | 628092 | 628092 - MAIN JET #52 |
$26.99
|
|
| 29 | 598415 | 598415 - ARM |
$21.99
|
|
| 30 | 624532 | 624532 - WASHER |
$7.99
|
|
| 31 | 577175 | 577175 - SNAP RING |
$8.99
|
|
| 32 | 634350 | 634350 - GASKET |
$18.99
|
|
| 33 | 577185 | 577185 - DIAPHRAGM |
$18.99
|
|
| 34 | 642042 | 642042 - AIR FILTER ASSY. |
$109.99
|
|
| 35 | 642039 | 642039 - AIR FILTER CASE ASSY |
$47.99
|
|
| 36 | 628550 | 628550 - SCREW |
$2.99
|
|
| 37 | 640943 | 640943 - LEVER |
$12.99
|
|
| 38 | 640944 | 640944 - NLA MACHINED DISC |
$10.99
|
|
| 39 | 640945 | 640945 - BAFFLE |
$14.99
|
|
| 40 | 642040 | 642040 - AIR FILTER ELEMENT |
$30.99
|
|
| 41 | 640946 | 640946 - GRATE |
$16.99
|
|
| 42 | 642041 | 642041 - CAP |
$23.99
|
|
| 43 | 634367 | 634367 - SCREW |
$12.99
|
|
| 44 | 642043 | 642043 - SCREW |
$2.99
|
|
| 45 | 640947 | 640947 - NLA MUFFLER ASSY. |
$212.99
|
|
| 46 | 634360 | 634360 - GASKET |
$12.99
|
|
| 47 | 634828 | 634828 - SPARK ARRESTER |
$30.99
|
|
| 48 | 634366 | 634366 - SCREW |
$2.99
|
|
| 49 | 944440 | 944440 - BOLT |
$2.99
|
|
| 50 | 943276 | 943276 - SCREW |
$2.99
|
|
| 51 | 579566 | 579566 - GASKET |
$15.99
|
|
| 52 | 634364 | 634364 - MUFFLER COVER |
$27.99
|
|
| 53 | 640948 | 640948 - NLA MUFFLER COVER |
$34.99
|
|
| 54 | 944981 | 944981 - BOLT |
$2.99
|
|
| 55 | 625872 | 625872 - FILTER, FUEL |
$28.99
|
|
| 56 | 597948 | 597948 - USE: 649366 |
$2.99
|
|
| 57 | 597949 | 597949 - GROMMET |
$18.99
|
|
| 58 | 625873 | 625873 - TUBE |
$24.99
|
|
| 59 | 625874 | 625874 - TUBE(3X6X130L) |
$13.99
|
|
| 60 | 641293 | 641293 - TUBE |
$23.99
|
|
| 61 | 641292 | 641292 - CLAMP |
$5.99
|
|
| 62 | 641294 | 641294 - TUBE(10X11X35L) |
$5.99
|
|
| 63 | 598438 | 598438 - NLA LABEL |
$2.99
|
|
| 64 | 626816 | 626816 - NLA DECAL |
$2.99
|
|
| 65 | 122852 | 122852 - NLA LABEL |
$2.99
|
|
| 66 | 630564 |
630564 - USE: 425442 (obsolete) use part #425442 |
$29.99
|
|
| 67 | 625871 | 625871 - CAP ASSY |
$26.99
|
|
| 68 | 840018 | 840018 - CARBURETOR REPAIR KI |
$27.99
|
|
| 69 | 840019 | 840019 - CARBURETOR DIAPHRAGM |
$20.99
|
