 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

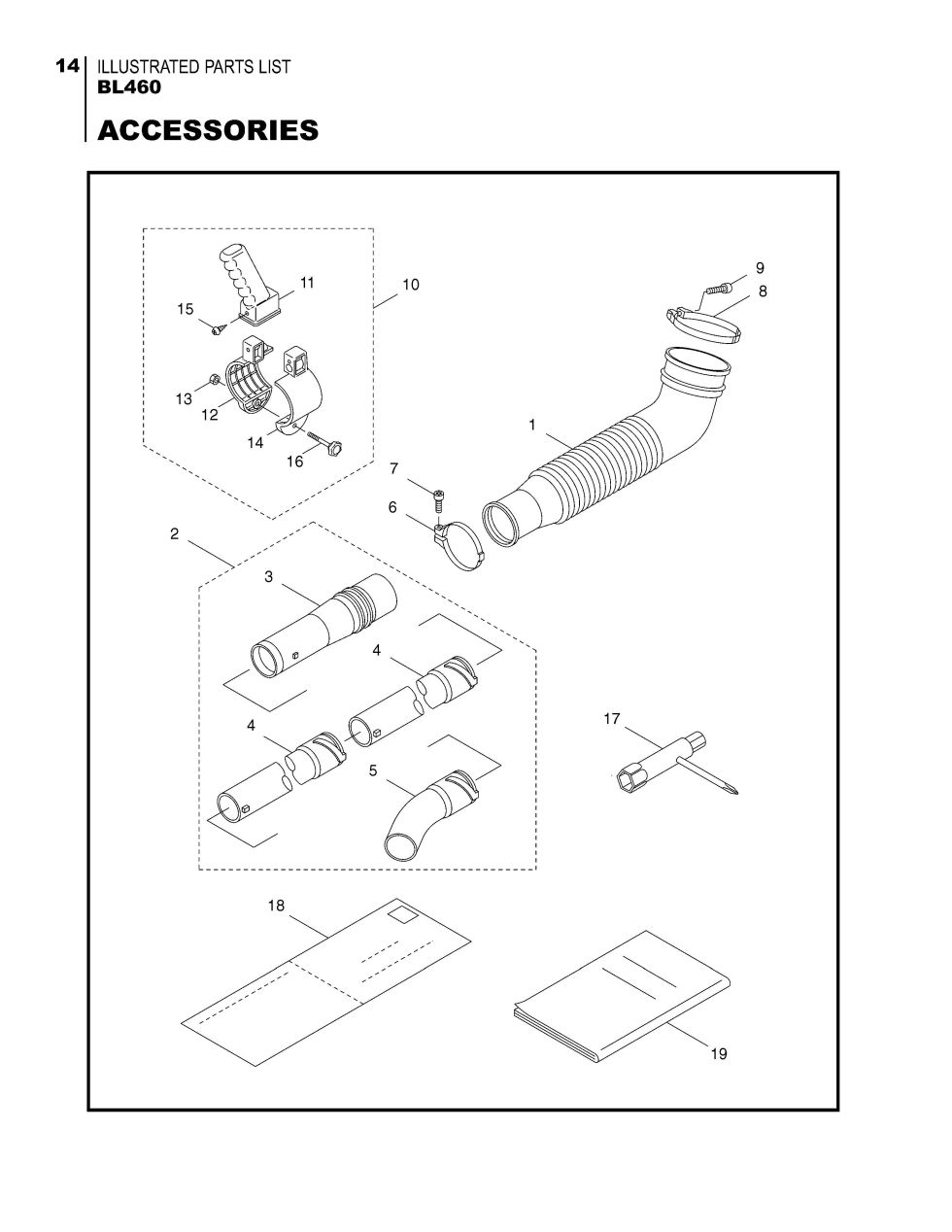

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL460. You have selected the Accessories diagram for the Maruyama BL460 Blowers. Below you will find an interactive part diagram for the BL460 Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL460 parts not shown in this diagram you may select from one of the other BL460 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 119186 | 119186 - FLEXIBLE PIPE |
$34.99
|
|
| 2 | 121238 | 121238 - BLOWER TUBE ASSY |
$27.99
|
|
| 3 | 121242 | 121242 - SWIVEL PIPE |
$28.99
|
|
| 4 | 121243 | 121243 - BLOWER TUBE |
$30.99
|
|
| 5 | 121244 | 121244 - BENT PIPE |
$21.99
|
|
| 6 | 119525 | 119525 - HOSE BAND |
$5.99
|
|
| 7 | 081415 | 081415 - SCREW M5X.8X16 |
$2.99
|
|
| 8 | 119523 | 119523 - HOSE BAND |
$5.99
|
|
| 9 | 081417 | 081417 - SCREW |
$2.99
|
|
| 10 | 639506 | 639506 - GRIP ASSY (SMALL) |
$24.99
|
|
| 11 | 122629 | 122629 - GRIP |
$9.99
|
|
| 12 | 123132 | 123132 - BAND |
$2.99
|
|
| 13 | 081031 | 081031 - NUT M6 |
$2.99
|
|
| 14 | 123134 | 123134 - BAND |
$2.99
|
|
| 15 | 120319 | 120319 - USE: 127300 |
$2.99
|
|
| 16 | 122610 | 122610 - KNOB BOLT |
$5.99
|
|
| 17 | 210418 | 210418 - BOX WRENCH/DRIVER |
$16.99
|
